ValueJet 1304 Service manual
4-119 AP-74109 Rev 1.1

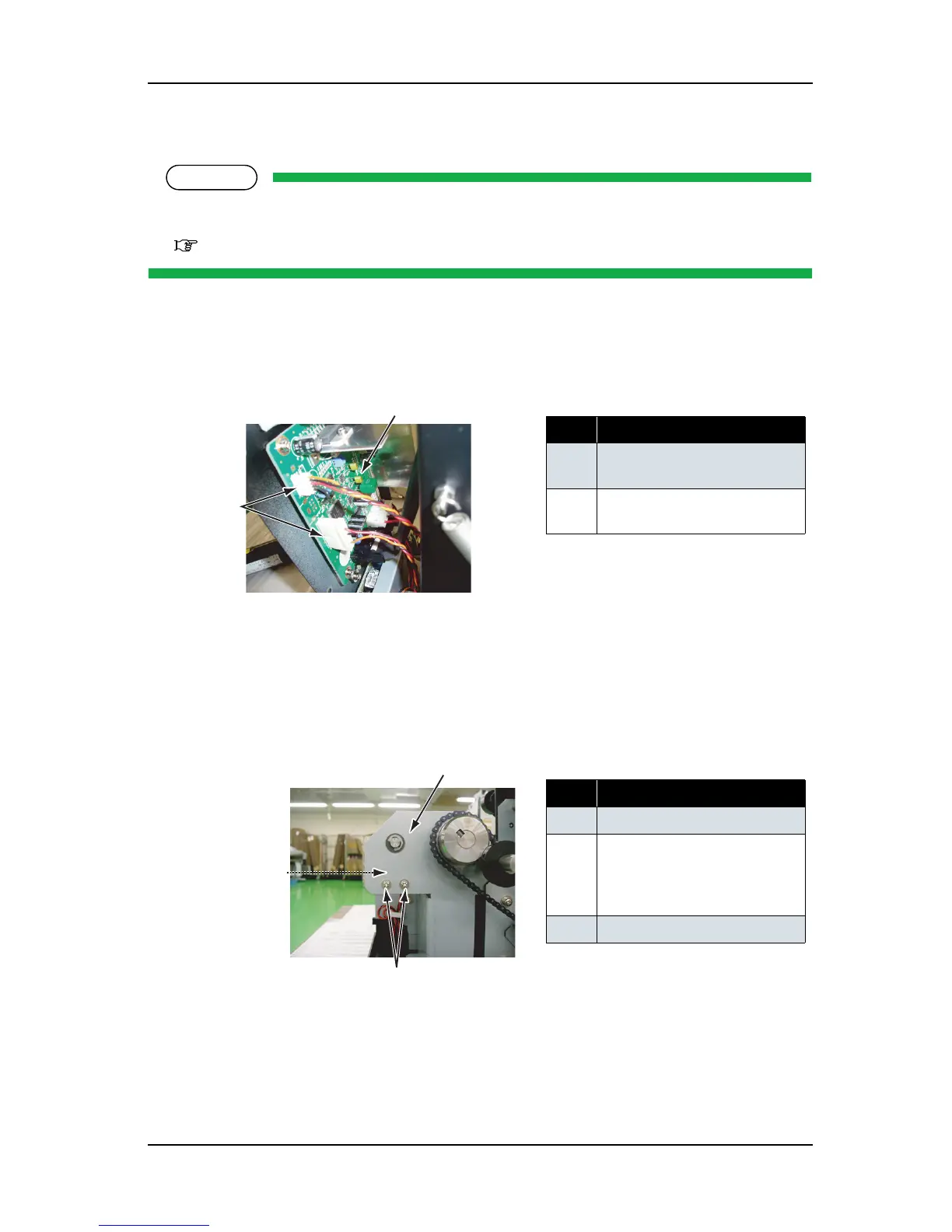

(2) Replacing CR_HP Sensor, Lever Sensor
NOTE
Remove the screws that retains the board chassis before replacing the CR_HP sensor or the lever
sensor.
"(1) Removing Board Chassis" p.4-109
1. Remove the cable of the W_ON sensor relay assembly and W_OFF sensor relay assembly from the
connector to the VJ take up unit CNT board assembly.
2. Remove the screws (round head spring screw finishing M3 × 6: 2 pieces) that retains the sensor mounting
plate (87NX) on the right of the inside chassis.
表 4-146
No. Part name
1 VJ take up unit CNT board
assembly
2 W_ON sensor relay assembly,
W_OFF sensor relay assembly
表 4-147
No. Part name
1 Sensor mounting plate (87NX)
2 Screws that retains the sensor
mounting plate (87NX) (round
head spring screw finishing M3
× 6)
3 Right of the inside chassis
1
2
3
1
2
(Rear side)
