ValueJet 1304 Service manual
AP-74109 Rev 1.1 4-120

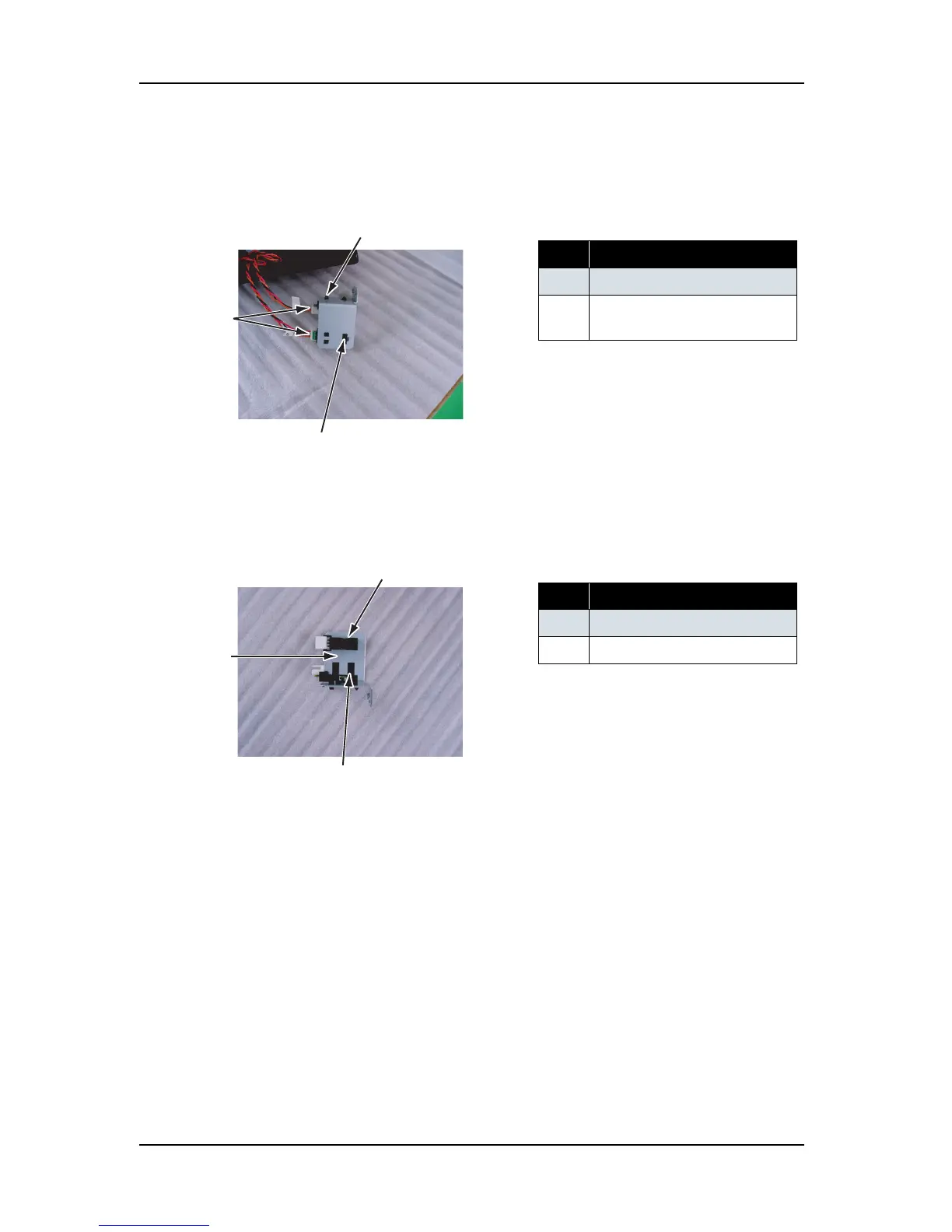

3. Detach the W_ON sensor relay assembly and the W_OFF sensor relay assembly from the CR_HP sensor
and lever sensor.
4. Detach the CR_HP sensor and the lever sensor from the sensor mounting plate (87NX).
5. To reassemble the unit, reverse the removal procedure.
表 4-148
No. Part name
1 CR_HP sensor, the lever sensor
2 W_ON sensor relay assembly,
W_OFF sensor relay assembly
表 4-149
No. Part name
1 Sensor mounting plate (87NX)
2 CR_HP sensor, the lever sensor
1
1
2
2
1
2
