MUTOH ValueJet User Manual

ValueJet 1304 Service manual
7-33 AP-74109 Rev 1.1
CAUTION
During the operation, note the following points.
• The PF speed reduction belt tension specification is 40.0 ± 2.0N
• Since the specification includes the tension gauge error (1.5N), adjust to 40.0±0.5N in
actual adjustment, setting the error limit to half of one graduation (0.5N).

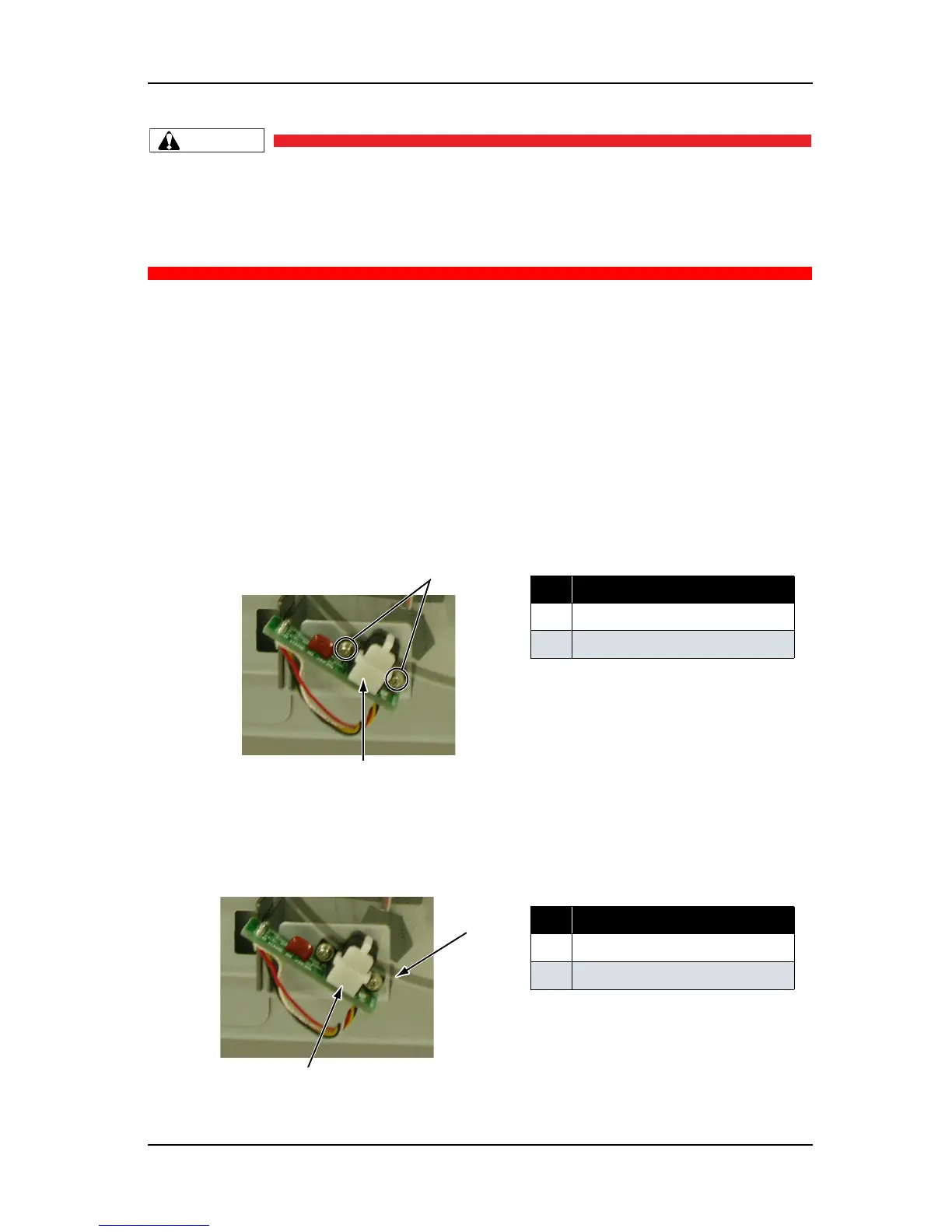

7.5 PF Encoder Assembly Position Adjustment
This section describes the procedure to adjust the PF encoder assembly.
After replacing the PF encoder, adjust the PF encoder position.
7.5.1 Adjustment Procedure
To adjust PF encoder, follow the steps below.
1. Loosen the screws retaining the PF encoder assembly.
2. Align the PF encoder assembly so that the corner covers the periphery of the PF encoder scale, then fix
the PF encoder assembly with screws.
No. Part name
1 PF encoder assembly
2
PF encoder scale
No. Part name
1 PF encoder assembly
2
PF encoder scale




