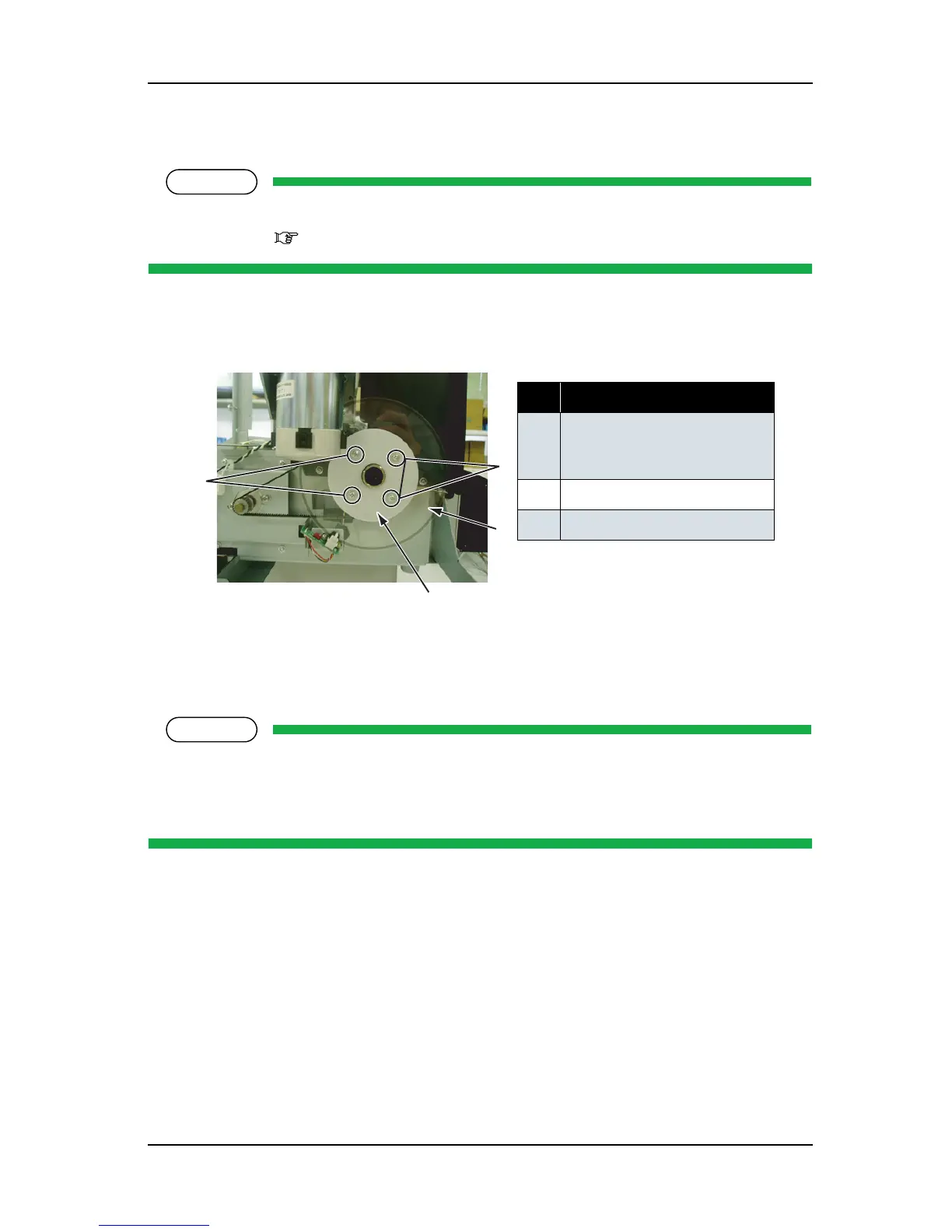

4.4.3 Replacing PF_ENC Scale
NOTE
Before replacing parts in the PF_ENC scale assembly, remove the following parts.
•L side cover: "4.2.3 Removing L Side Cover" p.4-10
1. Remove the ENC holder-retaining screw (tapping screw M3 × 6, P tight cup).
2. Replace the PF scale.
3. To reassemble the unit, reverse the removal procedure.
NOTE
When handling the PF scale, note the following.
• Do not damage or bend the PF scale. Do not touch the peripheral surface of the PF scale.
• Make sure that no double-sided tape remains on the slit mounting flange.
4. Perform adjustments by following the instructions in "7.2 Adjustment Item" p.7-3.
表 4-56
No. Part name
1 ENC holder screw
(tapping screw M3
× 6, P tight
cup)
2
PF_ENC scale
3 ENC holder
2
1
3
1
