ValueJet 1304 Service manual
7-35 AP-74109 Rev 1.1

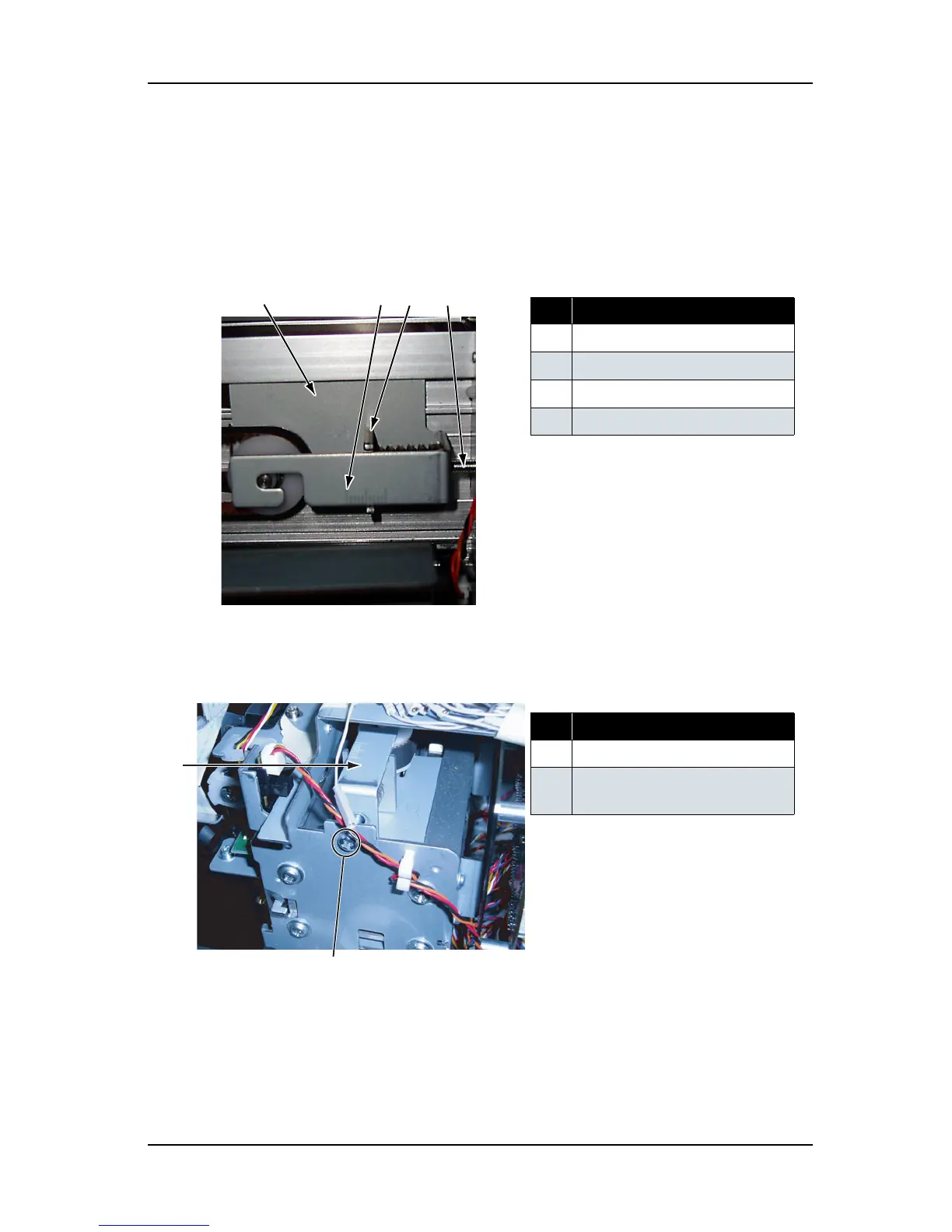

7.6 CR Belt Tension Adjustment
This section describes the procedure to adjust the tension of the CR belt.
When you have removed and installed the CR belt, adjust the CR belt tension.
1. Tighten the CR tension mounting shaft, and align the left side (viewed from the front of the printer) of
the graduation alignment pointer with the center line of graduations on the driven pulley base.
2. After adjustment, apply screw-locking agent to the screw head of the CR tension mounting shaft not to
loosen it.
No. Part name
1 Driven pulley base
2
Driven pulley base graduations
3
Graduation alignment pointer
4
CR tension mounting shaft
No. Part name
1 Driven pulley base graduations
2
CR tension mounting shaft screw
head
1
2
3
4
1
2
