ValueJet 1304 Service manual
7-43 AP-74109 Rev 1.1
7.10 PG Height Adjustment
This section describes the procedure to check the carriage height (distance from the platen).
7.10.1 Jigs and Tools
The following jigs and tools are required for carriage height (distance from the platen) check.
• PG height checking jig (VJ): JD-42806
TIP
"10.3 Jigs and Tools" p.10-3
7.10.2 Adjustment Procedure
Follow the steps below to adjust the platen height.

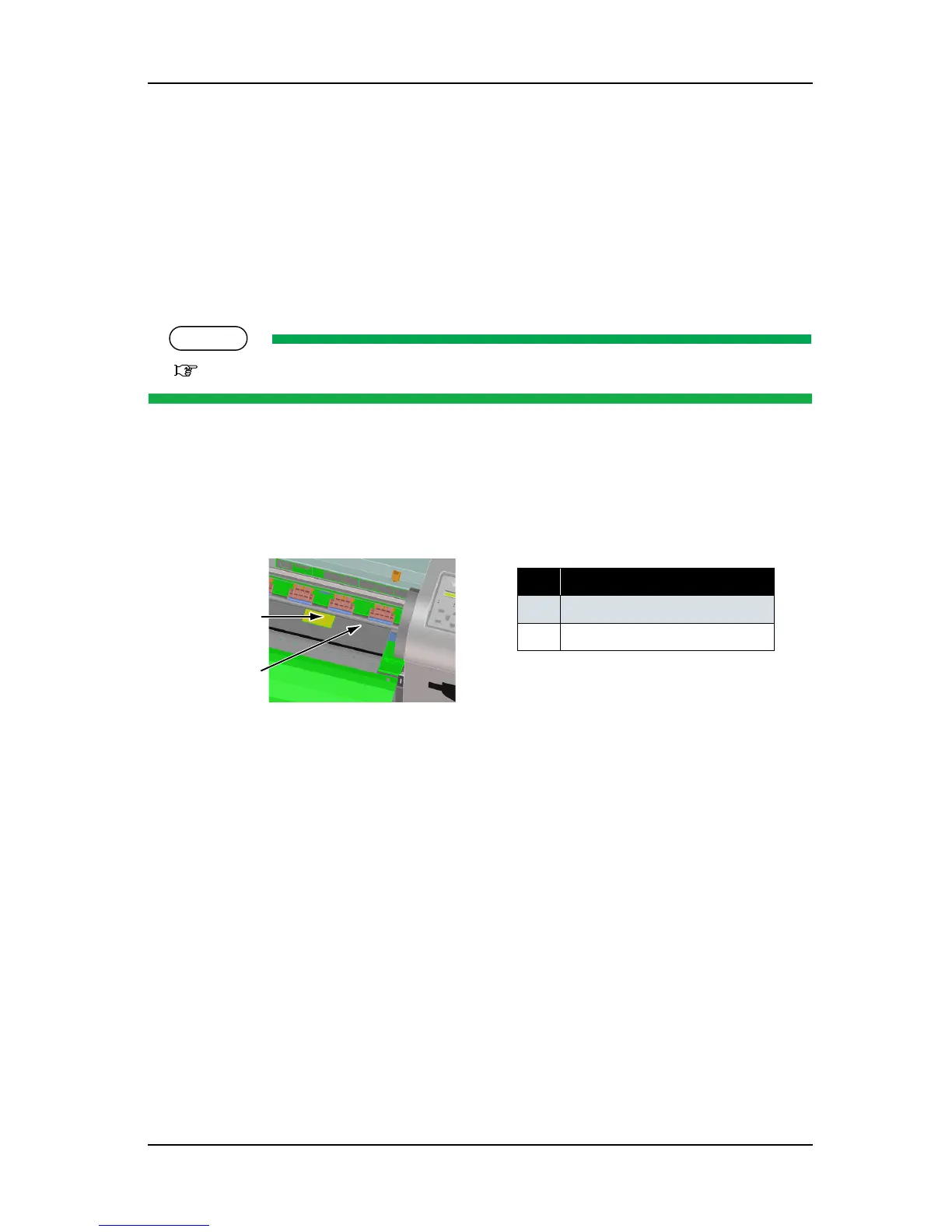

1. When moving the carriage, place the PG height checking jig onto the platen.
2. Move the carriage from the origin side while the head height adjusting lever is in “LOW”.
No. Part name
1
PG height checking jig
2
Platen


