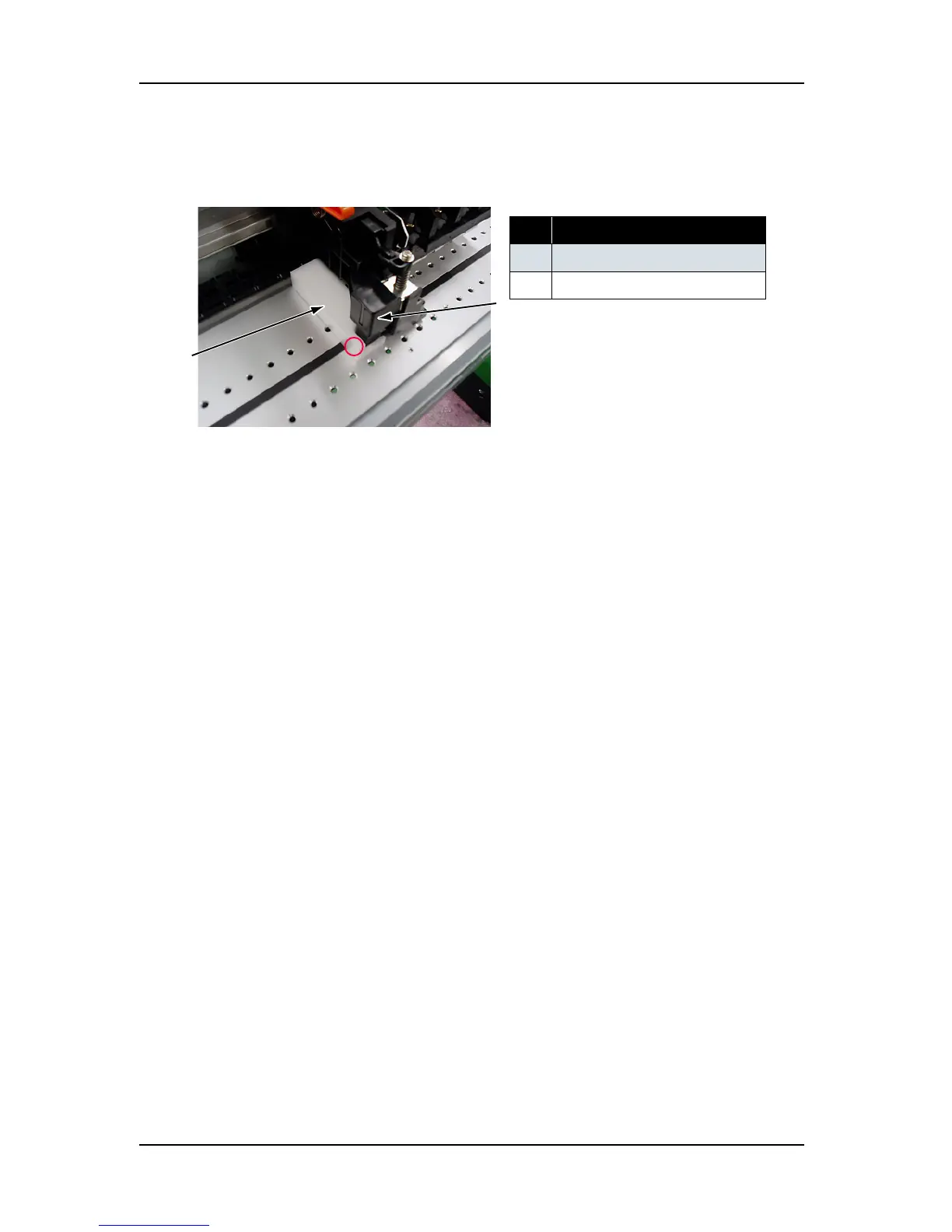

3. Place the cutter holder on the side face of the jig, set the cutter holder to the depression of the jig, and
hold the cutter holder down from above. Make sure that the part indicated by a circle in the figure holds
the cutter holder, fasten the tentatively-tightened screw fully and determine the cutter holder height.
No. Part name
1
Cutter holder
2
Cutter holder jig (VJ)
