MUTOH ValueJet User Manual

ValueJet 1304 Service manual
4-7 AP-74109 Rev 1.1

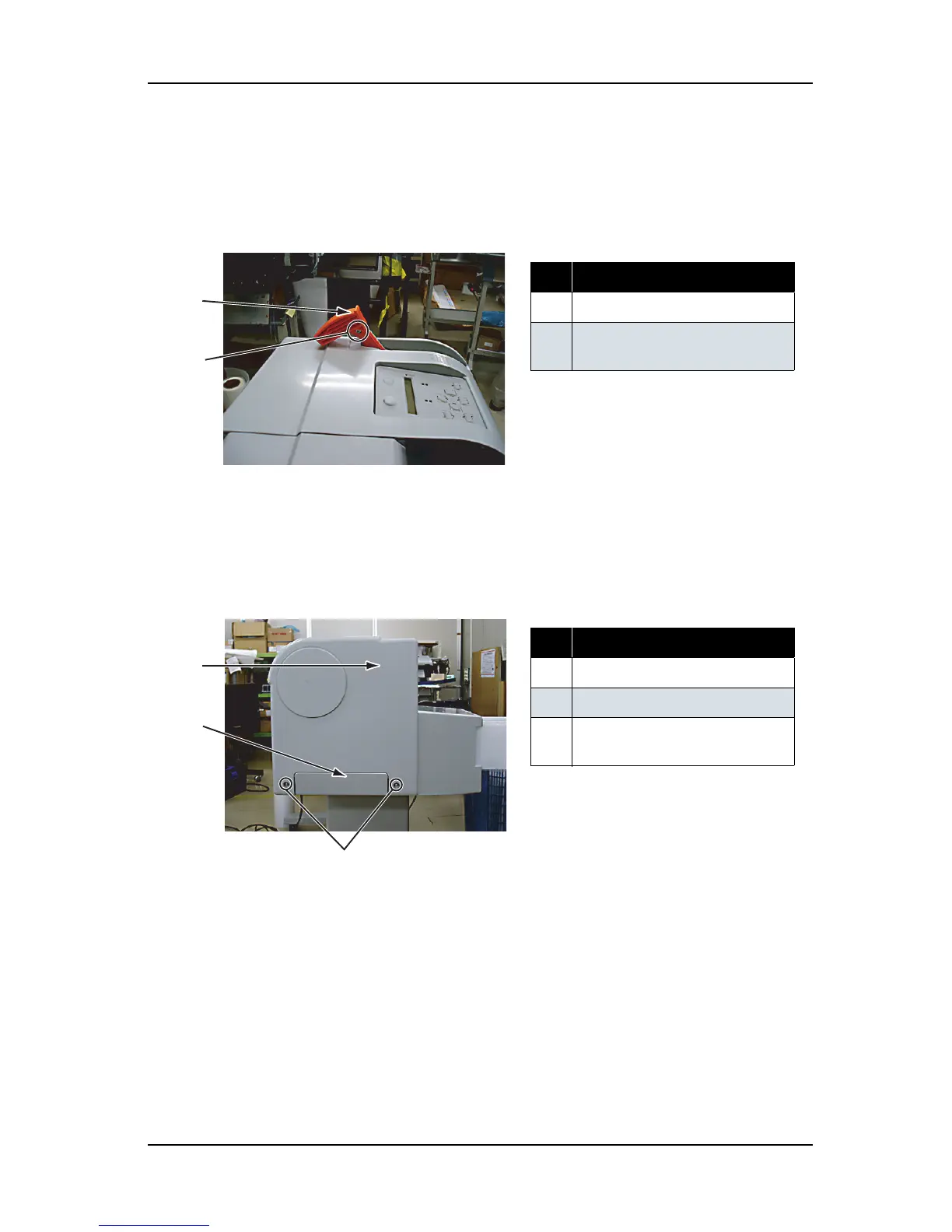

4.2.1 Removing R Side Cover
1. Move down the pressure lever backward.
2. Remove the pressure lever cap-retaining screw (M4 × 10, P tight binding: 1).
3. Remove the R side cover outer screw (Tapping screw M4
× 8, S tight cup: 2).
表 4-2
No. Part name
1 Pressure lever cap
2 Pressure lever cap screw
(M4
× 10, P tight binding)
表 4-3
No. Part name
1 R side cover
2 Waste fluid unit cover
3 R side cover outer screw
(M4
× 8, P tight cup)
1
2
1
2
3
