ValueJet 1304 Service manual
AP-74109 Rev 1.1 4-8

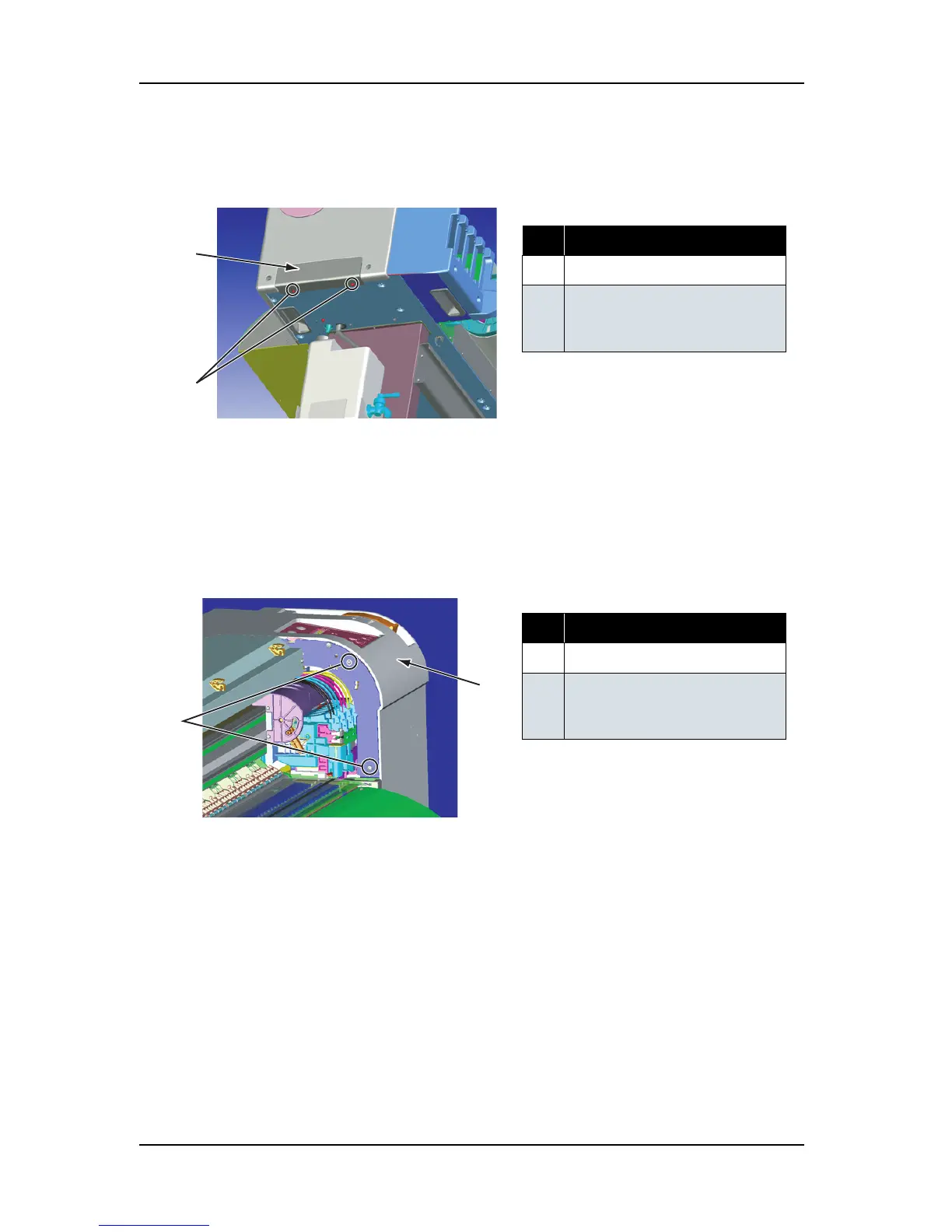

4. Remove the waste fluid unit cover-retaining screw (tapping screw M3 × 6, S tight cup: 2)
5. Remove the waste fluid unit cover.
6. Open the front cover.
7. Remove the R side cover inner screw (tapping screw M4
× 12, P tight binding black: 2).
表 4-4
No. Part name
1 Waste fluid cover
2 waste fluid unit cover-retaining
screw (Tapping screw M3
× 6, S
tight cup: 2)
表 4-5
No. Part name
1 R side cover
2 R side cover inner screw
(tapping screw M4
× 12, P tight
binding black)
1
2
2
1
