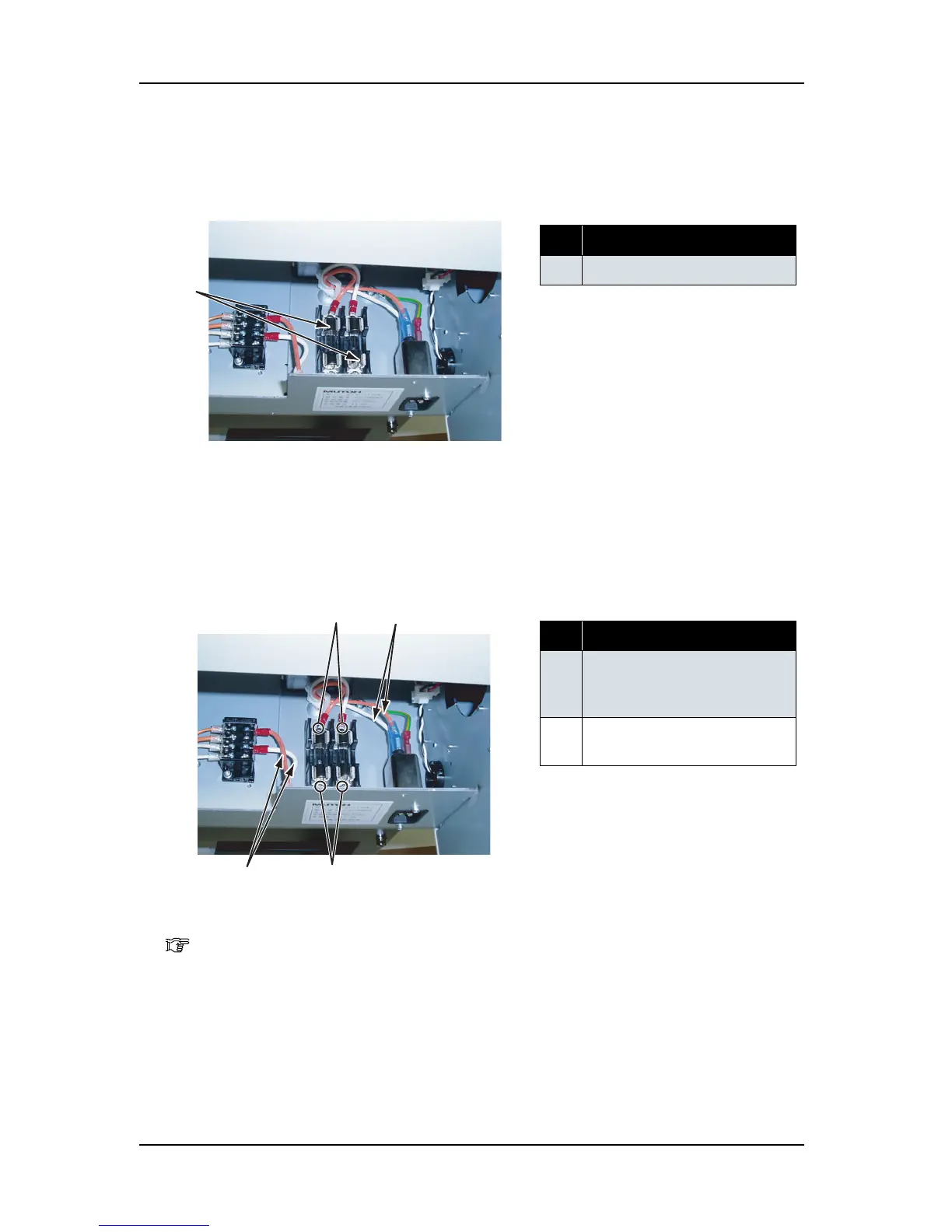

1. Pick up the fuse using a finger on the center of the part and remove it.
2. Replace the fuse.
3. Remove the two screws (pan head small screw M4
× 6) retaining the noise filter to fuse AC cable
assembly and fuse to terminal block AC cable assembly.
4. Remove the AC inlet.
"4.3.8 Replacing Inlet Assembly" p.4-41
5. Remove the noise filter to fuse AC cable assembly from AC inlet.
6. Replace the assembly.
表 4-43
No. Part name
1 Fuse
表 4-44
No. Part name
1 Screws retaining the fuse to
terminal block AC cable
assembly
2
Fuse to terminal block AC cable
assembly
1
2
1
1
2
