ValueJet 1304　Service manual
4-41 AP-74109 Rev 1.1
7. Remove the protect cover on the top of terminal block, then remove the screws retaining the fuse to
terminal block AC cable assembly to terminal block.
8. Replace the fuse to terminal block AC cable assembly.
9. To reassemble the unit, reverse the removal procedure.

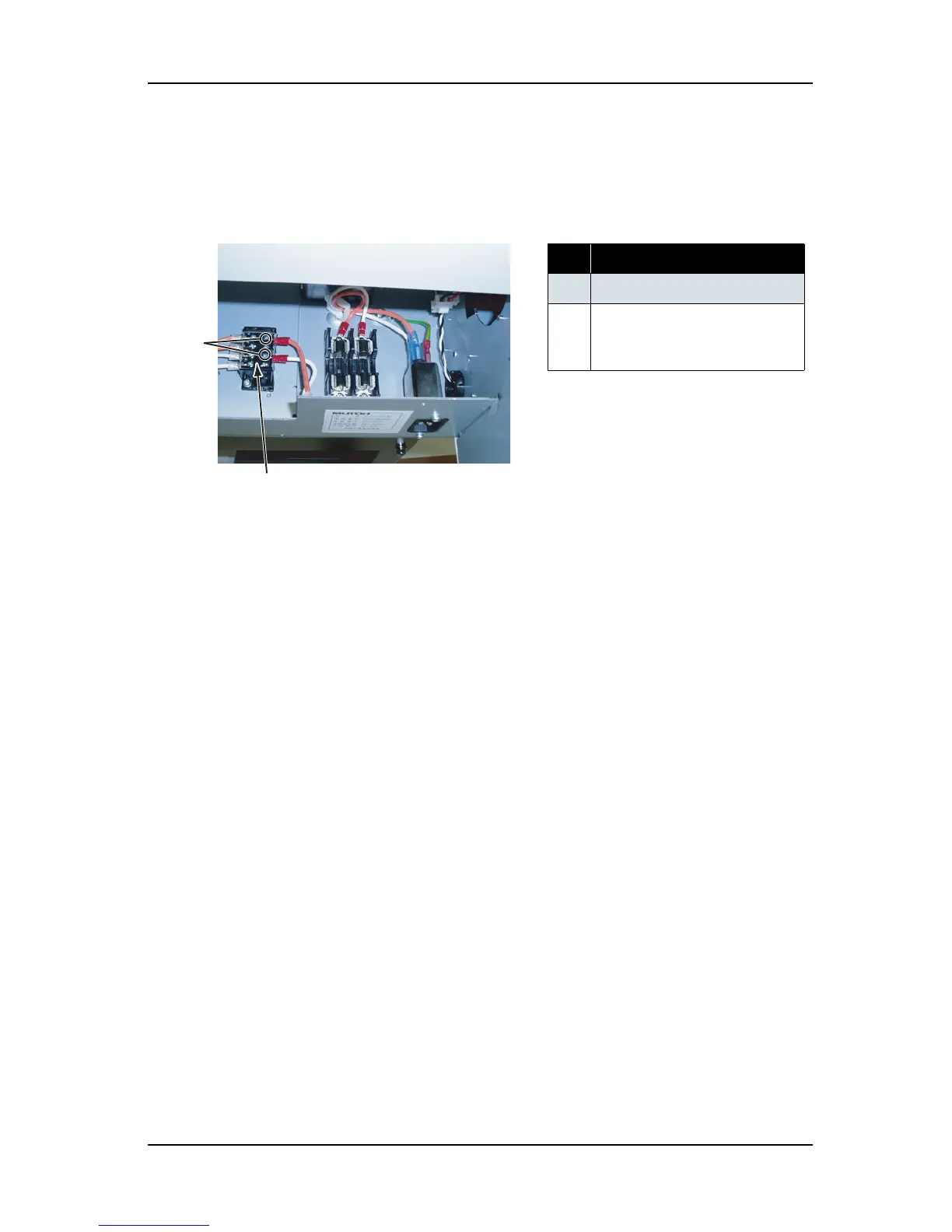

表 4-45
No. Part name
1 Protect cover of terminal block
2
Screws retaining the fuse to
terminal block AC cable
assembly
1
2
