ValueJet 1304　Service manual
7-37 AP-74109 Rev 1.1

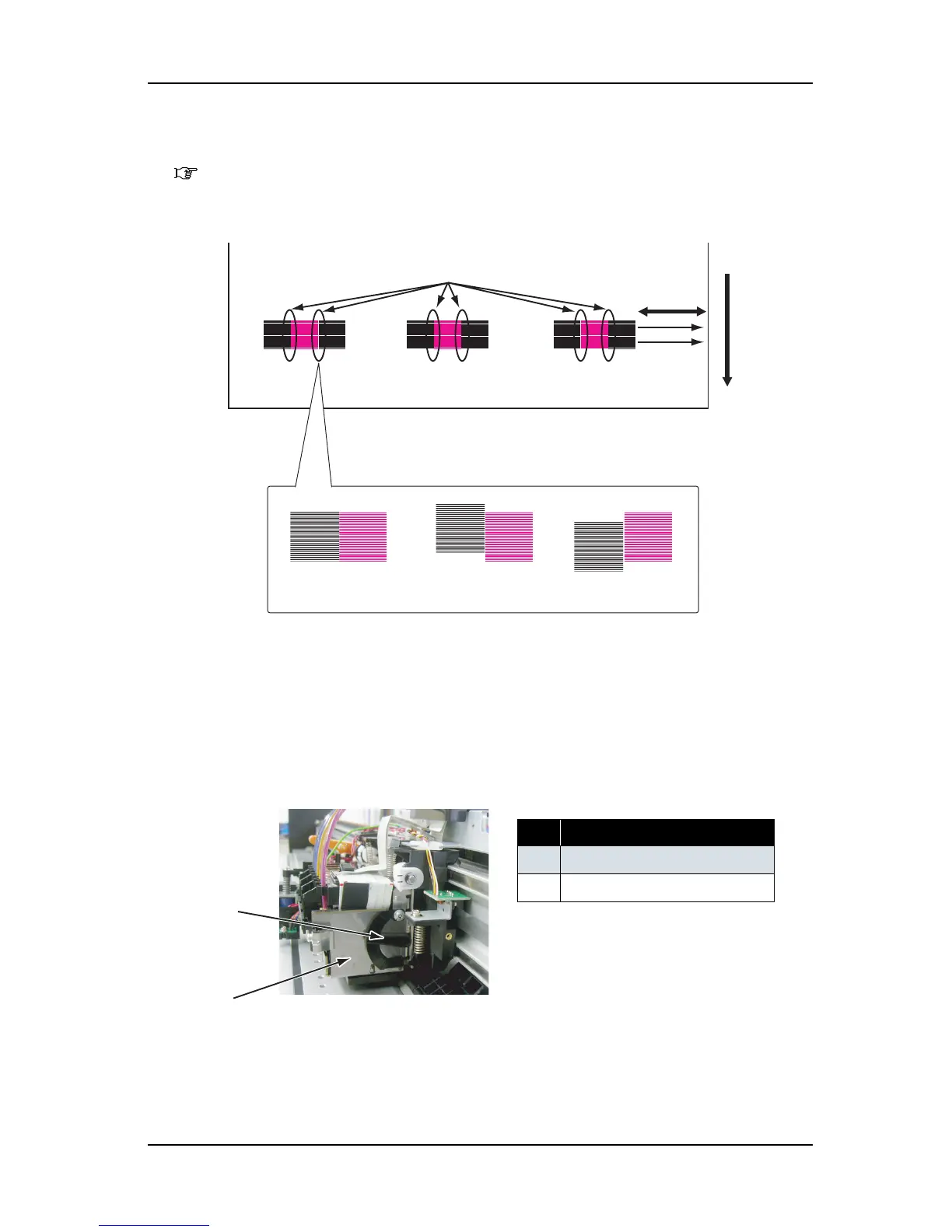

1. Start the system in self-diagnosis function mode and print the adjustment patterns in “Head Slant Check
Menu 1”.
"5.7.4 Head Slant Check Menu" p.5-29
2. Make adjustment based on the printed adjustment patterns.
A: Check the slant at this point.
B: Media feed direction
C: OK
D: Move the head adjusting cam upward.
E: Move the head adjusting cam downward.
3. Move the head adjusting cam lever to adjust head slant.
No. Part name
1
Head adjusting cam
2
Head mounting plate
$
#
%
'
&
OO
1
2
