ValueJet 1304 Service manual
AP-74109 Rev 1.1 4-108

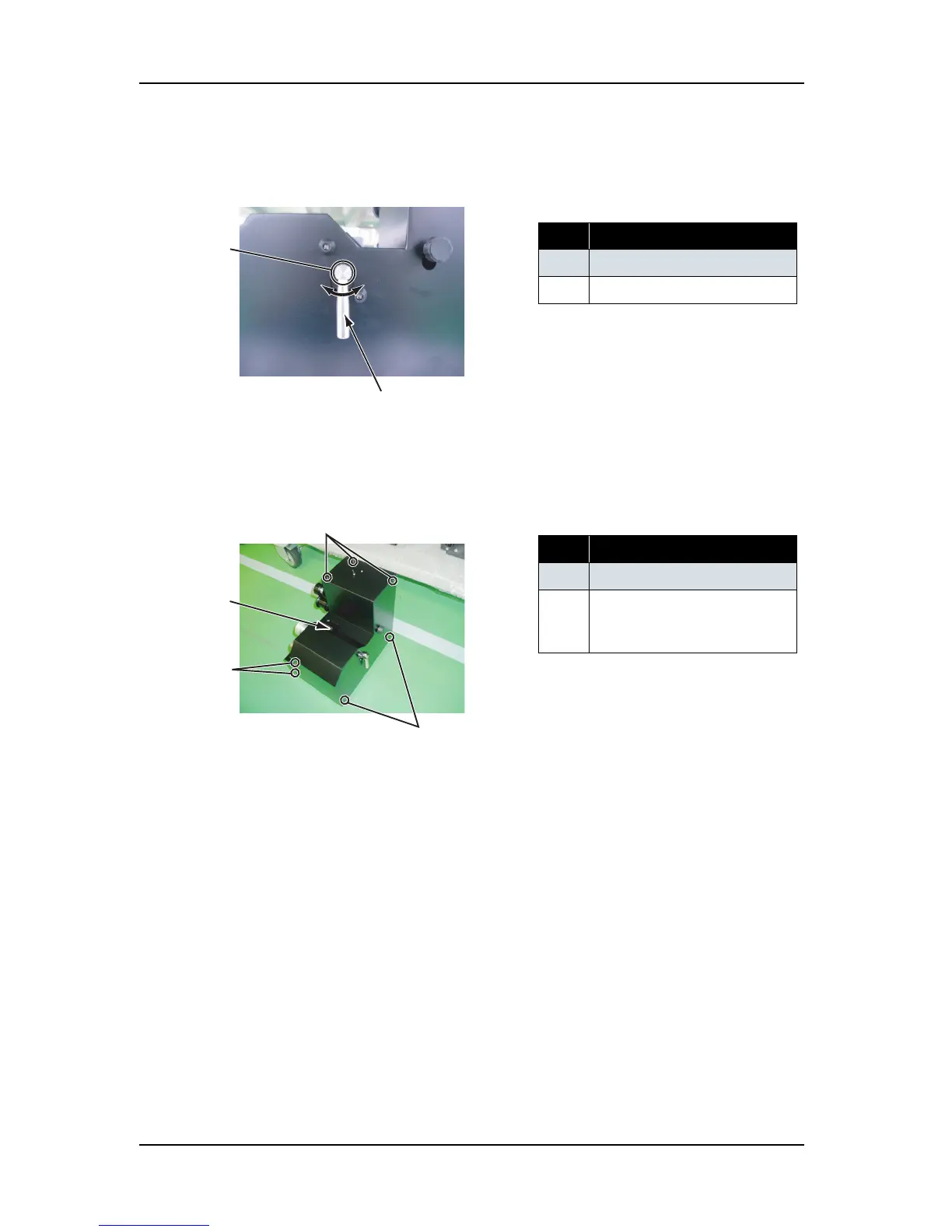

3. Detach the lever from the release cam.
4. Remove the screws (binding head small screw M3 × 5: 7 pieces) that retain the take up unit cover.
5. Remove the take up unit cover.
6. To reassemble the unit, reverse the removal procedure.
表 4-126
No. Part name
1 Release cam
2 Lever
表 4-127
No. Part name
1 Take up Unit cover
2 Screws that retain the take up
unit cover (binding head small
screw M3
× 5)
1
2
1
2
2
2
