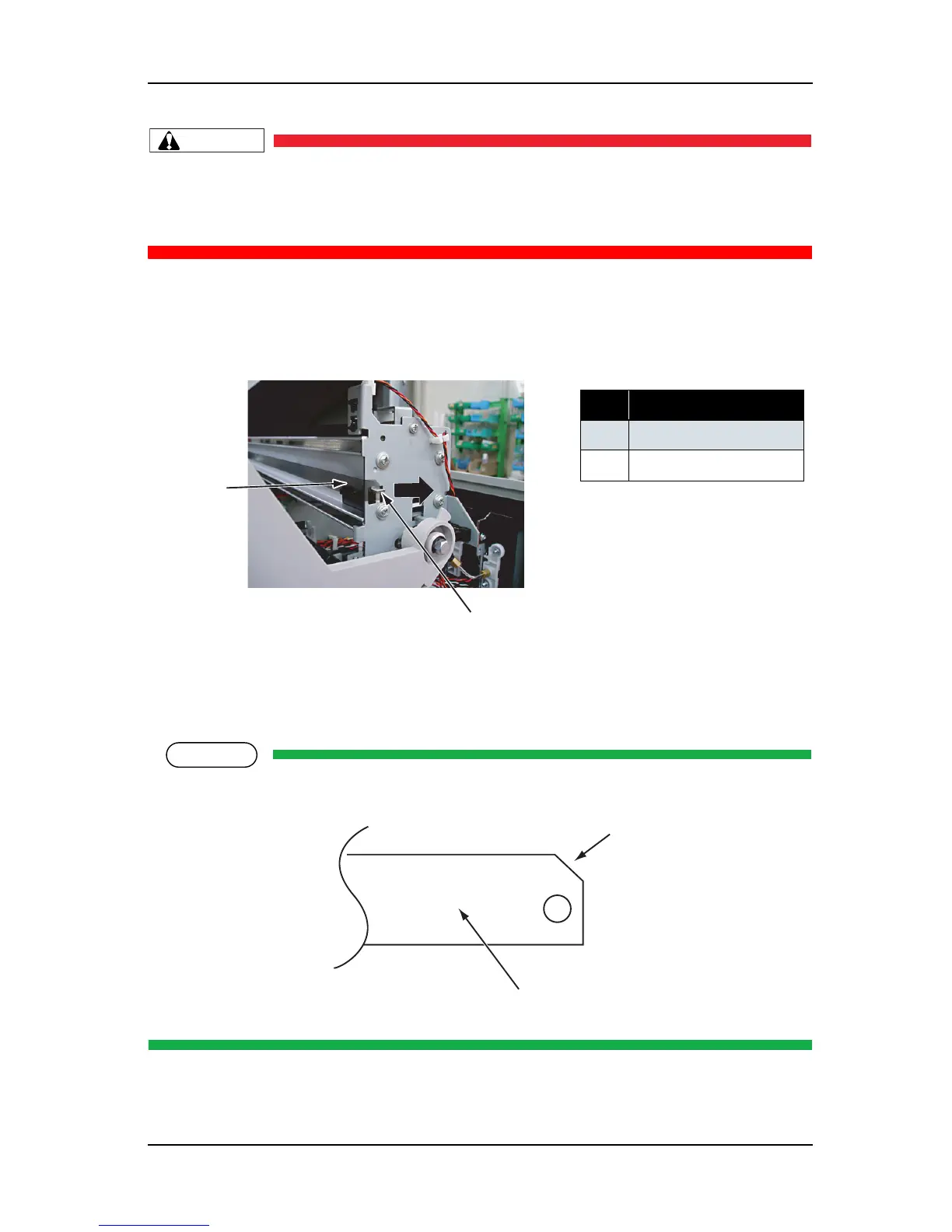

CAUTION
When removing the T fence, note the following.
• Do not pull the T fence by force; the fence guide can be easily broken.
• Pay attention not to damage or break the T fence.
3. Remove the T fence from the CR rail frame R hook on the R frame side, then pull it out toward the
direction of the arrow in the diagram.
4. Replace the T fence.
5. Fold a new T fence to the outside (90 degrees) at the point 9 mm from the edge, then install it to the CR
rail frame hook.
NOTE
Attach the C-cut side of T fence to the origin side of the CR rail frame.
表 4-64
No. Part name
1 T fence
2
T fence hook
1
2
Attach C-cut side
to the origin side.
T fence
