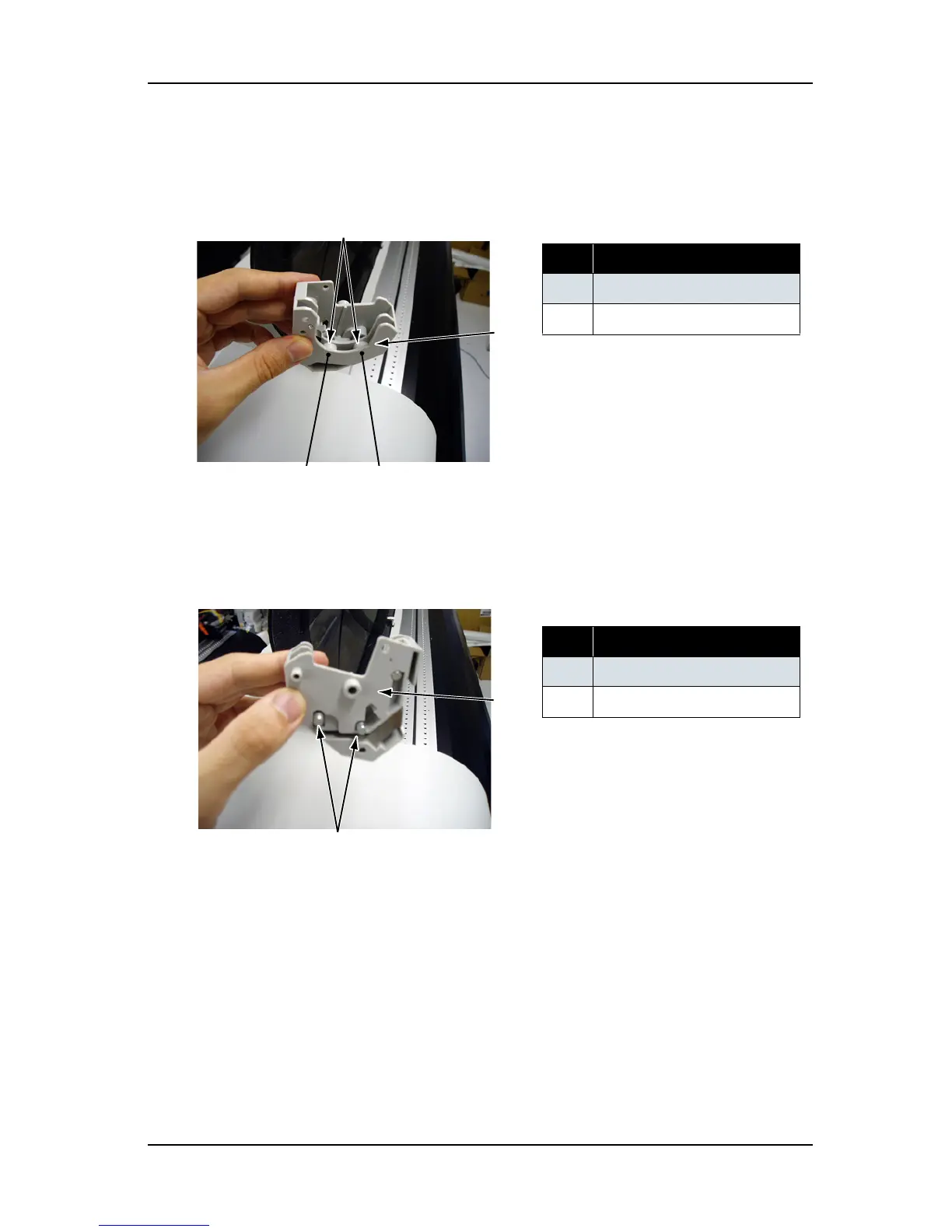

5. Set the scroller receiver roller to the position B and C in the figure below. Make sure that the rollers are
set on the appropriate position of the scroller receiver R (or L).
6. From the other side of the scroller receiver R (or L) as shown below, insert the scroller roller shaft R and
fix the scroller receiver roller.
7. To reassemble the unit, reverse the removal procedure.
表 4-22
No. Part name
1 Scroller receiver rollers
2
Scroller receiver R
表 4-23
No. Part name
1 Scroller roller shaft R
2
Scroller receiver R
1
2
BC
1
2
