ValueJet 1304 Service manual
AP-74109 Rev 1.1 4-46

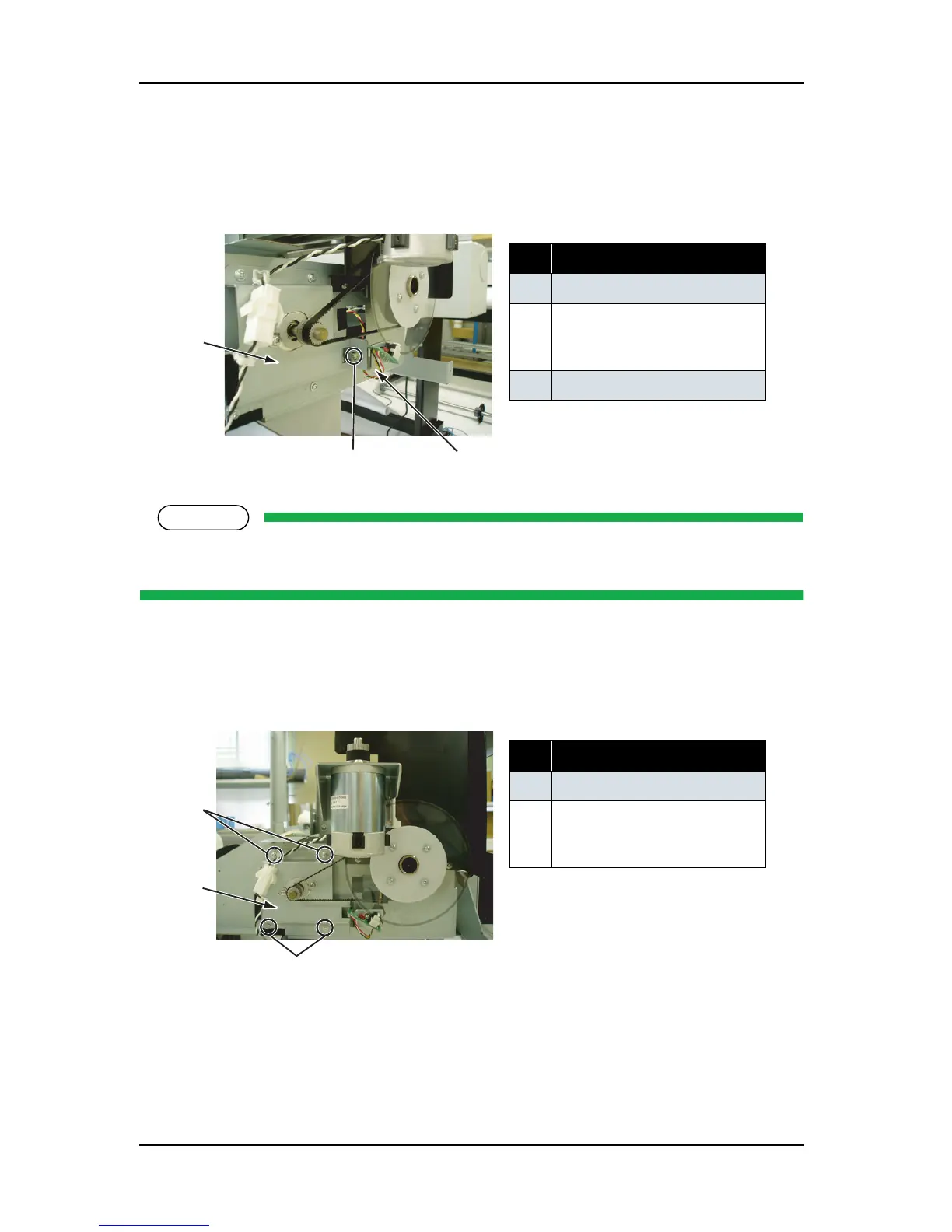

3. Remove the screw (round head spring screw M3 × 6: 1) retaining PF encoder fixing board t2 to PF
bracket, then remove the PF encoder fixing board t2.
.
NOTE
When removing PF encoder fixing board t2 from the PF bracket, do not damage the PF scale by
contacting with PF ENC assembly. Also, do not bend or touch the outer circumference of PF scale.
4. Remove the four screws (tapping screw M3 × 6 S tight cup) retaining PF bracket and remove the bracket
with PF motor assembly.
.
5. Remove the screw retaining the PF motor assembly and replace the assembly.
6. To reassemble the unit, reverse the removal procedure.
表 4-53
No. Part name
1 PF bracket
2 Screws retaining PF encoder
fixing board t2 (round head
spring screw m3
× 6)
3 PF encoder fixing board t2
表 4-54
No. Part name
1 PF bracket
2 Screws retaining PF bracket
(tapping screw M3
× 6 S tight
cup)
1
2
3
1
2
2
