ValueJet 1304 Service manual
4-81 AP-74109 Rev 1.1

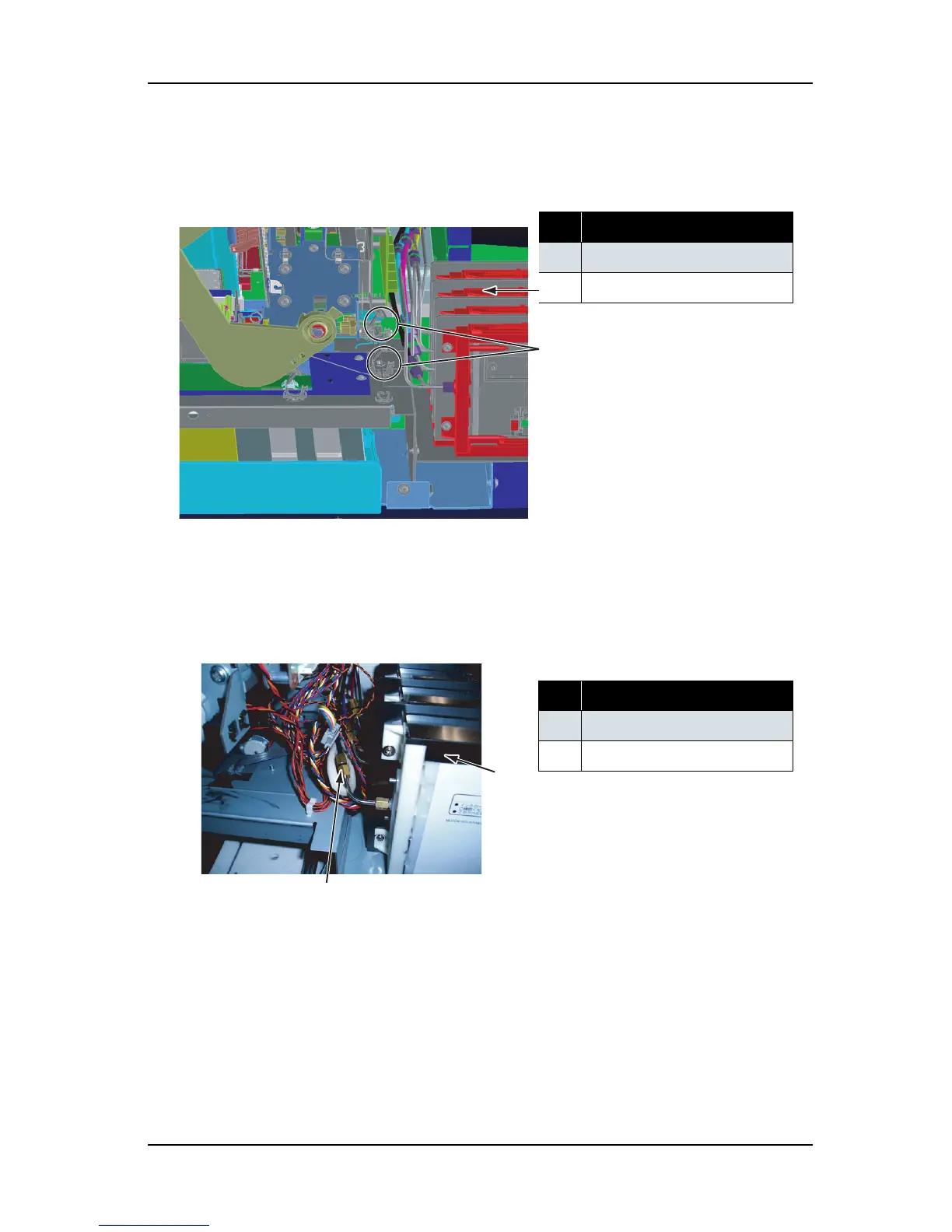

3. Take the removed sensor assembly cable off the clamp (2 points).
4. Remove the joint screw (M6) connecting the I/H assembly and the SUS pipe, and remove the o-ring
inside.
5. Remove the screw retaining the I/H assembly to the I/H base (tapping screw M3
× 10, S cup: 2).
6. Replace the I/H assembly.
7. To reassemble the unit, reverse the removal procedure.
表 4-92
No. Part name
1 Clamp
2
I/H assembly
表 4-93
No. Part name
1 Joint screw
2
I/H assembly
