2. Loosen the joint screw (M6) connecting the ink tube and the cartridge pipe.
3. Remove the ink tube.
4. Remove the following parts from the ink tube.
• Joint screw (M6: 2 pieces)
• O-ring, large: (M6: 2 pieces)
5. Replace the ink tube.
6. To reassemble the unit, reverse the removal procedure.
NOTE
Used O-ring become deformed. Do not use the O-ring removed and attach the new one.

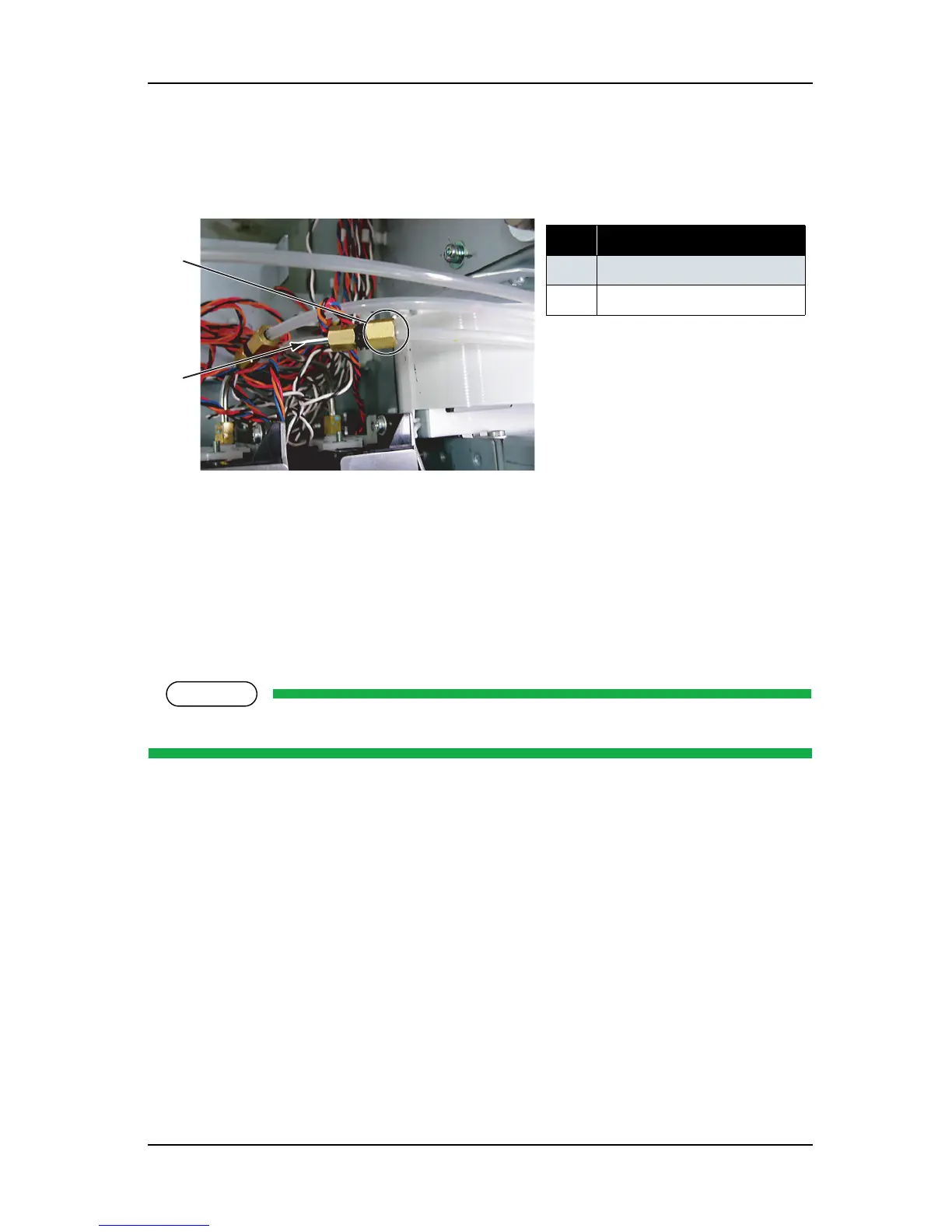

表 4-112
No. Part name
1 Joint screw (M6)
2 Cartridge pipe
1
2
