MUTOH ValueJet User Manual

ValueJet 1304 Service manual
AP-74109 Rev 1.1 4-122

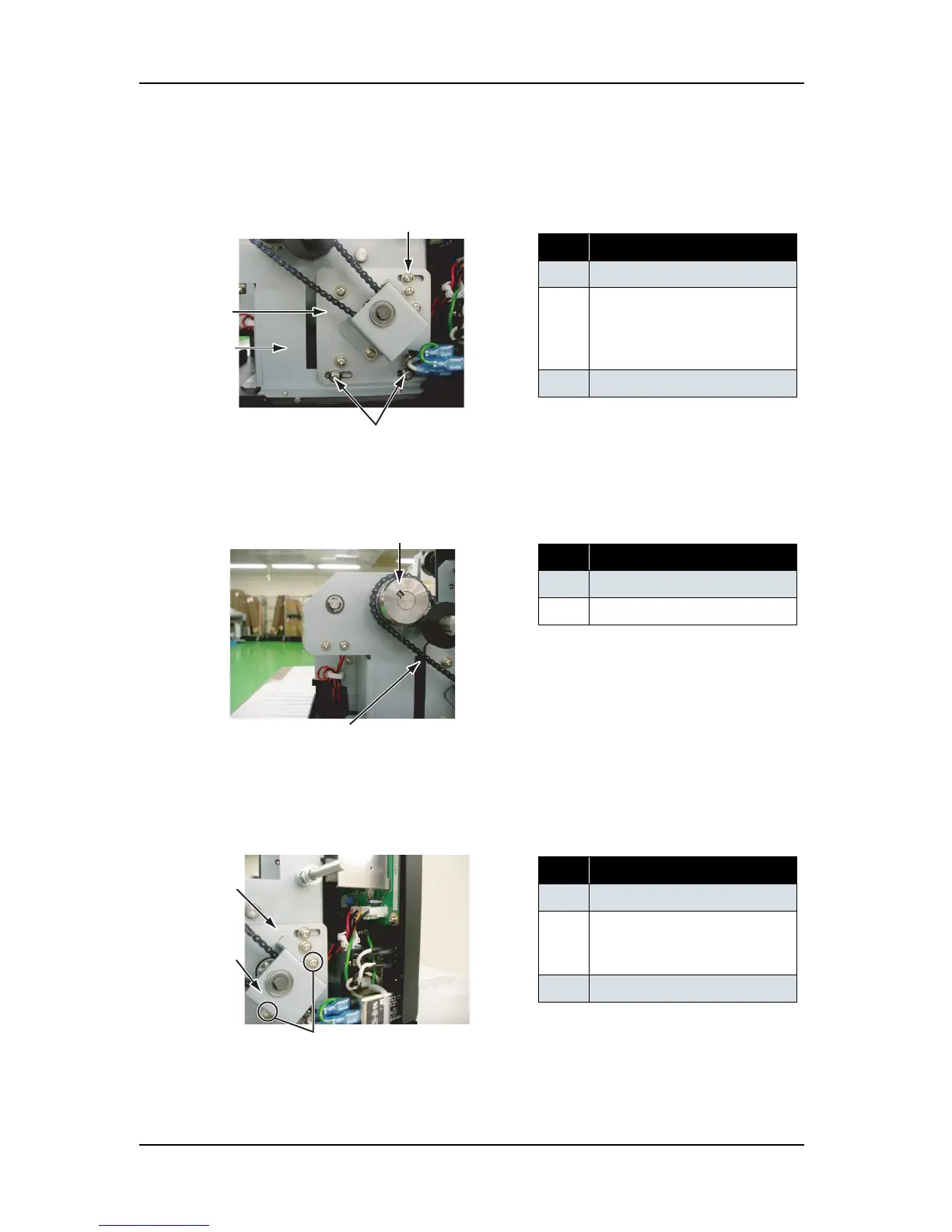

1. Remove the screws (round head spring screw finishing M4 × 10: 3 pieces) that retain the motor mounting
plate on the right of the inside chassis.
2. Detach the chain from the sprocket large.
3. Remove the screws (round head spring screw finishing M4 × 6:2 pieces) that retain the axis holder on the
motor mounting plate.
4. Remove the bearings.
5. Replace the VJ take up unit motor assembly.
表 4-151
No. Part name
1 Motor mounting plate
2 Screws that retain the motor
mounting plate (round head
spring screw finishing M4
× 10:
3 pieces)
3 Right of the inside chassis
表 4-152
No. Part name
1 Sprocket large
2Chain
表 4-153
No. Part name
1 Axis holder
2 Screws that retains the axis
holder (round head spring screw
finishing M4
× 6)
3 Motor mounting plate
3
1
2
2
1
2
1
2
3

MUTOH ValueJet Specifications

General

Technology	Piezo Inkjet
Ink Type	Eco-solvent ink
Print Resolution	Up to 1440 dpi
Resolution	Up to 1440 dpi
Ink Colors	CMYK, White
Media Width	64 inches
Interface	USB, Ethernet
Operating Systems	Windows
