ValueJet 1304　Service manual
7-49 AP-74109 Rev 1.1
7. Adjust the P_REAR sensor adjusting volumes as shown below so that the value displayed in the operation
panel becomes “216 ± 10”.
Counterclockwise: Sensitivity increases
Clockwise: Sensitivity decreases
• Trimmer R371: Rough adjustment
• Trimmer R373: Fine adjustment
8. Check that the value displayed in the operation panel is “216 ± 10”.
9. Remove the standard media.
10. Check that the value displayed in the operation panel is “80” or below.

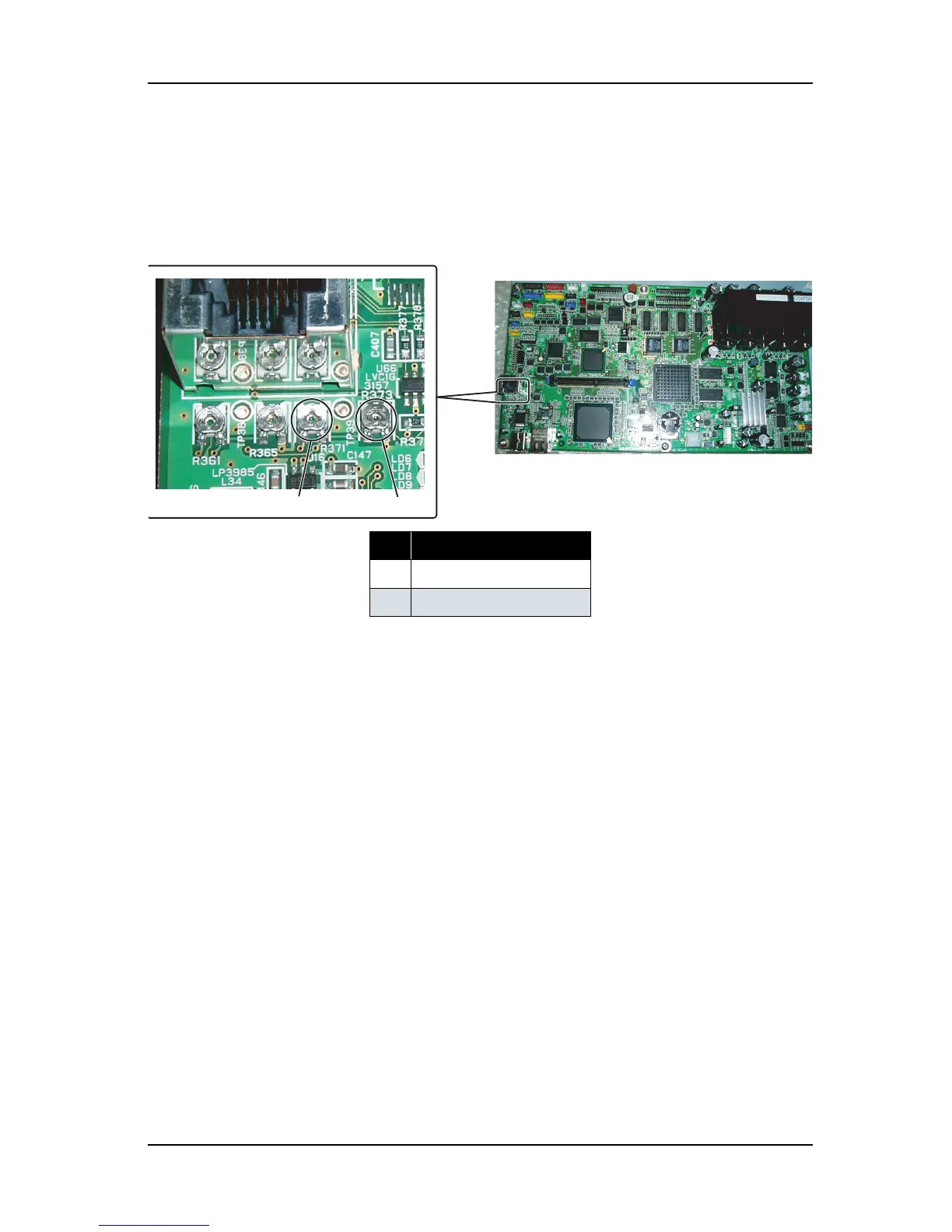

No. Part name
1
Trimmer R371
2
Trimmer R373
1
2
Main board
