MUTOH ValueJet User Manual

ValueJet 1304 Service manual
4-51 AP-74109 Rev 1.1

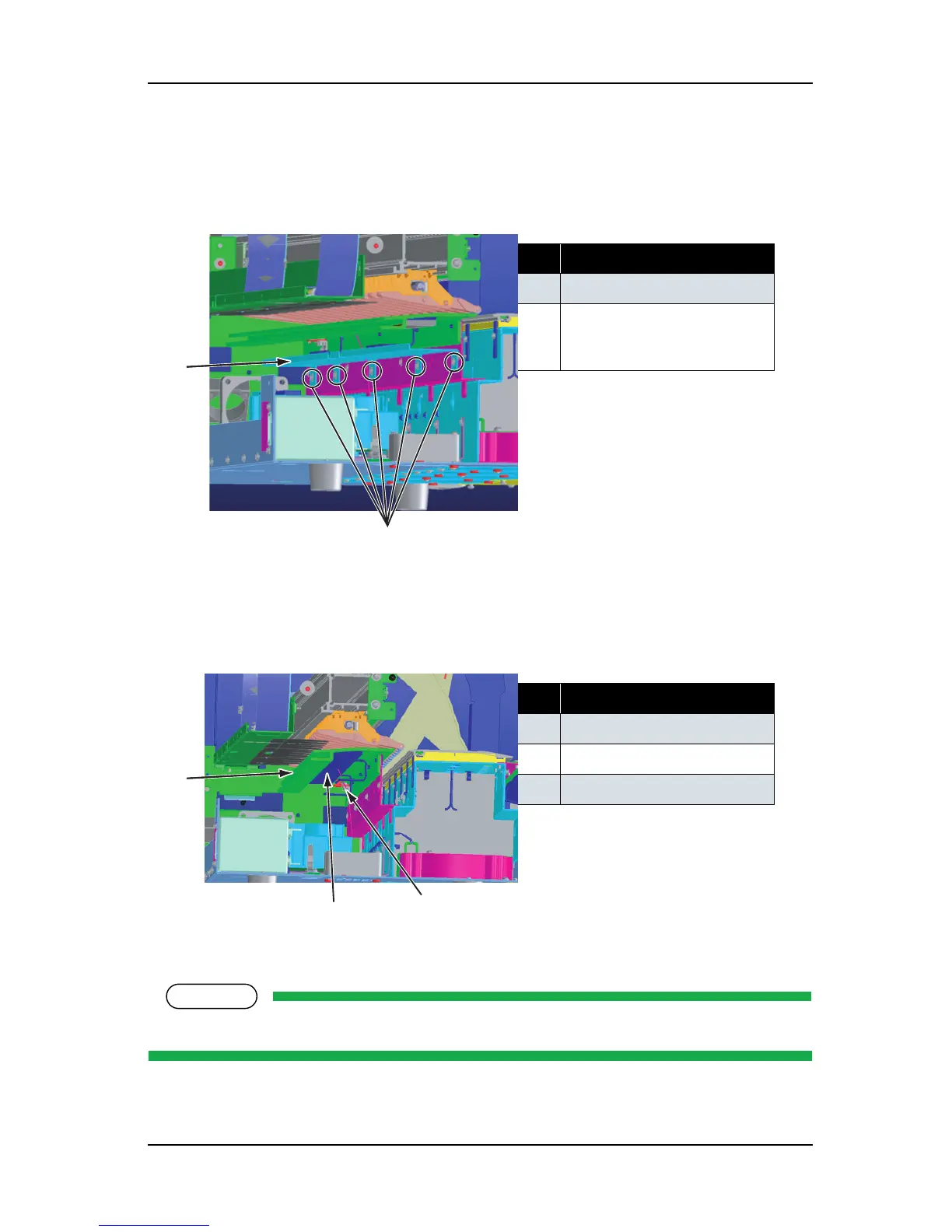

3. Remove the media guide stay b-retaining screw (cup screw M3 × 6 Ni-3 bk: 5), and remove the media
guide stay b.
4. Remove the pre-heater and thermistor assembly.
5. To reassemble the unit, reverse the removal procedure.
NOTE
Wipe the grease away from the heater attachment area before installing it.
表 4-58
No. Part name
1 Media guide stay b
2
Media guide stay b-retaining
screw (cup screw M3
× 6 Ni-3
bk)
表 4-59
No. Part name
1 Media guide R1
2
Pre-heater
3 Thermistor assembly




MUTOH ValueJet Specifications

General

Technology	Piezo Inkjet
Ink Type	Eco-solvent ink
Print Resolution	Up to 1440 dpi
Resolution	Up to 1440 dpi
Ink Colors	CMYK, White
Media Width	64 inches
Interface	USB, Ethernet
Operating Systems	Windows
