Navistar International LT Series - Stalk Shifter Engine Brake; Engine Brake with Allison Transmissions; Engine Brake with Eaton Ultrashift+ Transmission Special Driver Instructions

Operation
Toactivatetheenginebrake,pressthepush
buttonENGBRAKEON/OFFswitchonthe
steeringwheel(pressingthisswitchagainwill
deactivatethesystem).TheENGINEBRAKE
SELECTOR1/2/3switchisthenusedtoadjust
theamountofbrakingapplied.
Usingenginebrakingfeaturescanextend
brakelininglife.Thefeaturesalsoallowthe
drivertoslowthevehicledownormaintainaconstantspeed
onsteeproadgradesthatwouldotherwiseresultinprolonged
useoftheservicebrake,whichcouldcausebrakefade.Refer
totheEngineOperationandMaintenanceManualfordetailed
informationontheenginebrakingsystem.

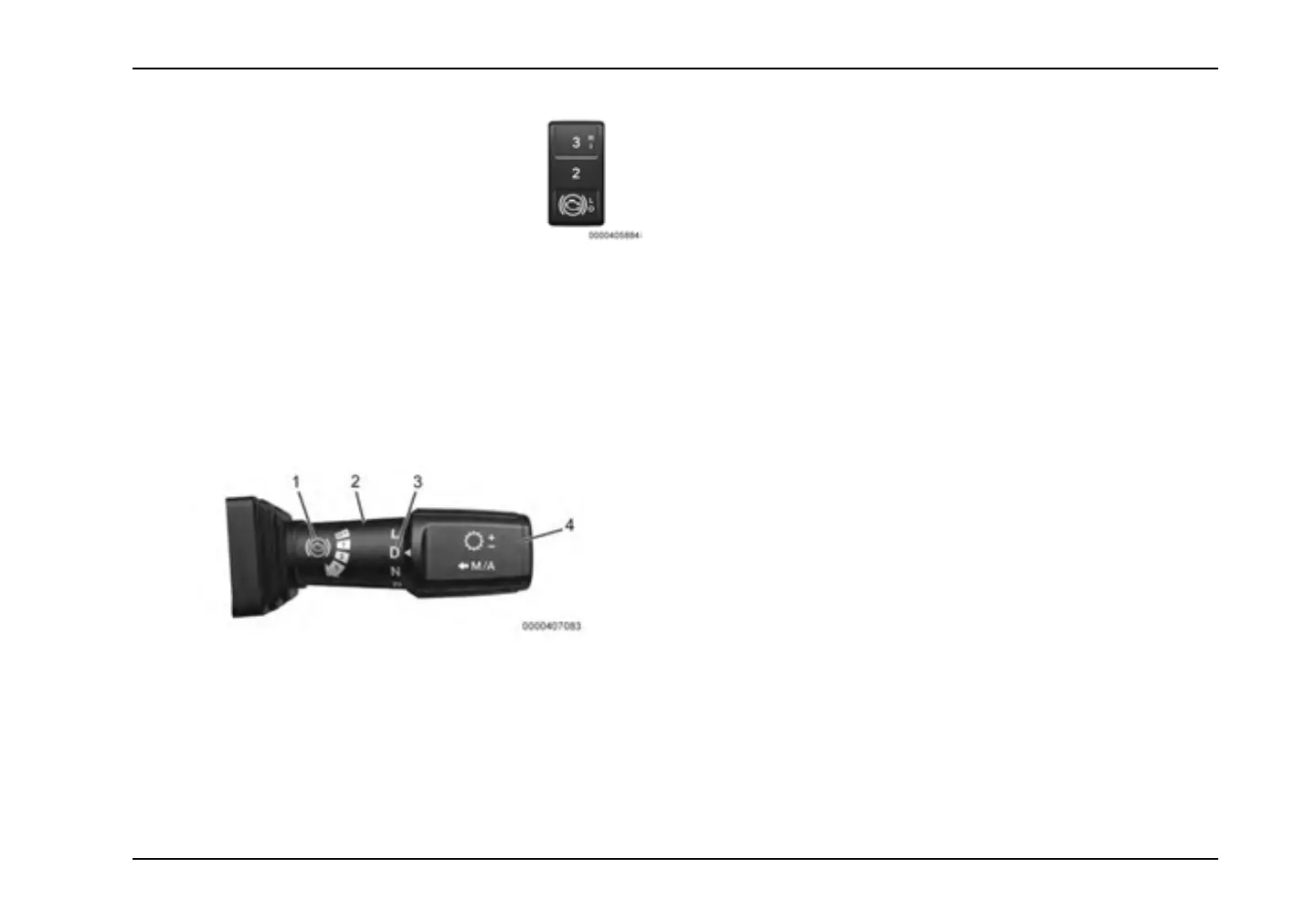

StalkShifterEngineBrake
1.Enginebrake
2.Shifterstalk
3.Gearselectordial
4.Manual/Automaticmodebutton
Forvehicleswithautomatictransmissionsorautomatedmanual
transmissions,thereisaenginebrakefeatureontheshifter
stalk.Theshifterstalkislocatedontheright-sideofthesteering
column.T ooperatetheenginebrakecontrols,pulltheshifter
stalkdowntowardstheoor.Therearethreedifferentengine
brakelevels.
EngineBrakeWithAllisonTransmissions
WhentheTransmissionControlModule(TCM)detectsthe
enginebrakehasbeenenabled,itcommandsuseofa
preselectedshiftscheduleinordertoenhancetheenginebrake
performance.
EngineBrakeWithEaton
®
UltraShift+
®
TransmissionSpecial
DriverInstructions
Lowormanualtransmissionmodecanbeusedtomaximize
enginebrakeperformance.
•Keepenginespeedascloseto2,250rpmaspossible.
•Maintainbrakepedalapplicationuntilanydesired
downshiftsarecompleted.Failuretodosomaycause
missedshifts.
•Thegeardisplayontheshiftselectorwillstopblinking
whenthedownshiftiscompleted,andthedriverwillnotice
resumptionofenginebrakingasanindicationthatthe
shiftiscompleted.
