Controls/Features

Overview

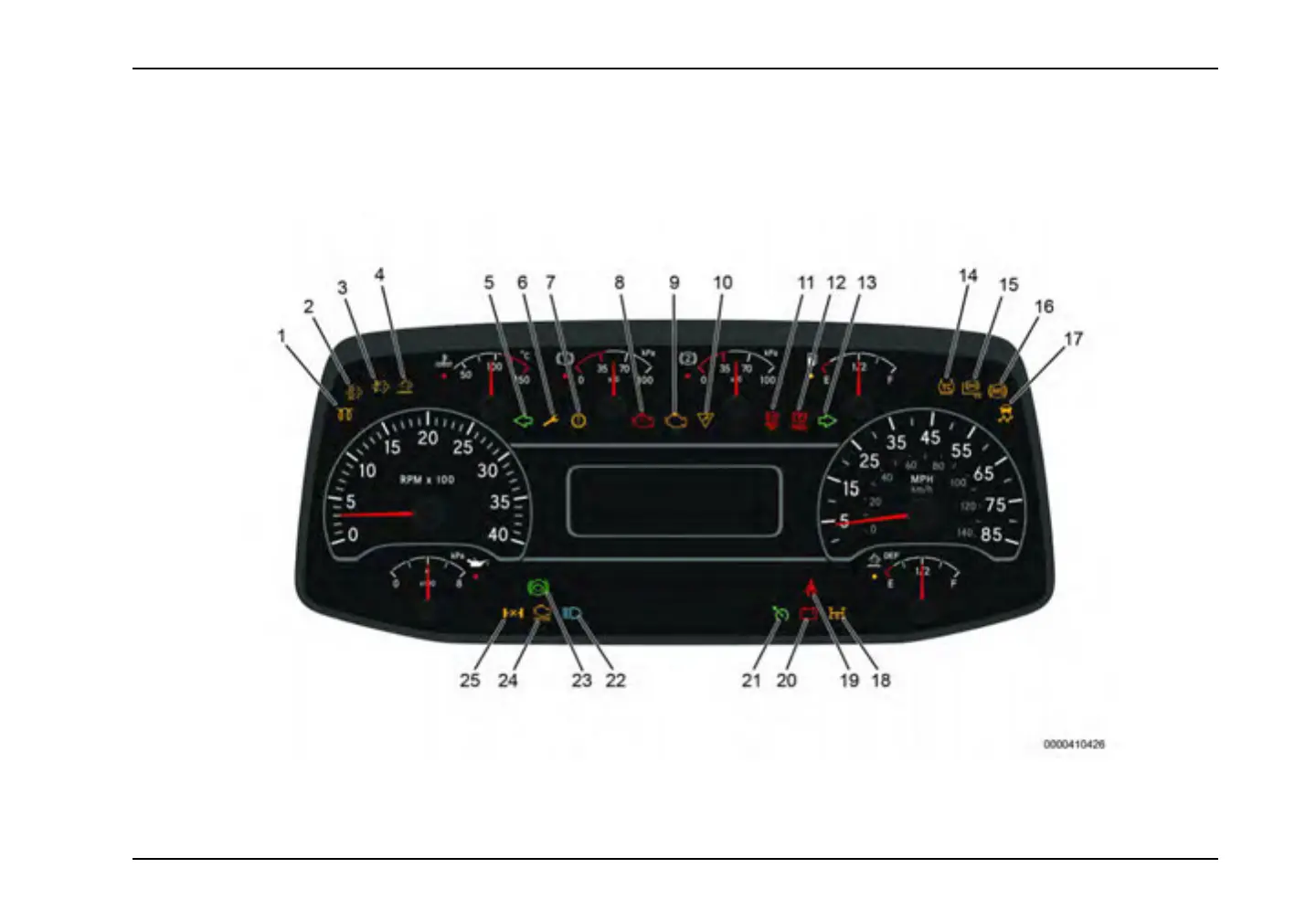

Theelectronicgaugeclustercontains25individualLEDwarning

indicators.Theseindicatorsareusedtomonitorvehicle

operationandindicateaWARNINGorSTOPcondition.They

aredrivenbythesoftwareintheelectronicgaugecluster.At

ignition,thesewillilluminatefor8-10seconds,aspartofthe

vehiclepower-upsequence.
