MaintenanceIntervalsandSpecications

FuseCharts

NOTE:Thecontentsofthismanualwillbegeneralandmay

notreectthemostcurrentvehicleconguration.Ifthe

contentofthismanualdoesnotprovidetheexplanation

neededtounderstandoroperatethefeatureyouareusing,

pleasecontactyourlocalInternationaldealerorreferto

International

ServicePortal

forthemostuptodate

information.

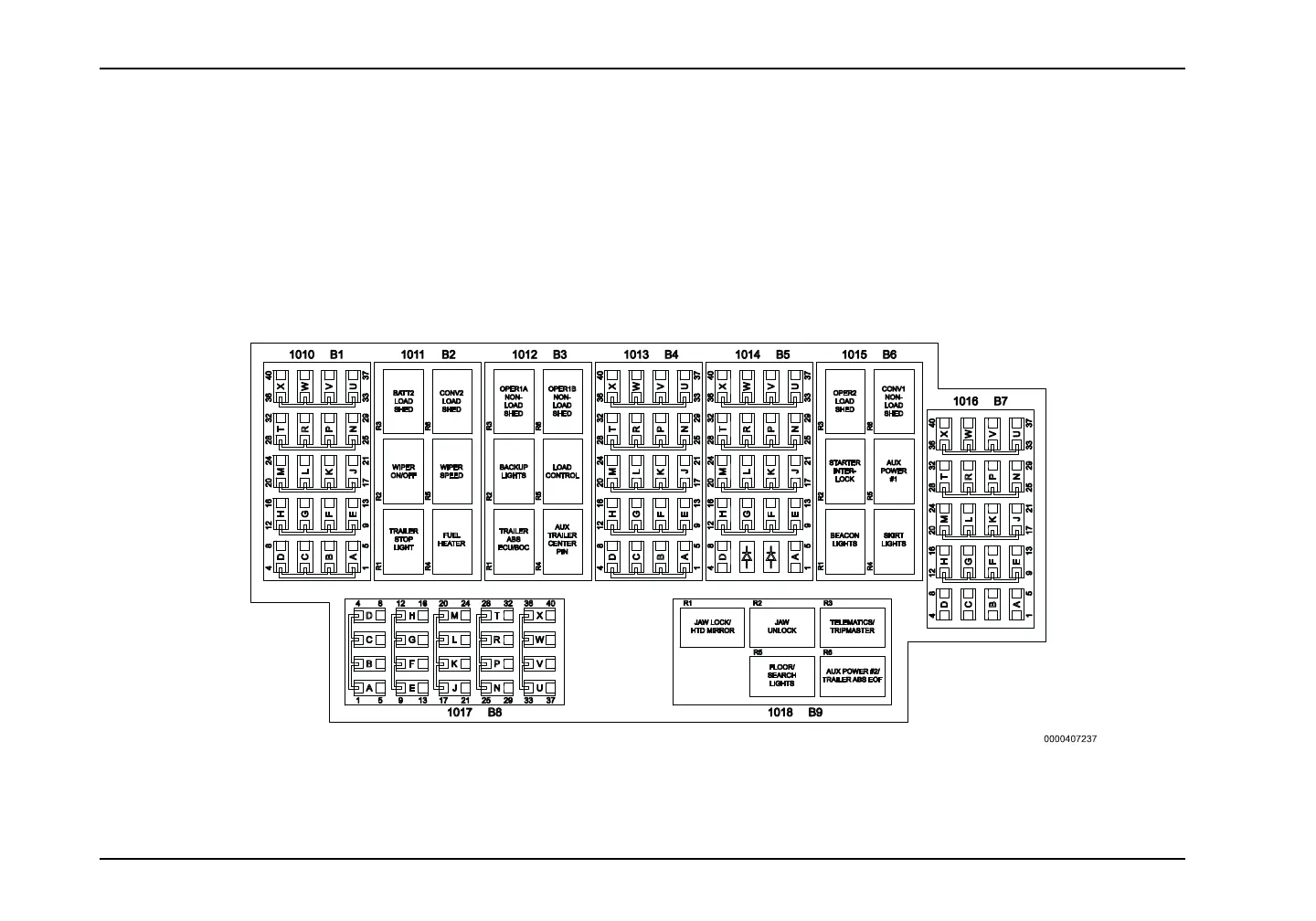

Thefollowingfuseillustrationsrepresenttypicalfusepanel

layouts.Theactualvehiclefusepanelswillvarydependingon

thevehicleoptions.Refertothechartonrearsideoffusecover.

288
