Navistar International LT Series - Back View: LT Series

To Next Page

To Previous Page

ModelDescription

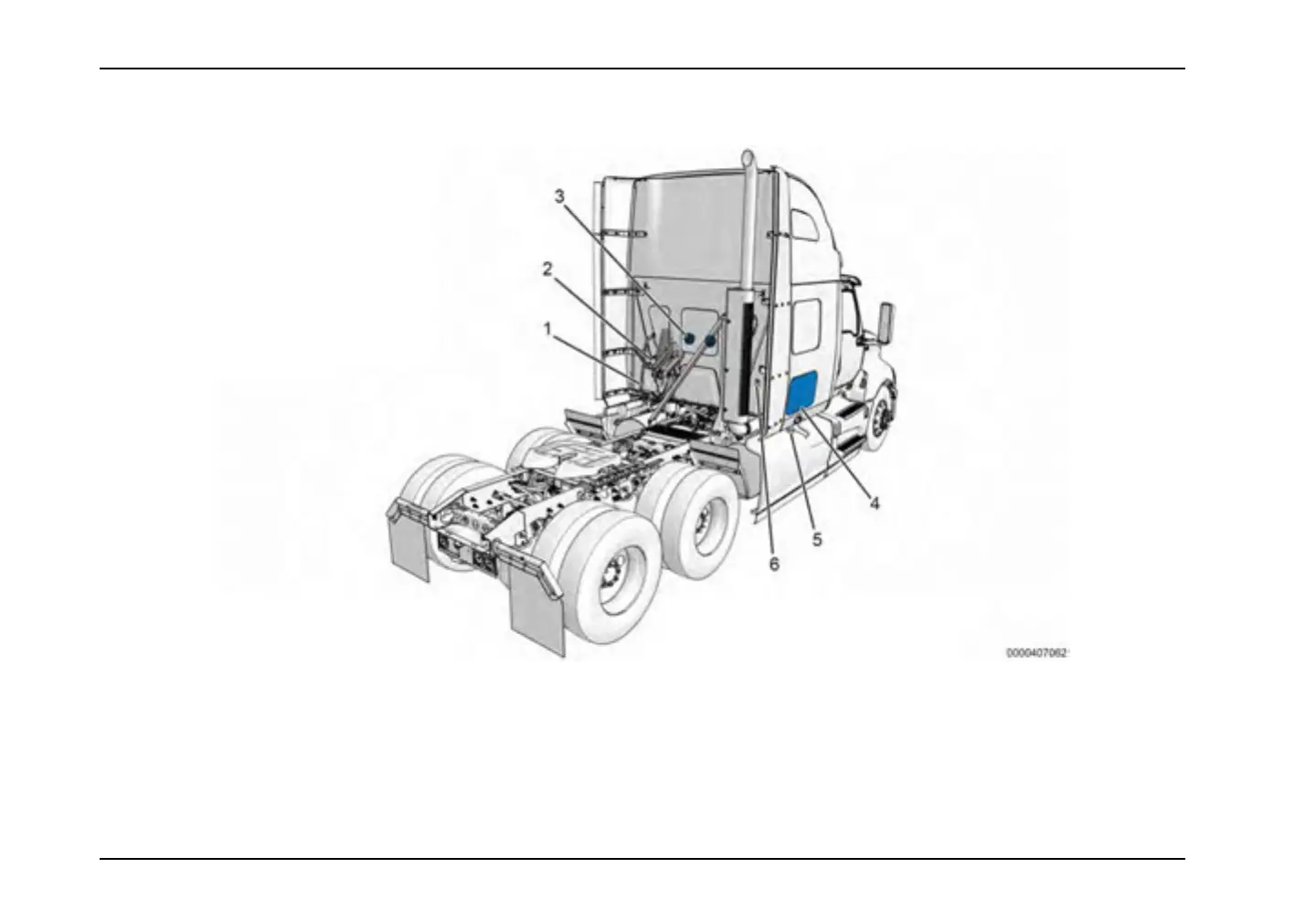

BackView:LT

Series—LongSleeper

1.Grabhandle

2.Gladhandstoragebracket

3.Worklight(2)

4.Luggagedoor

5.Fuelcap

6.In-transitheat(optional)
