MaintenanceIntervalsandSpecications

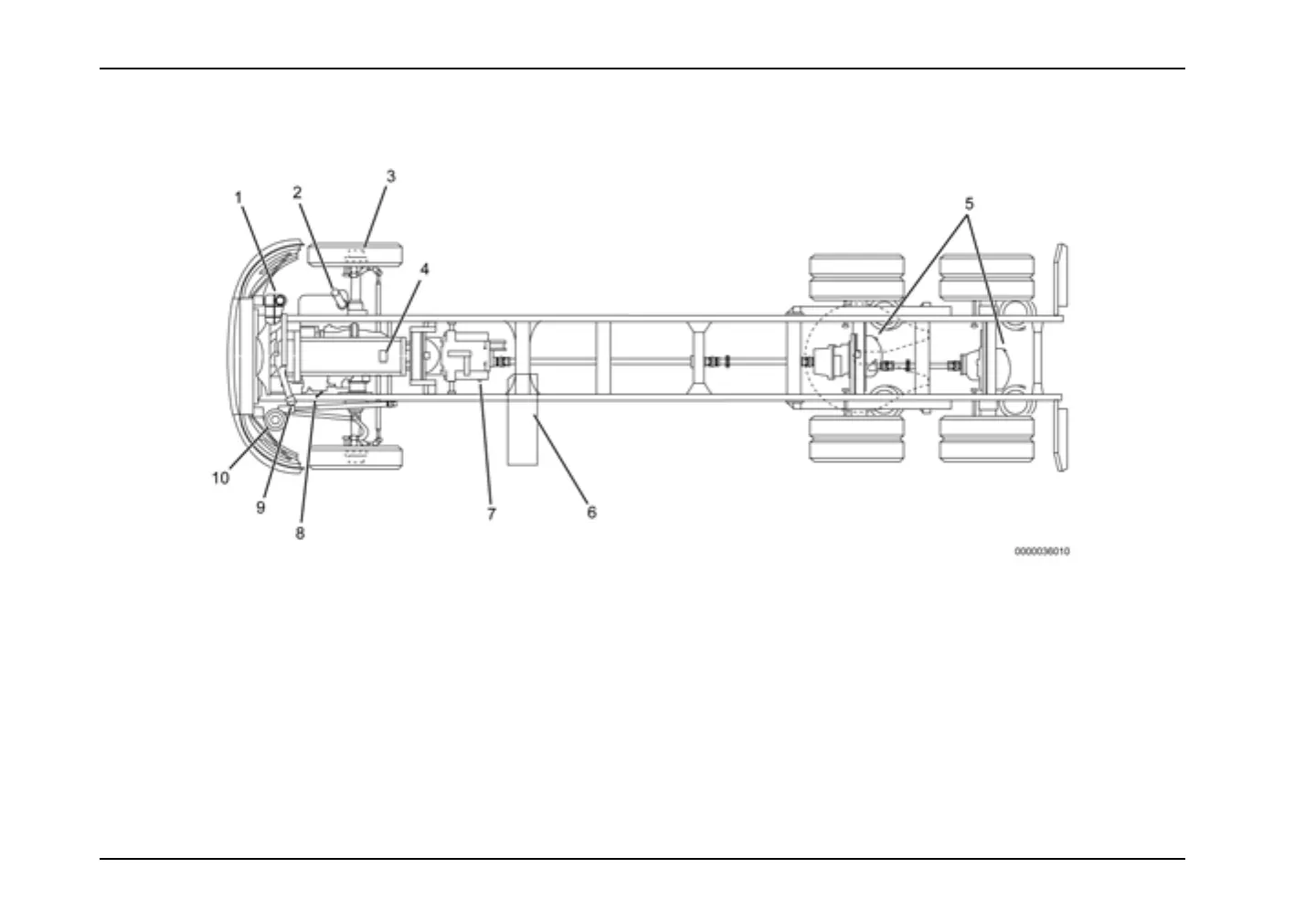

ComponentsRequiringFluidCheckandFill

1.Coolantsurgetank

2.Windshieldwasheruidbottle

3.Frontaxleoil-lledhub

4.Hydraulicclutchreservoir

5.Driveaxleoilll/levelcheckplug

6.Dieselexhaustuid(DEF)tank(on

vehiclesequippedwithSelectiveCatalytic

Reduction(SCR)system)

7.Transmissionoilll/levelcheckplug

8.Engineoildipstick

9.Engineoillltube

10.Powersteeringuidreservoir

280
