Operation

FifthWheelJawMonitoring

Theoptionalfthwheeljawmonitoringfeatureis

anelectronicjawlockindicatorsystemwithtwo

indicatorstoshowfthwheeljawstatustothe

driver.

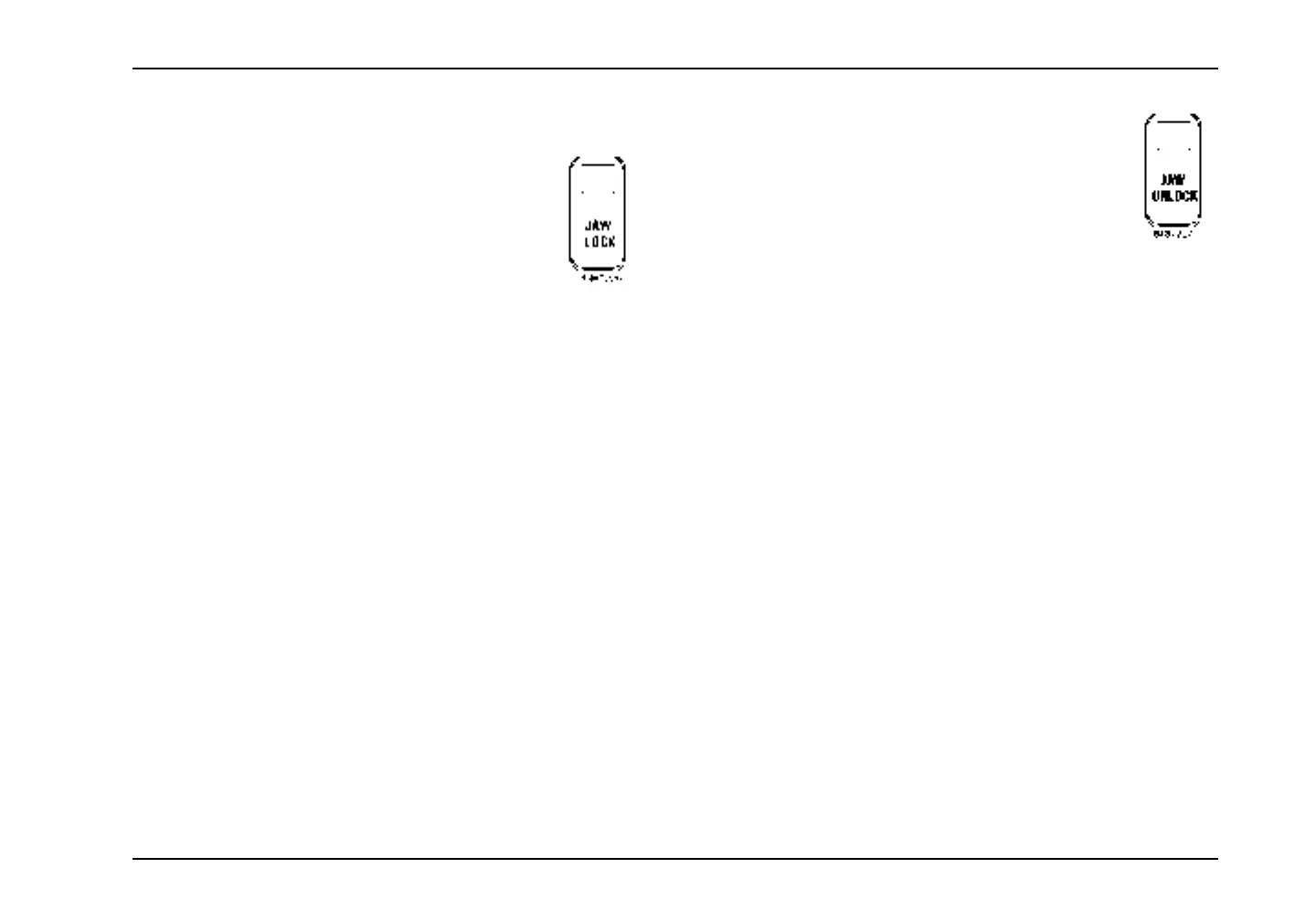

Oneindicator,JAWLOCK,illuminatesGREEN

whenthetrailerisfullylockedontothefthwheel.

Theotherindicator,JAWUNLOCK,illuminates

REDwhenthetrailerisnotfullylockedontothe

fthwheel.Ifneitherindicatorisilluminated,this

indicatesthejawisunlockedandthetractorisnot

connectedtoatrailerandisinbobtailmode.Ifthe

JAWUNLOCKindicatorisashing,thisindicates

thejawislockedandthetrailerisnotconnected

tothefthwheel.Ifbothindicatorsareashing,thisindicates

asystemerrororfailure.Bothindicatorswillilluminatebriey

whenthekeyisturnedtotheONpositionasacheckoffunction.

219
