MaintenanceInstructions

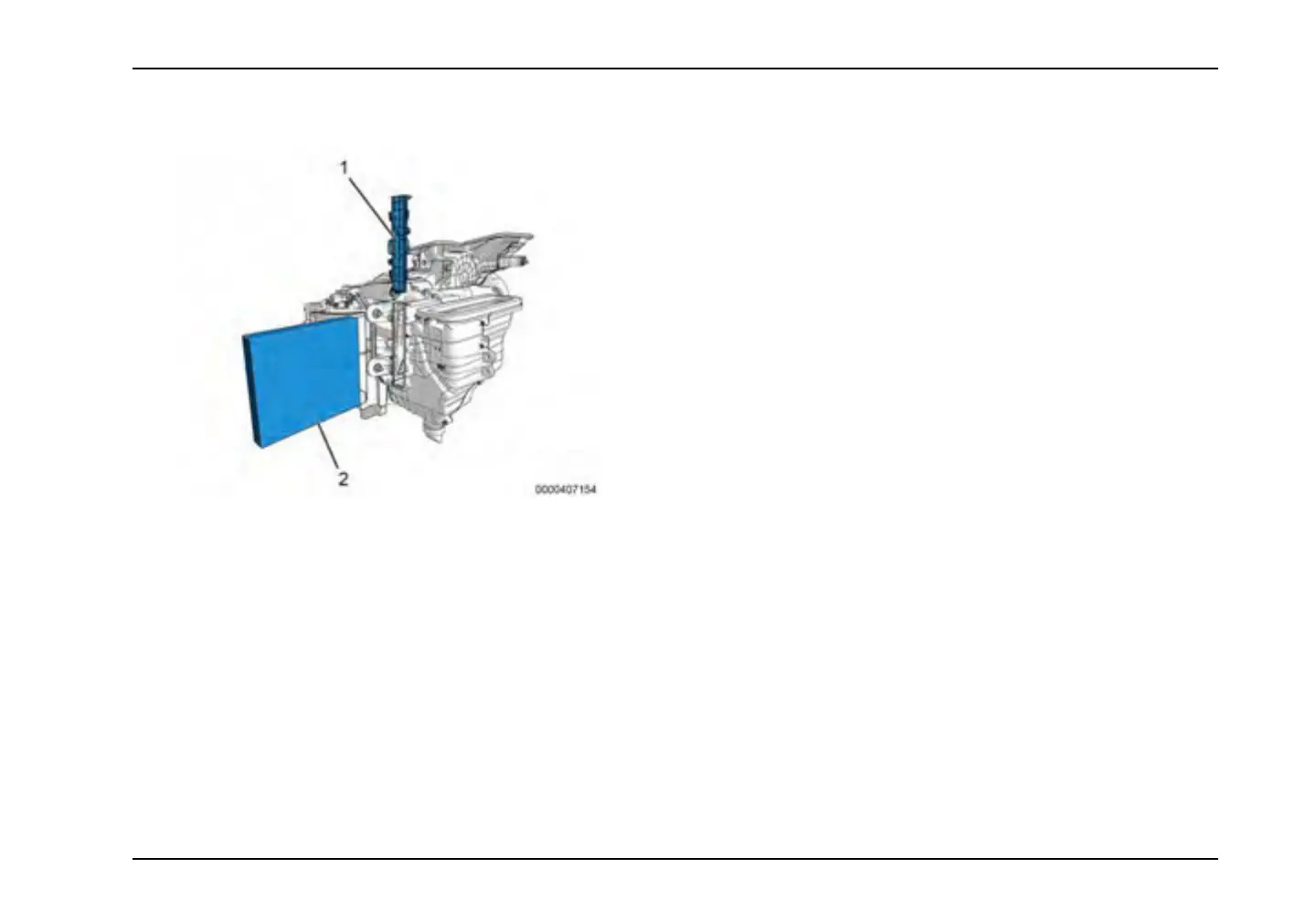

SideAccessHVACFilter

1.Filteraccessdoor

2.Airlter

CabFreshAirHVACFilterReplacement–SideAccess

1.Unlatchandremovelteraccessdoor.

2.Removelterbypullinglteroutofairintakehousing.

3.Installnewlterbyslidinglterintoairintakehousing.

4.Installlteraccessdoorandlatchinplace.

225
