Navistar International LT Series - Steering Wheel Controls

To Next Page

To Previous Page

Controls/Features

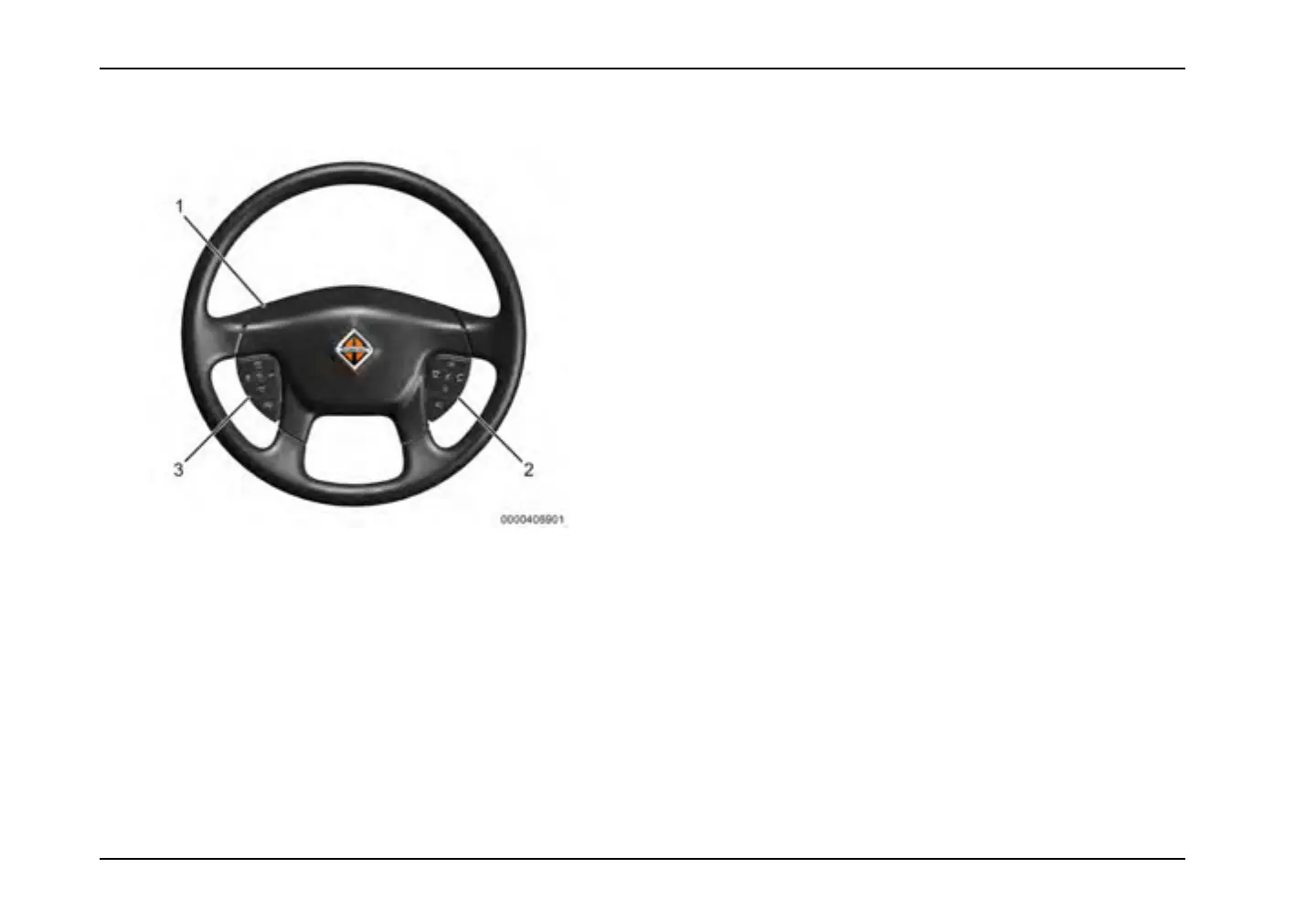

SteeringWheelControls

1.Cityhorn

2.Right-sidecontrols

3.Left-sidecontrols

NOTE:Steeringwheelcontrolscanbereconguredfor

customer-denedpreferencesusingElectronicService

Tool(EST).

NOTE:OptionalLeatherWrappedWheelWithControls

Shown.

Thesteeringwheelcontainsavarietyofpush-buttonswitchesto

aidintheoperationofthevehicle.
