Navistar International LT Series - Center Dash Panel; Wing Panel

To Next Page

To Previous Page

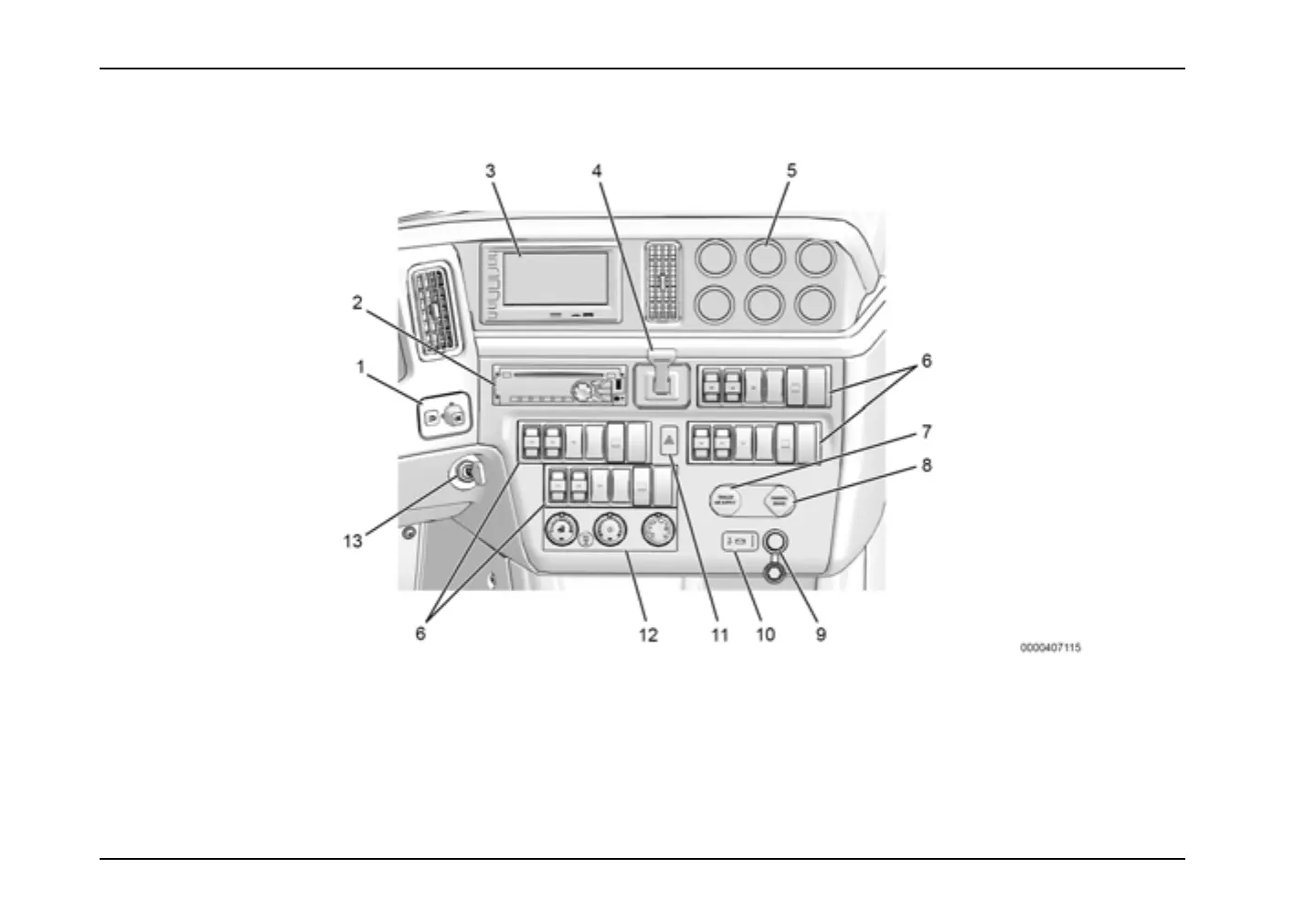

Controls/Features

CenterDashPanel/WingPanel

1.Premiumelectronicclusterdisplaycontrol

(optional)

2.Radio

3.Vehicleinformationdisplay(optional)

4.Trailerbrake(optional)

5.Auxiliarygauges(optional)

6.Switchpacks

7.Trailerairsupply

8.Parkingbrake

9.Auxiliarypoweroutlet

10.USBoutlet

11.Hazardlightswitch

12.A/Candheatercontrols

13.Ignitionswitch
