c. Click Add to create a new rule.
3. Create a new ACL rule and add it to ACL 101.
a. After you click the Add button in step 2, a screen similar to the following displays.
a. In the Extended ACL Rule Configuration, enter the following information:
• In the Rule ID (1 to 23) field, enter 1.
• For Action, select the Permit radio button.
• In the Protocol Type list, select TCP.
• In the Source IP Address field, enter 192.168.77.0.
• In the Source IP Mask field, enter 0.0.0.255.
• In the Destination IP Address field, enter 192.178.77.0.
• In the Destination IP Mask field, enter 0.0.0.255.
b. Click Apply to save the settings.
4. Create another ACL rule and add it to the ACL 101.

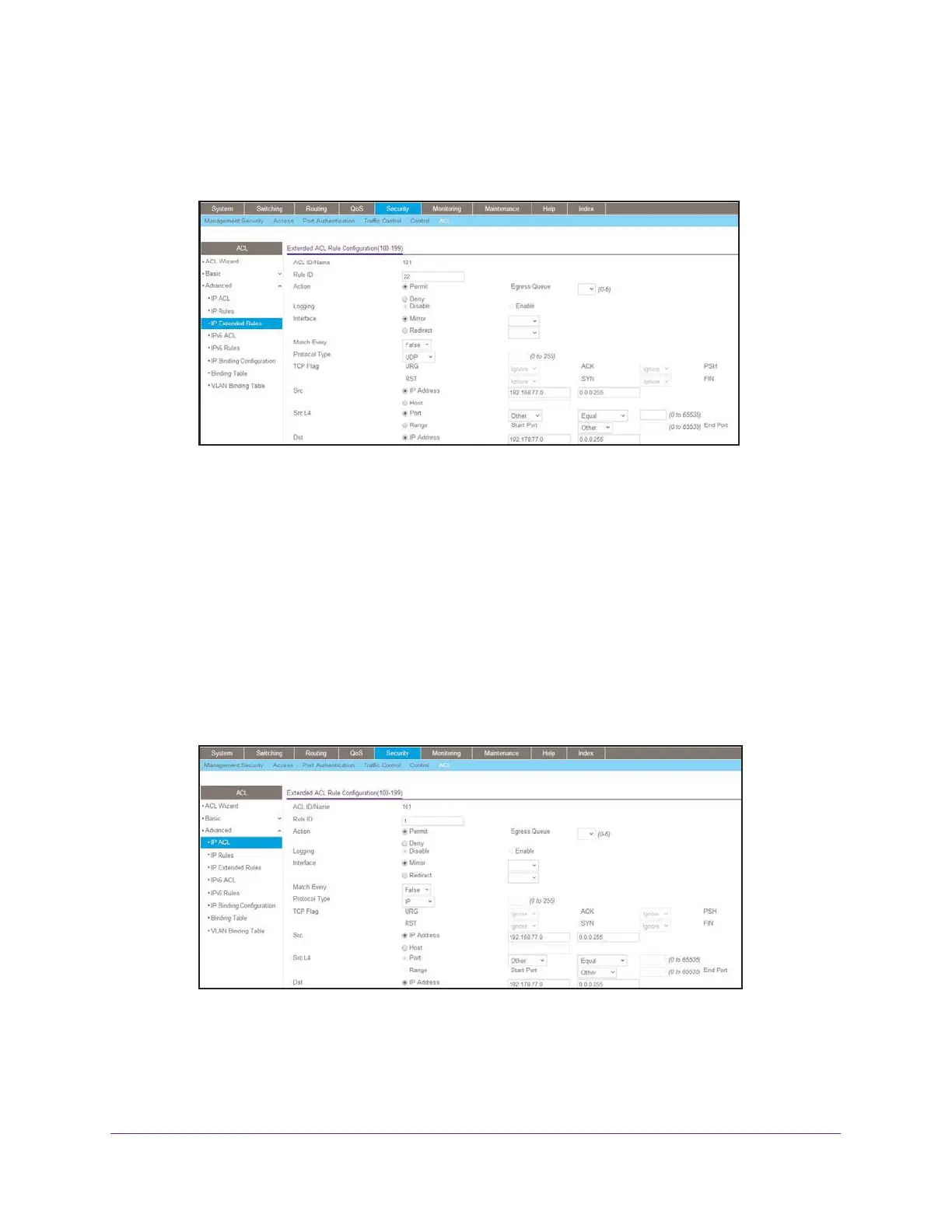

a. After you click the Add button in step 3, a screen similar to the following displays.
b. Under Extended ACL Rule Configuration, enter the following information:
• In the Rule ID (1 to 23) field, enter 22.
• For Action, select the Permit radio button.
• In the Protocol Type list, select UDP.
