NETGEAR M4200 User Manual

ACLs
168
Managed Switches
• In the Source IP Address field, enter 192.168.77.0.
• In the Source IP Mask field, enter 0.0.0.255.
• In the Destination IP Address field, enter 192.178.77.0.
• In the Destination IP Mask field, enter 0.0.0.255.
c. Click Apply to save the settings.
5. Apply ACL 101 to port 2.
a. Select Security > ACL > IP ACL > IP Binding Configuration.

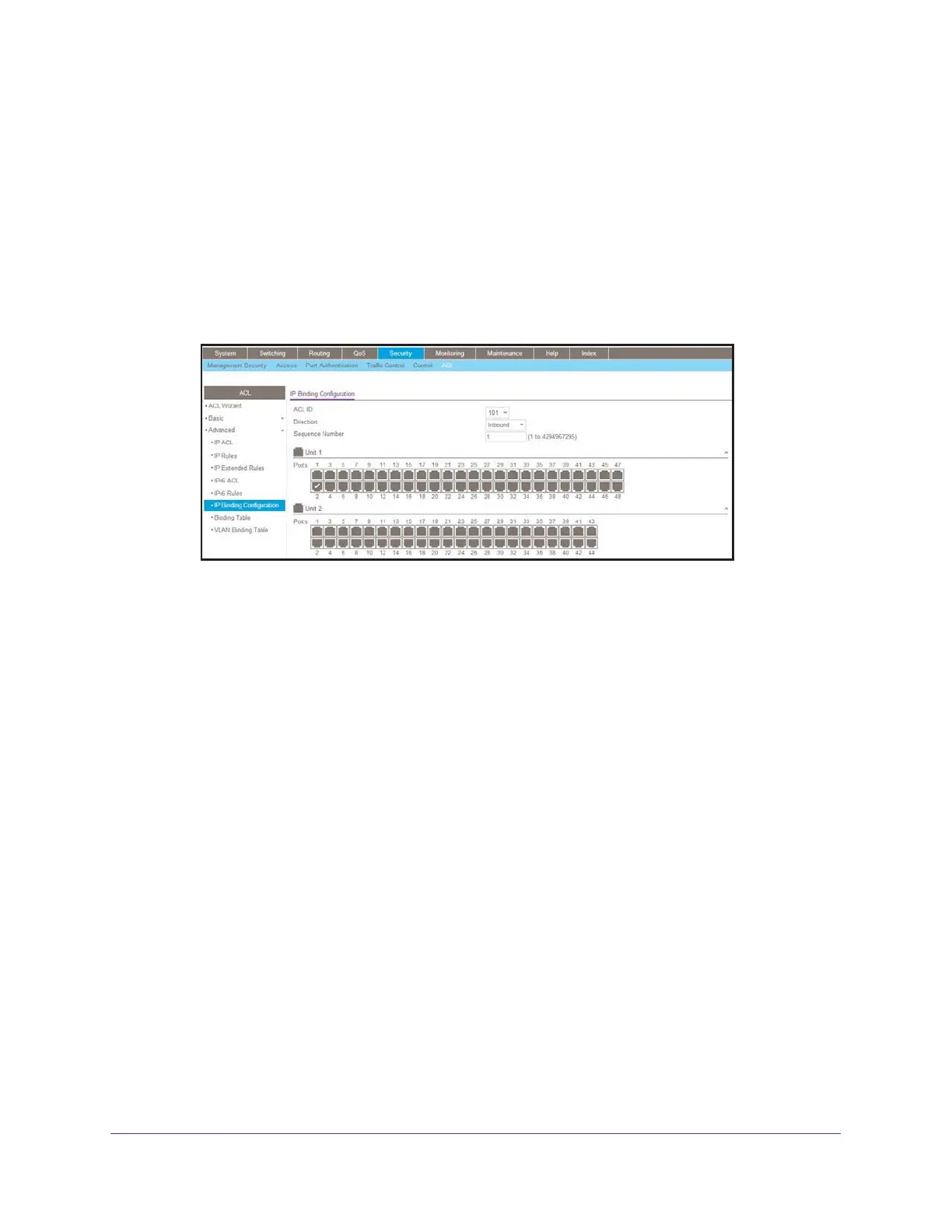

A screen similar to the following displays.
b. Under IP Binding Configuration, enter the following information:
• In the ACL ID list, select 10.
• In the Sequence Number field, enter 1.
c. Click Unit 1. The ports display.
d. Click the gray box under port 2. A check mark displays in the box.
e. Click Apply to save the settings.
