ACLs
191
Managed Switches

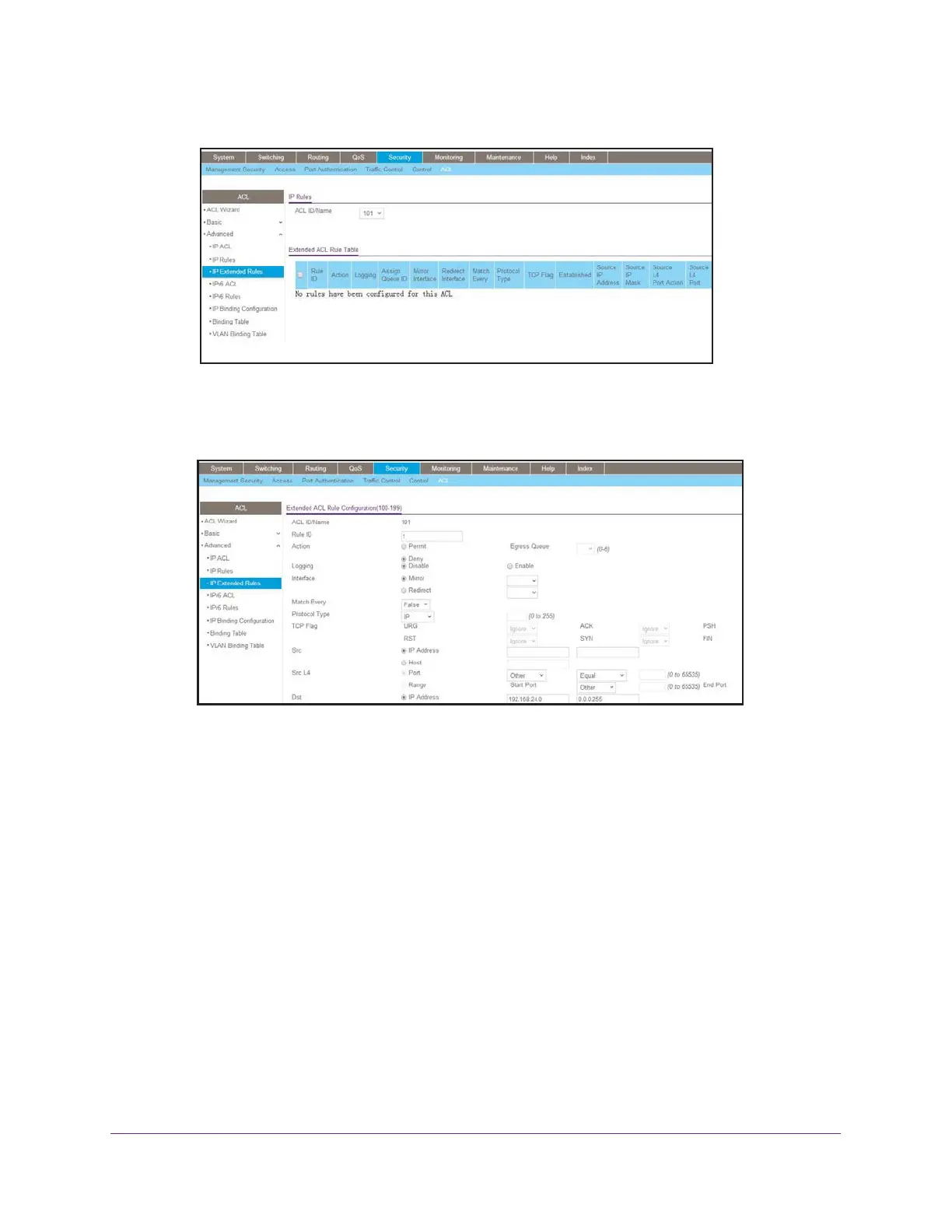

A screen similar to the following displays.
b. Under IP Extended Rules, in the ACL ID field, select 101.
c. Click Add.
A screen similar to the following displays.
d. Under Extended ACL Rule Configuration (100-199), enter the following information
and make the following selections:
• In the Rule ID field, enter 1.
• For Action, select the Deny radio button.
• In the Match Every field, select False.
• In the Destination IP Address field, enter 192.168.24.0.
• In the Destination IP Mask field, enter 0.0.0.255.
e. Click Apply to save the settings.
9. Add and configure an IP extended rule that is associated with ACL 102.
a. Select Security > ACL > Advanced > IP Extended Rules.
