ACLs
192
Managed Switches

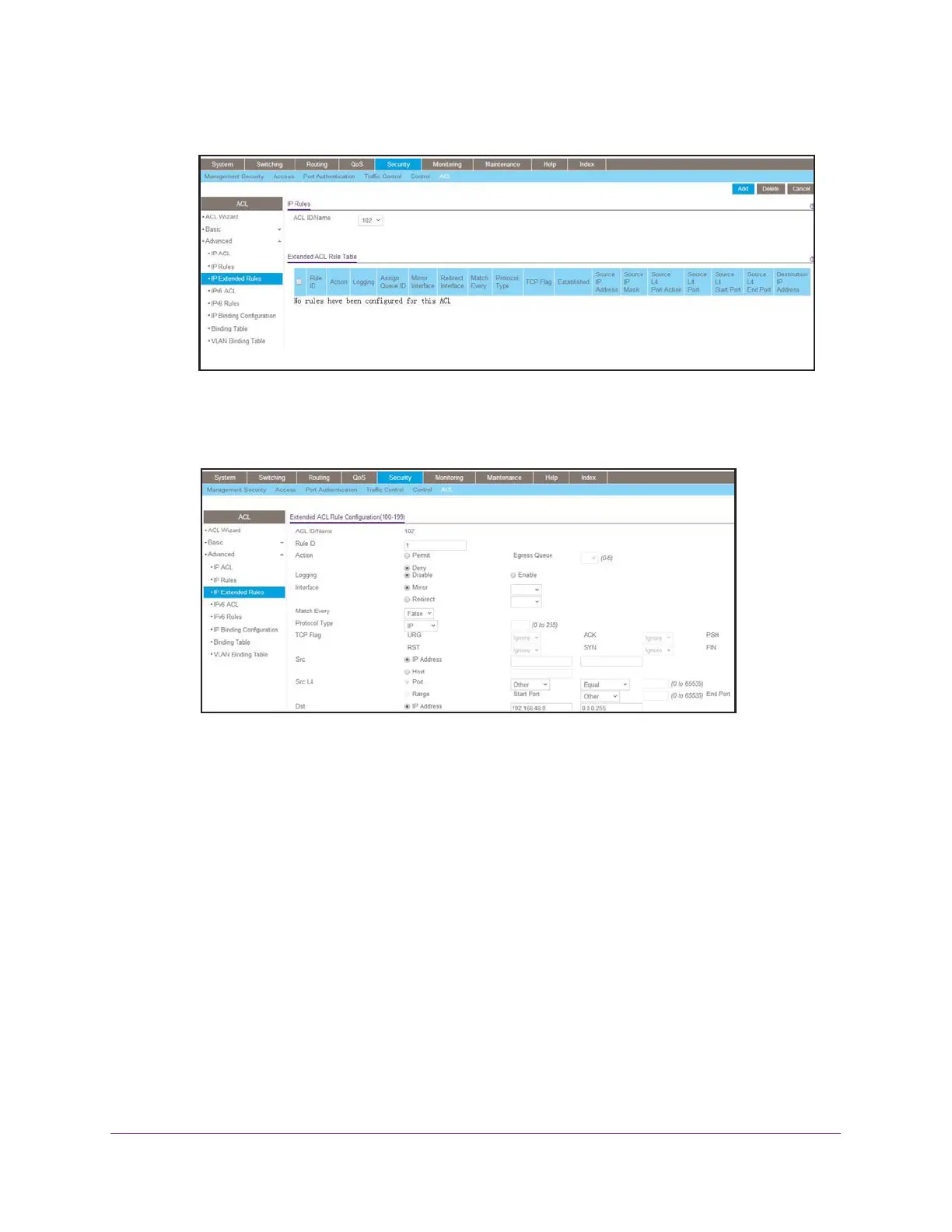

A screen similar to the following displays.
b. Under IP Extended Rules, in the ACL ID field, select 102.
c. Click Add.
A screen similar to the following displays.
d. Under Extended ACL Rule Configuration (100-199), enter the following information
and make the following selections:
• In the Rule ID field, enter 1.
• For Action mode, select the Deny radio button.
• In the Match Every field, select False.
• In the Destination IP Address field, enter 192.168.48.0.
• In the Destination IP Mask field, enter 0.0.0.255.
e. Click Apply to save the settings.
10. Add and configure an IP extended rule that is associated with ACL 103:
a. Select Security > ACL > Advanced > IP Extended Rules.
