ACLs

217

Managed Switches

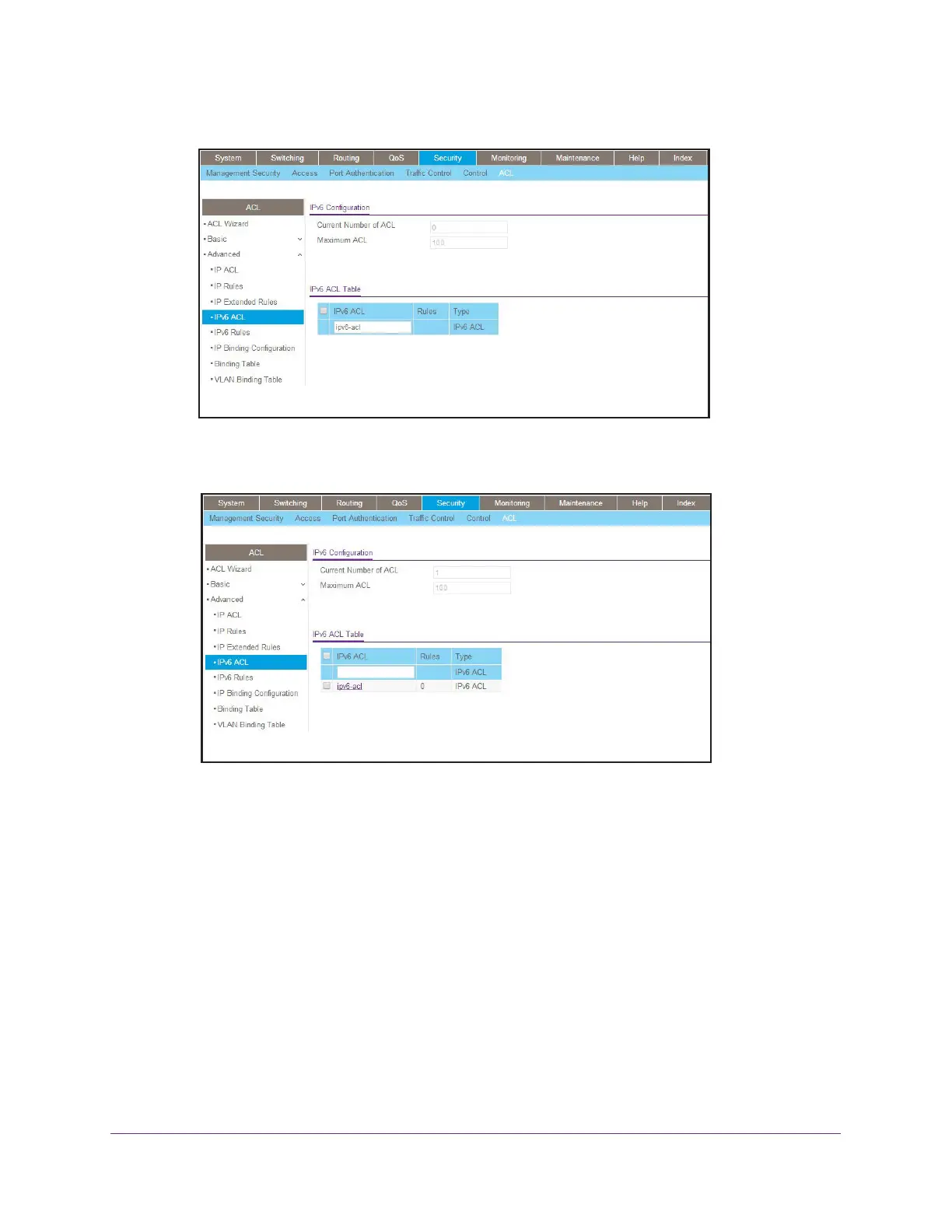

A screen similar to the following displays.

c. Click Add.

A screen similar to the following displays.

2. Define the first rule (1 of 3).

a. Select Security > ACL > Advanced > IPv6 Rules.
