Tunnels for IPv6
541
Managed Switches
5. Configure the IPv6 address for the IPv6 routing interface 2/0/24.

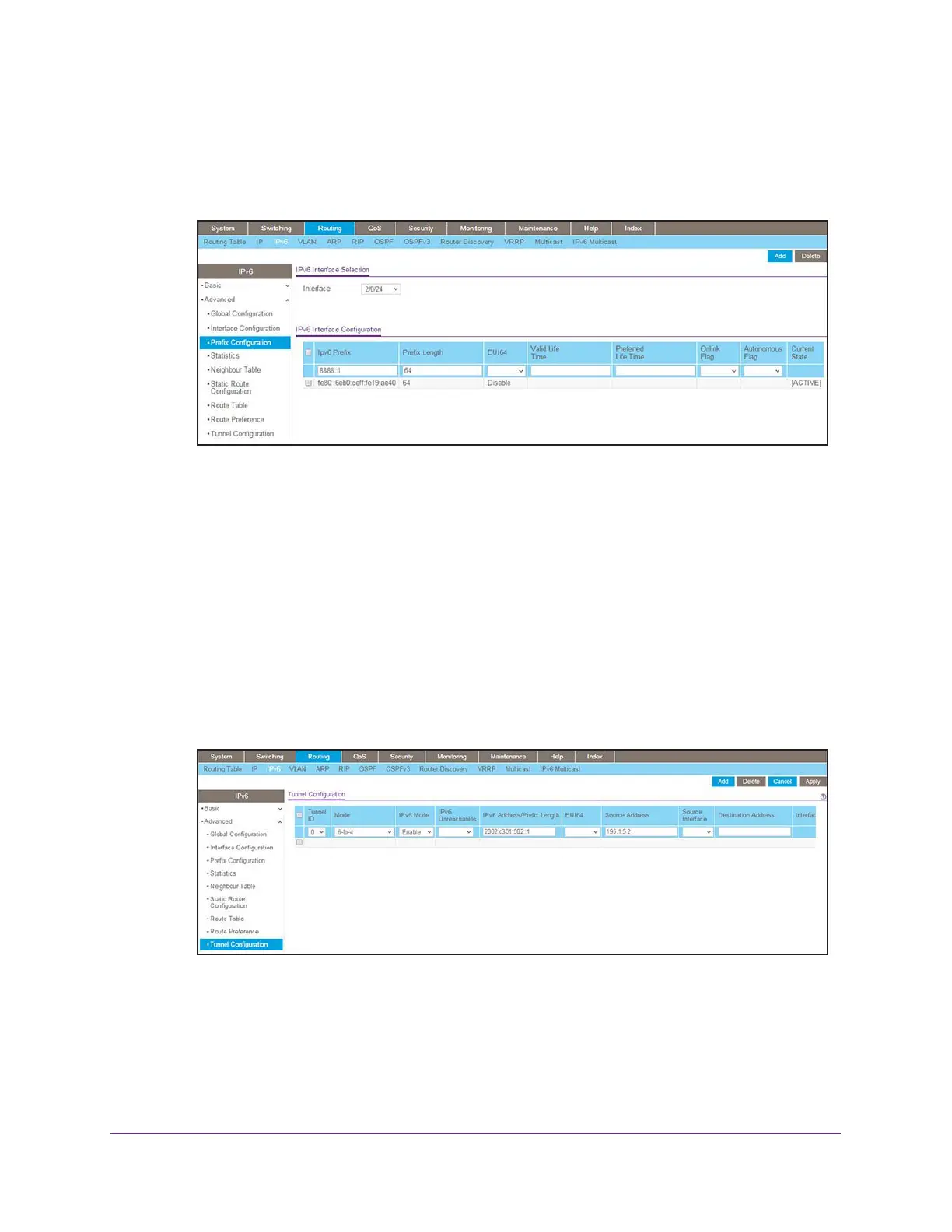

a. Select Routing > IPv6 > Advanced > Prefix Configuration.
A screen similar to the following displays.
b. From the Interface menu, select 2/0/24.
The settings for port 2/0/24 display in the fields in the table heading.
c. Configure the following settings:
• In the Ipv6 Prefix field, enter 8888::1.
• In the Prefix Length field, enter 64.
• In the EUI64 field, select Disable.
d. Click Add.
6. Create a 6to4 tunnel interface.
a. Select Routing > IPv6 > Advanced > Tunnel Configuration.
A screen similar to the following displays.
b. Configure the following tunnel settings:
• In the Tunnel ID field, select 0.
• In the Mode field, select 6-to-4.
• In the IPv6 Mode field, select Enable.
• In the IPv6 Address/Prefix Length field, enter 2002:c301:402::1/16.
To Next Page
