PIM
567
Managed Switches

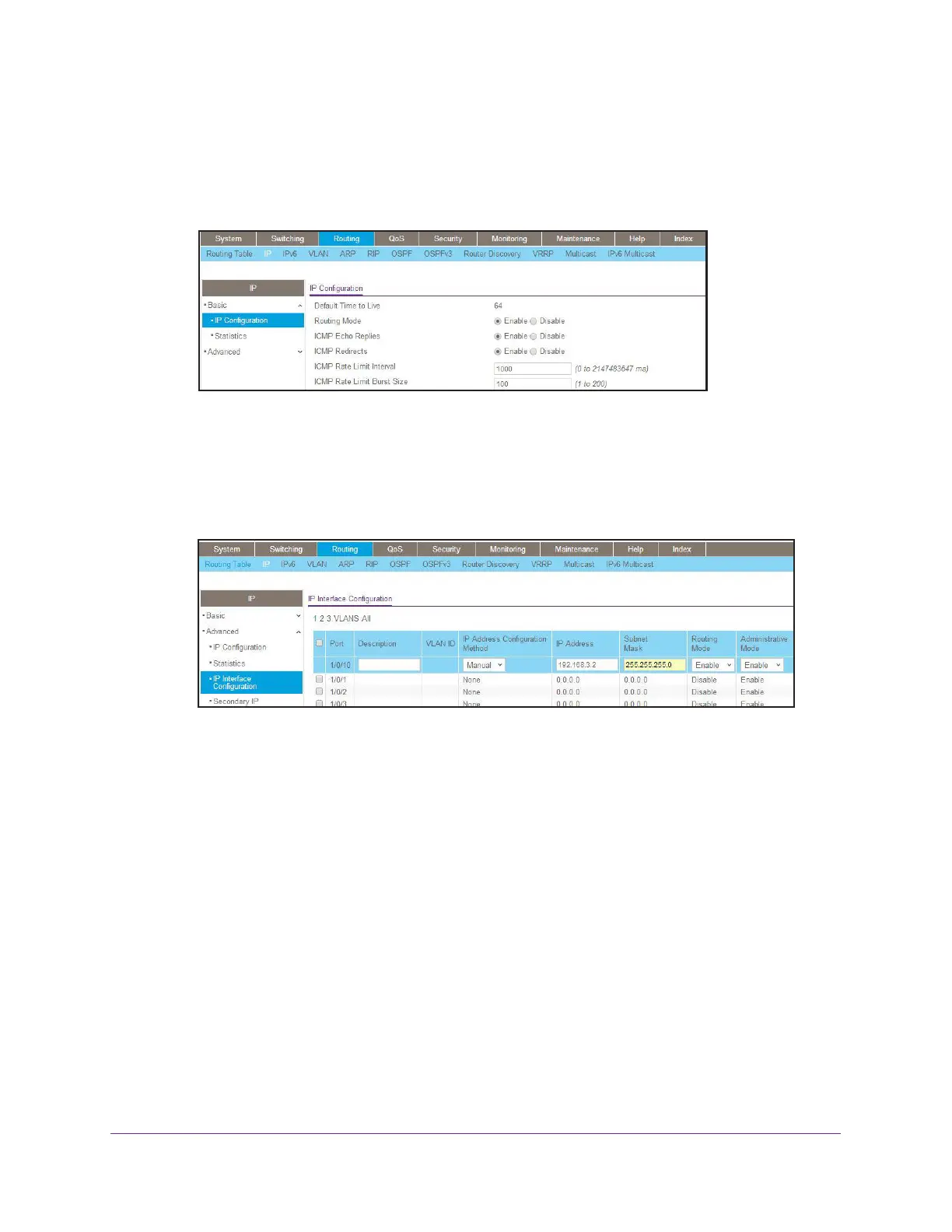

PIM-DM on Switch B:
1. Enable IP routing on the switch.
a. Select Routing > IP > Basic > IP Configuration.
A screen similar to the following displays.
b. For Routing Mode, select the Enable radio button.
c. Click Apply.
2. Configure 1/0/10 as a routing port and assign an IP address to it.
a. Select Routing > IP > Advanced > IP Interface Configuration.
A screen similar to the following displays.
b. Scroll down and select the Port 1/0/10 check box.
Now 1/0/10 appears in the Port field at the top.
c. Enter the following information:
• In the IP Address field, enter 192.168.3.2.
• In the Subnet Mask field, enter 255.255.255.0.
• In the Routing Mode field, select Enable.
d. Click Apply to save the settings.
3. Configure 1/0/11 as a routing port and assign an IP address to it.
a. Select Routing > IP > Advanced > IP Interface Configuration.
