DHCP L2 Relay and L3 Relay
614
Managed Switches

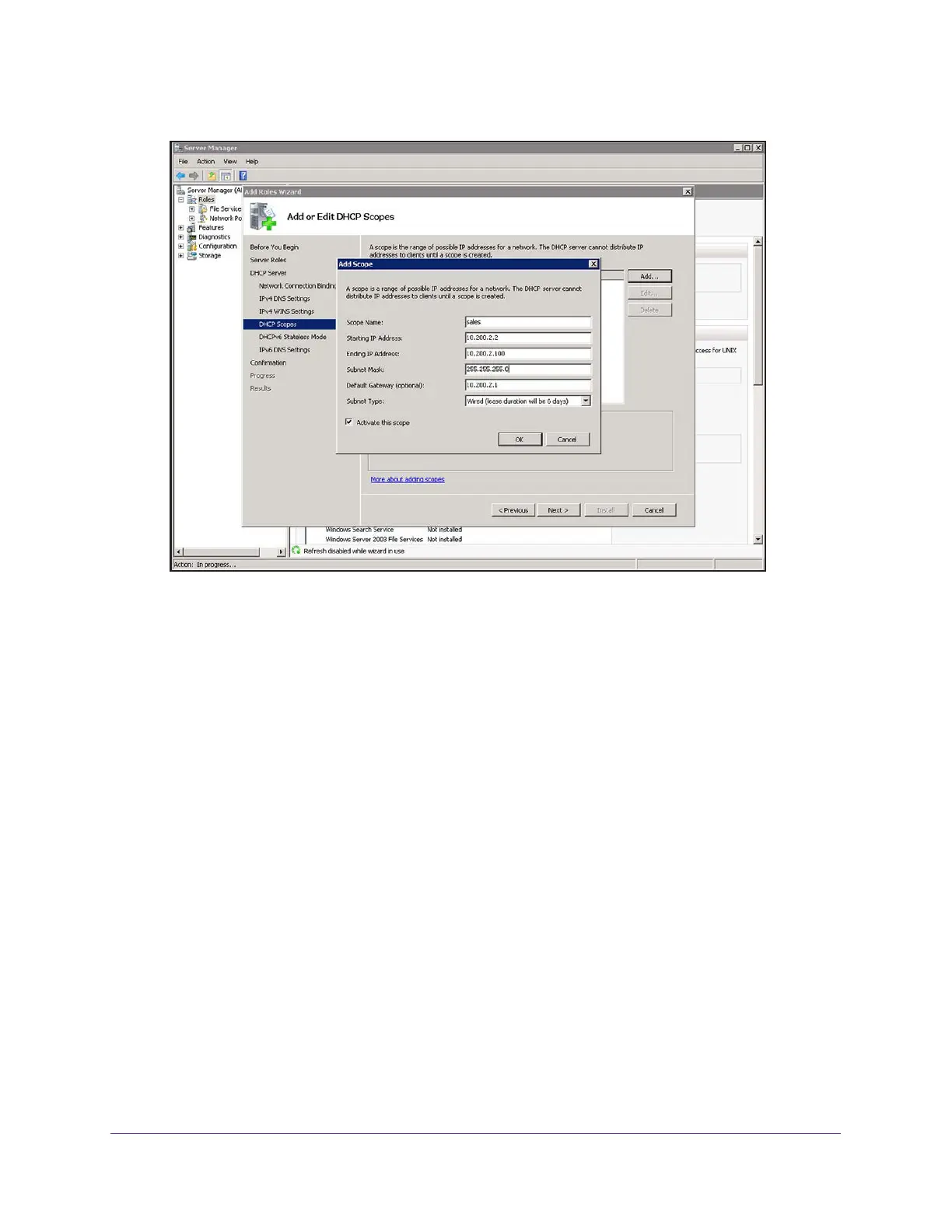

12. In the Add Scope pop-up window, enter the IP address scope information for a sales scope.
In this example, an IP address range of 10.200.2.2–10.200.2.100 is used. In the Default
Gateway (optional) field, an IP address of 10.200.2.1 is used, which is the gateway for
the DHCP client.
13. Click the OK button.
The scope information is saved.
