How to clear a media jam underneath the roll 1, roll 3 and
roll 5 triangular feed unit
Remove a media jam underneath the roll 1, roll 3 and roll 5 triangular feed unit
1.
Remove roll 1 (upper compartment) or roll 3 (middle compartment) or roll 5 in the
lower compartment.
2.
Pull the feed unit underneath the roll holder toward you to remove the unit.

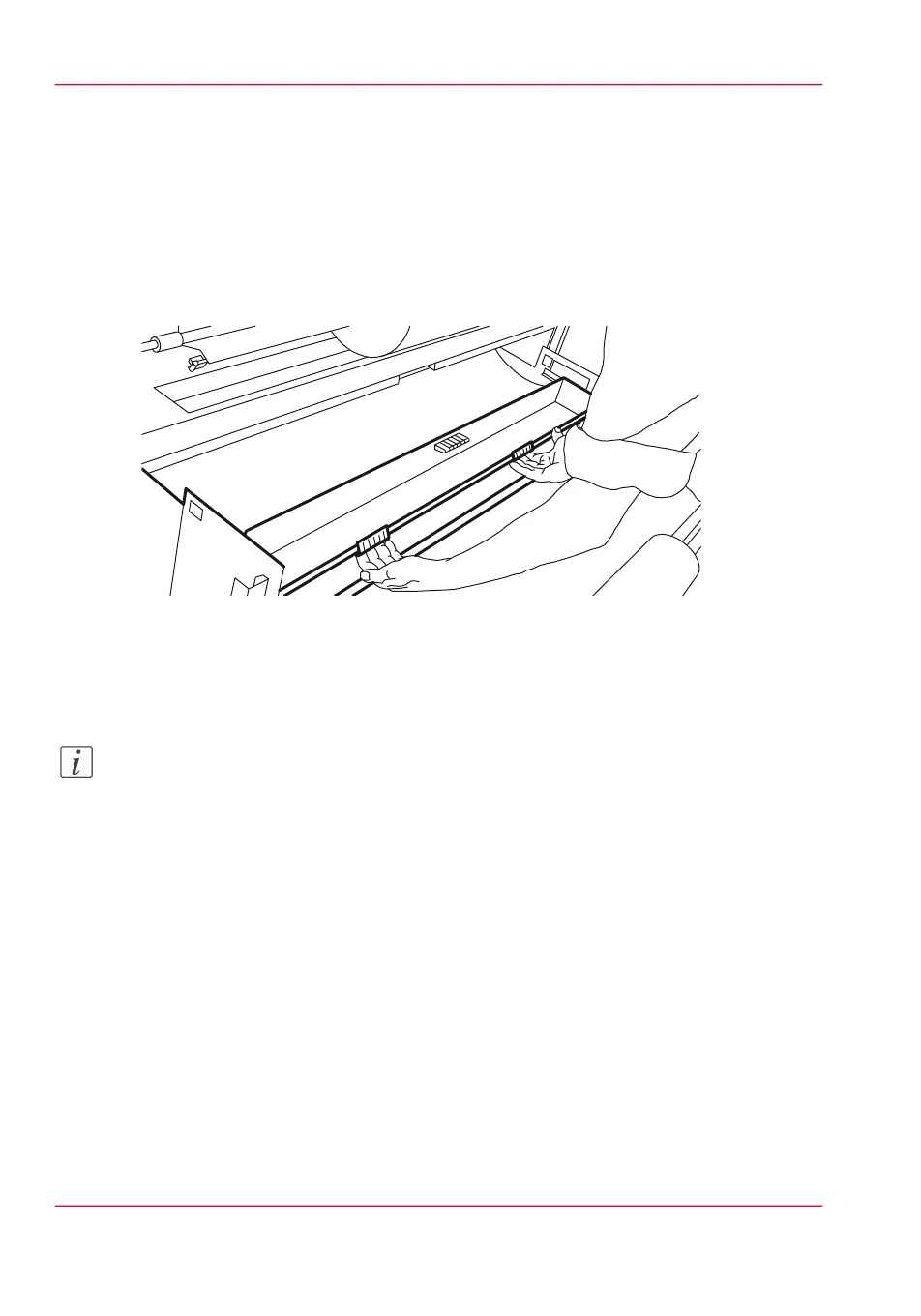

[221] Triangular feed unit
3.
Remove all the pieces of material.
4.
Return the triangular feed unit correctly.
5.
Close the paper compartment.
Note:
If the covers continue to flash on the operator panel, check the roll feed section again.
Chapter 12 - Solve problems306
