Printer operator panel display
Illustration

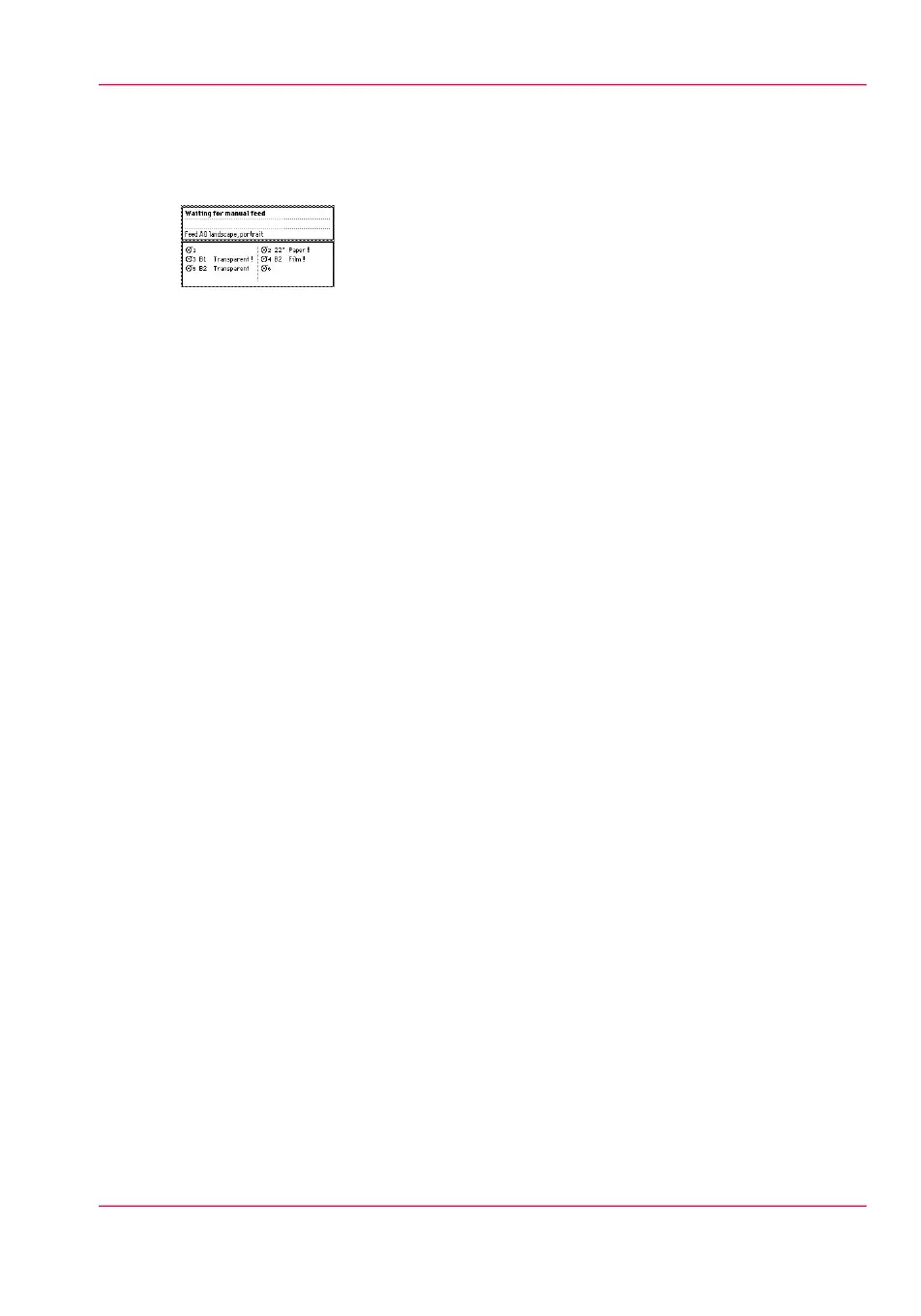

[17] Roll indication on printer operator panel display
The printer operator panel display shows the current status of the printer. It provides the
following information.
•
Status information (e.g. “Preparing for run”, “Ready to print”, “Warming up”).
The following message types may appear during normal operation:
- Status/action message: indicates the current status of the printer plus the action to
be taken. For example: “Roll 1 empty”.
- Warning message: during a warning message the printer will continue to operate,
but the print quality may not be optimal. For example: “Fill toner”.
- A graphical overview of available rolls, including the material type and size used by
each roll.
•
Indication that a particular roll is empty. An empty roll is represented by a dotted roll
symbol.
•
Remaining length indication for each roll.
•
Active roll indication.
•
In the event of an error, a graphical representation of any error location (cover or
panel) is displayed together with instructions on how to solve the problem.
Chapter 2 - Get to know the Océ PlotWave 900 system 35
Printer operator panel display
