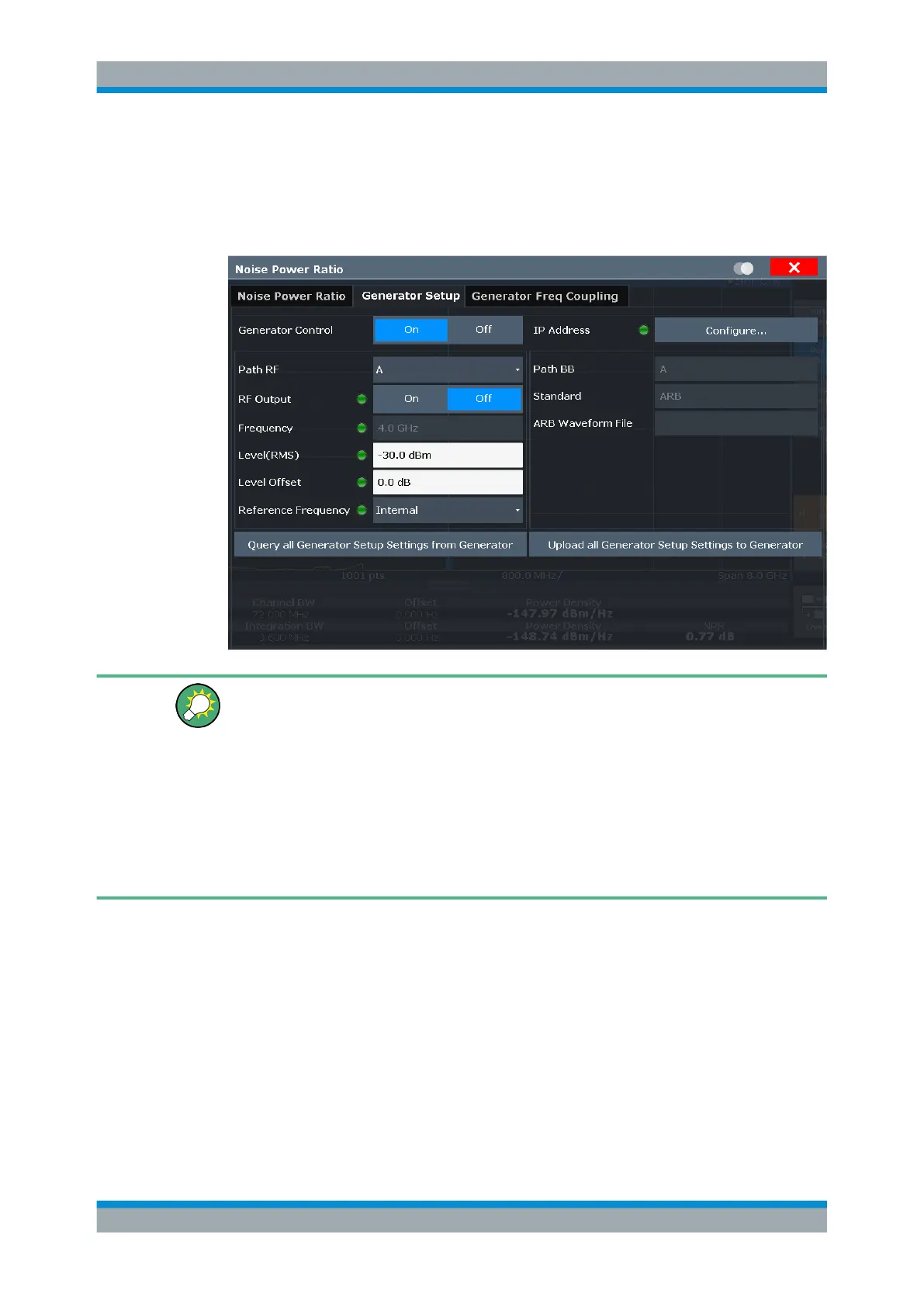

The general settings required to control a connected signal generator by the R&S FSW
are defined here. The control settings are only available if a connection to a signal gen-
erator has been established.
The individual settings are only available if generator control is enabled.
For each setting, an LED indicates whether the setting was adjusted on the connected
generator successfully. Thus, you can quickly detect the cause of possible errors.
The LED indicates the following states:
●
green: connection established and all settings valid
●
red: control error, for example because a specified value cannot be applied on the
signal generator
●
gray: signal generator control off
If you change the setting on the generator manually after an automatic setting, the LED
might not indicate the correct state.
Remote command:
CONFigure:GENerator:NPRatio:STATe:CSTate? on page 913
Signal Generator IP Address...................................................................................... 228
└ IP Address / Computer Name.......................................................................228
└ Connect/Disconnect......................................................................................229
Generator Control State (FSW -> SMW).....................................................................229
Path RF/ Path BB........................................................................................................229
RF Output State.......................................................................................................... 229
Frequency................................................................................................................... 230
Level (RMS)................................................................................................................ 230
