For more information see Chapter 7.13.3.1, "Resolution Bandwidth and Filter Types",

on page 334.

Remote command:

Filter type:

[SENSe:]BANDwidth[:RESolution]:TYPE on page 1032

Filter bandwidth:

[SENSe:]BANDwidth[:RESolution] on page 1031

7.13.4.3 LISN Control Settings

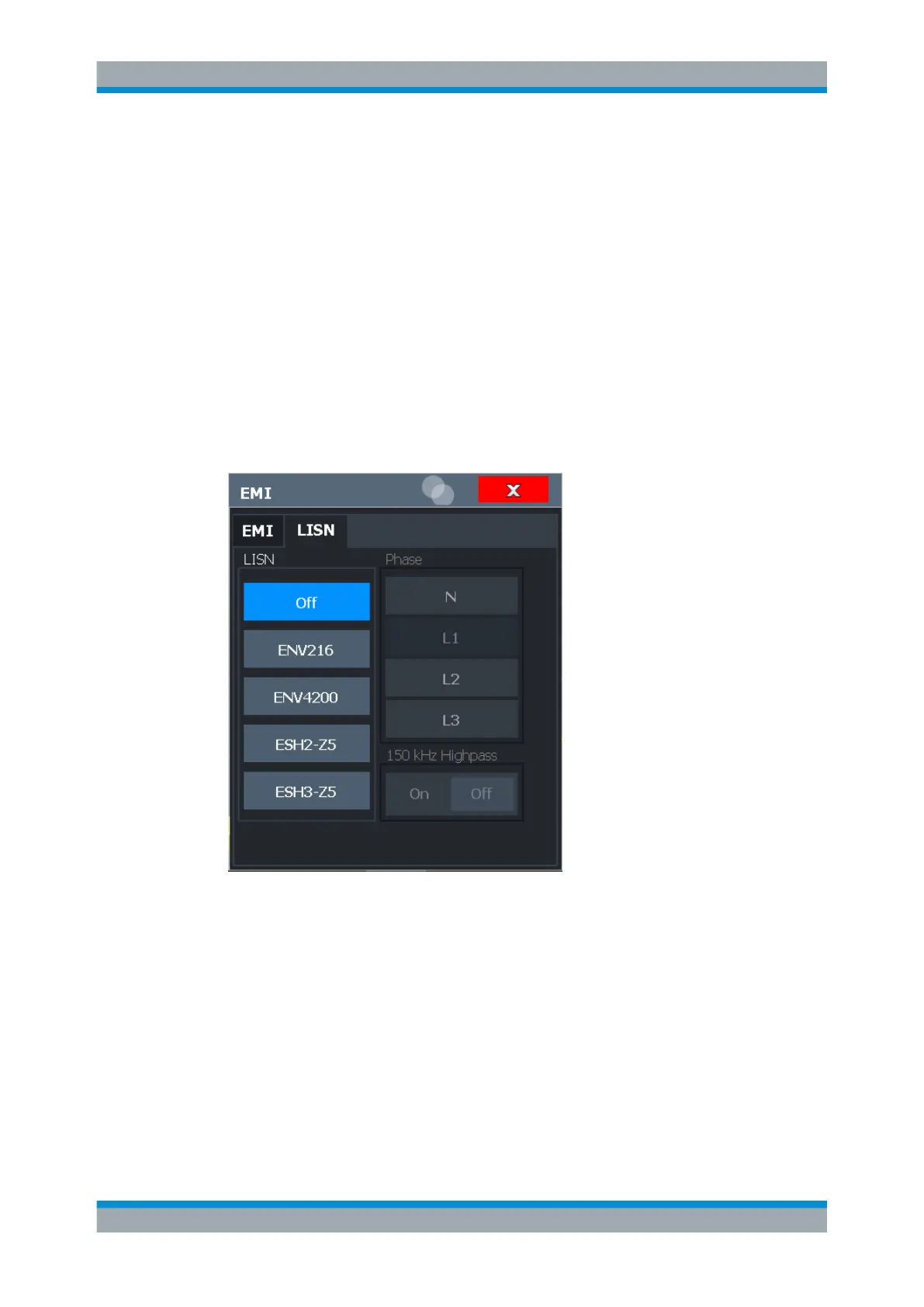

Access: [MEAS CONFIG] > "LISN Config"

For measurements with power lines, the following settings are available for the

R&S FSW to control which phase of the LISN is to be tested (e.g. for EMI measure-

ments). LISN control requires the EMI measurement (R&S FSW-K54) option.

For more information see Chapter 7.13.3.4, "Controlling V-Networks (LISN)",

on page 339.

LISN Type................................................................................................................... 349

Phase..........................................................................................................................350

150 kHz Highpass.......................................................................................................350

LISN Type

Selects the network type and activates output to the network via the user port of the

R&S FSW. The network type determines the supported phases (see Table 7-20).

"Off" disables LISN control and output.

Remote command:

INPut<ip>:LISN[:TYPE] on page 999
