Common Analysis and Display Functions
R&S
®
FSW
601User Manual 1173.9411.02 ─ 43
Color Map Settings
Access: "Overview" > "Analysis" > "Traces" > "Spectrogram" > "Color Mapping"
or: [TRACE] > "Spectrogram Config" > "Color Mapping"
For more information on color maps see "Color Maps" on page 594. For details on
changing color mapping settings see "How to Configure the Color Mapping"
on page 604.
In addition to the available color settings, the dialog box displays the current color map
and provides a preview of the display with the current settings.

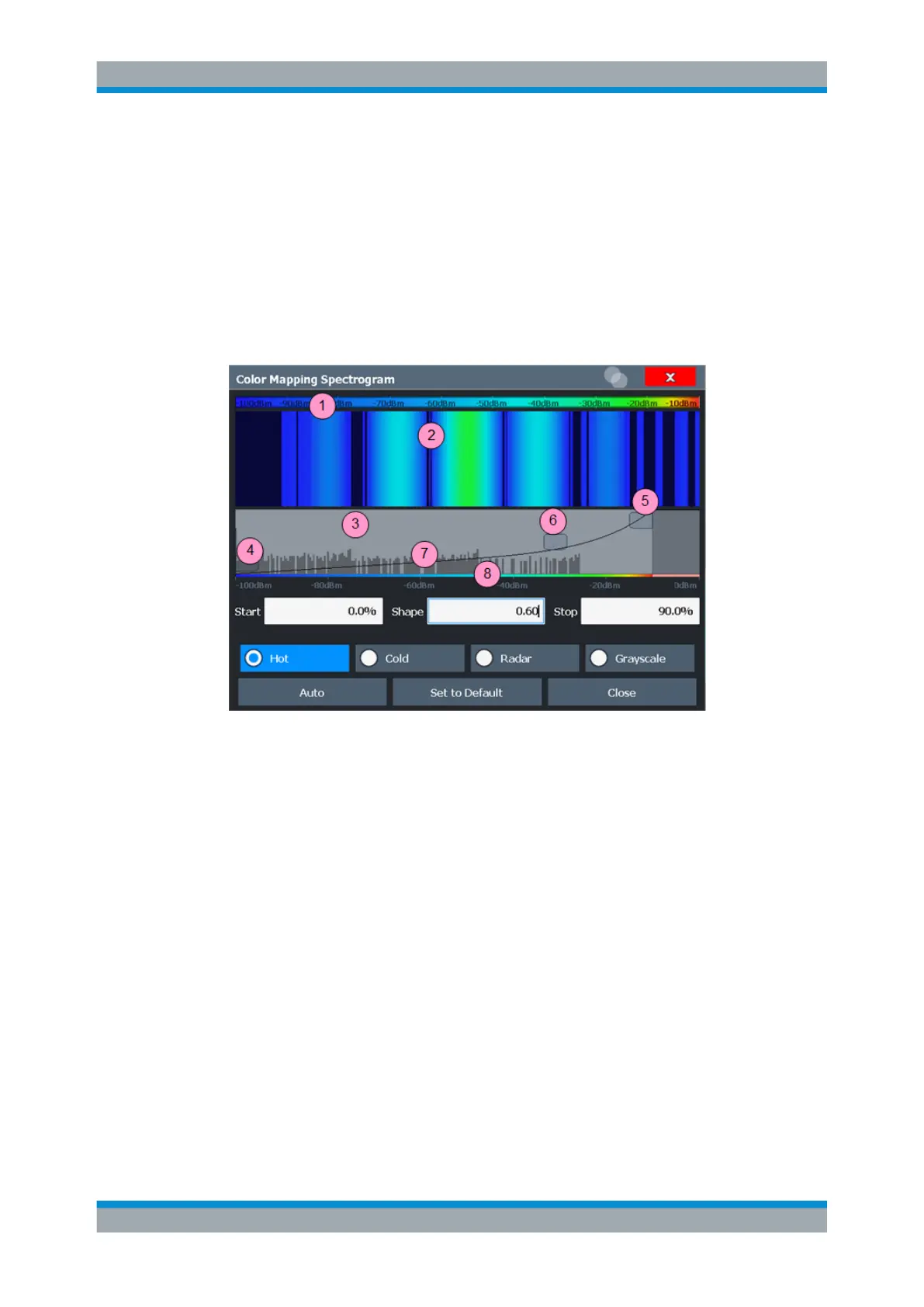

Figure 9-18: Color Mapping dialog box
1 = Color map: shows the current color distribution
2 = Preview pane: shows a preview of the spectrogram with any changes that you make to the color
scheme
3 = Color curve pane: graphical representation of all settings available to customize the color scheme
4/5 = Color range start and stop sliders: define the range of the color map or amplitudes for the spectrogram
6 = Color curve slider: adjusts the focus of the color curve
7 = Histogram: shows the distribution of measured values
8 = Scale of the horizontal axis (value range)
Start / Stop.................................................................................................................. 601
Shape..........................................................................................................................602
Hot/Cold/Radar/Grayscale.......................................................................................... 602
Auto.............................................................................................................................602
Set to Default.............................................................................................................. 602
Close...........................................................................................................................602
Start / Stop
Defines the lower and upper boundaries of the value range of the spectrogram.
