SATO CL6NX Programming Reference

217

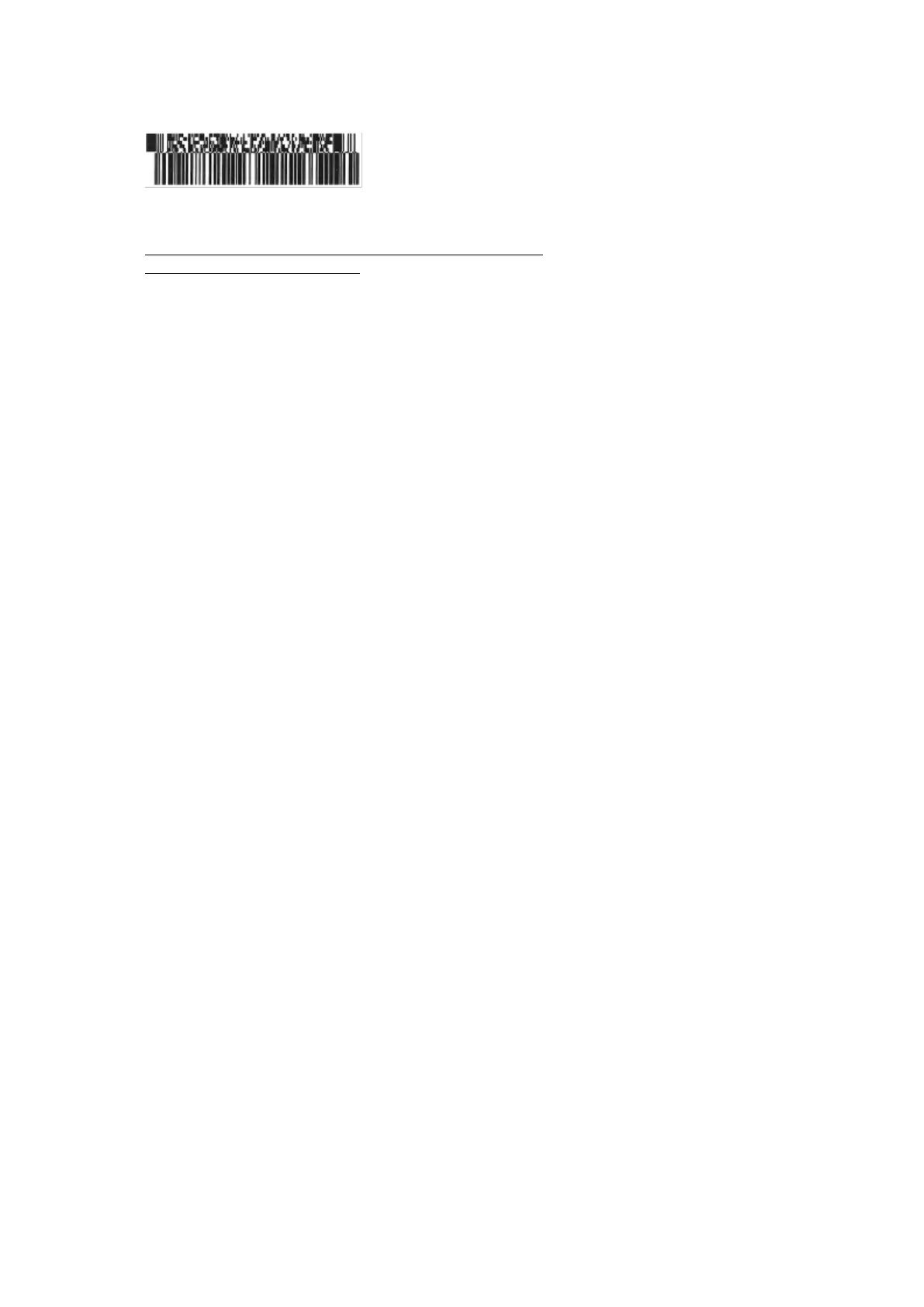

[Coding Example13]
GS1-128 Composite (CC-C)
<A>
<V>100<H>100
<EU>120402600030123456789012340|02130123456789
093724#101234567ABCDEFG
<Q>1
<Z>
[Supplementary Explanation]
• Parameter varies depending on one-dimensional barcode type.
Segment width can be specified only for DataBar Expanded Composite (CC-A/CC-B) (EU06).
Barcode height can be specified only for GS1-128 (UCC/EAN-128) (EU11, EU12).
• If the value is not set to the data portion, composite symbol will not be printed.
• Parameter for print data is available up to 2361 digits including 1D barcode data and 2D
barcode data as a specification for this command. Available number for 2D barcode data varies
depending on the type of 1D barcode and/or mixture of alphabets and number. When specified
data exceed the maximum digits, barcode may not be printed properly.
• Entire size of composite symbol changes depending on the specification of narrow bar width.
• If composite symbol exceeds the printing area, only the portion located within the area will be
printed, and a scanner might read the value of such composite symbol occasionally.
• Height and width of 2D barcode of the composite symbol is adjusted by 1D barcode data size.
When the width of 1D barcode is narrow, it cannot be printed even the size of data is less than
the maximum number of digit.
• Print of HRI cannot be designated with this command.
• Rotation <%> is available, and Enlargement <L> is invalid.
• When specifying 11 (production date), 12 (term of payment), 13 (packing date), 15 (sales
period), 17 (warranty period) for application identifier, set correct data YYMMDD. When the
incorrect date is set, print result is not guaranteed.
• When specifying GS1 DataBar as a barcode type, specify 2D Barcode data with the format
based on application identifier.
• GS1 DataBar Expanded Composite (CC-A/CC-B) is stacked automatically by segment width
and data size and printed as GS1 DataBar Expanded Stacked (CC-A/CC-B).
• Barcode generation module has been modified for improvement. How the generated image
looks may differ due to the change, however the read result is the same.

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
