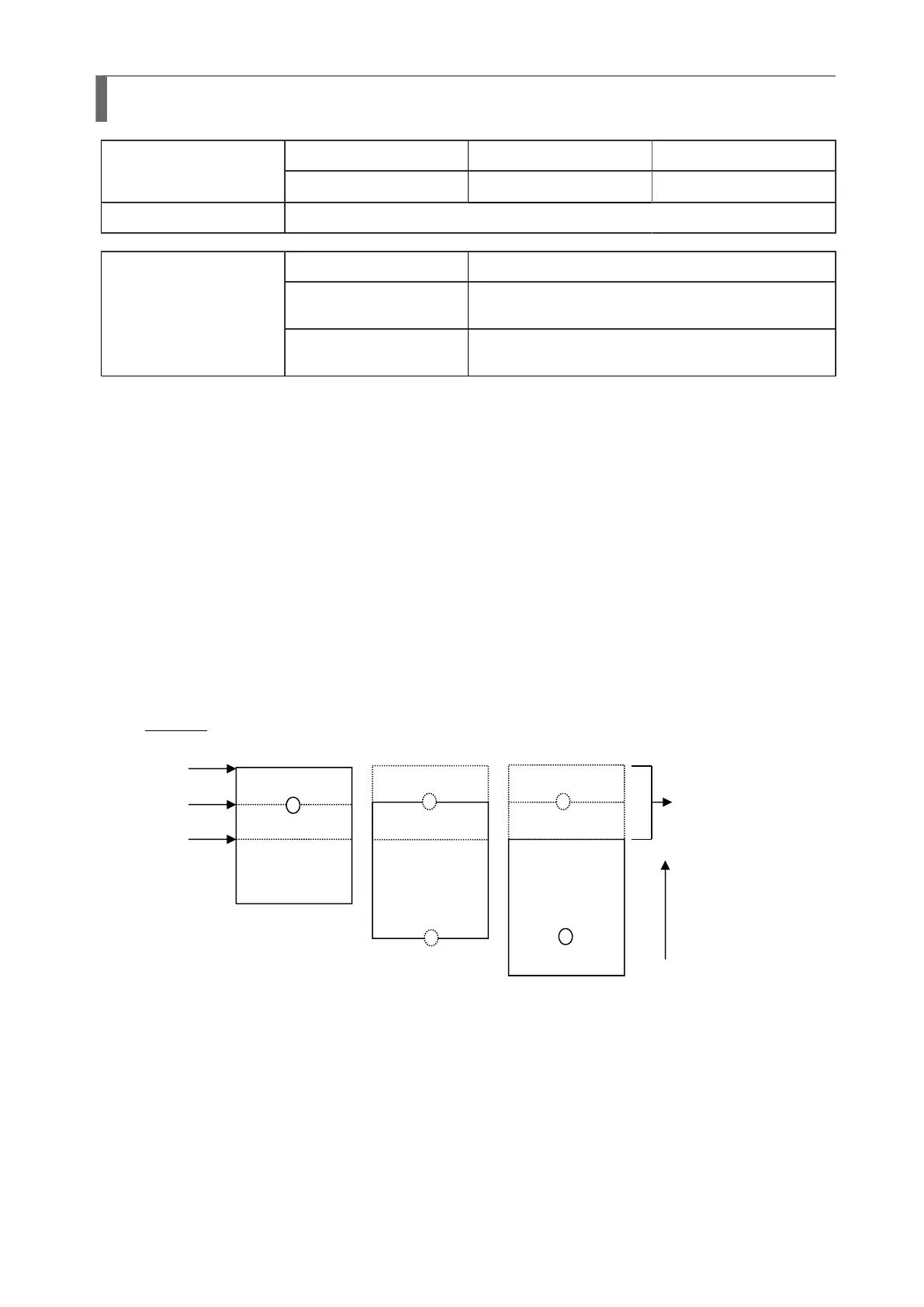

[ESC+#] Base Reference Point (CL4NX Only)
ESC # ParameterHexadecimal code
<1B>
16
<23>
16
abbb
初期値 なし
When the power is OFF The set parameter is maintained.
Valid range within items The set parameter is valid until next specification is
made.
Valid range and term of
command
Valid range between items The set parameter is valid until next specification is
made.
[Function]
Specify the base reference point in vertical direction.
[Format]
<#>abbb
Parameter
a [Moving Direction]
+: Feed Direction
-: Reverse Direction
b [Distance in dots]
Valid range: 000 to 600 (in dots)
[Coding Example]
<A>
<#>+040
<Z>
#+040
#000
#-040
Feed Direction
Print reference position
Cut reference position
[Supplementary Explanation]
Initial value of the reference position is 0 dot.
The position specified with <
> command is a start position that measures Y value described in
“CL4NX Inlay Configuration Guide”.
When parameter “a” [Moving direction] = "-: Reverse Direction" , do not specify 58 mm or more
in total with other offset adjustment value. If it is set to 58 mm or more, it does not stop properly.
