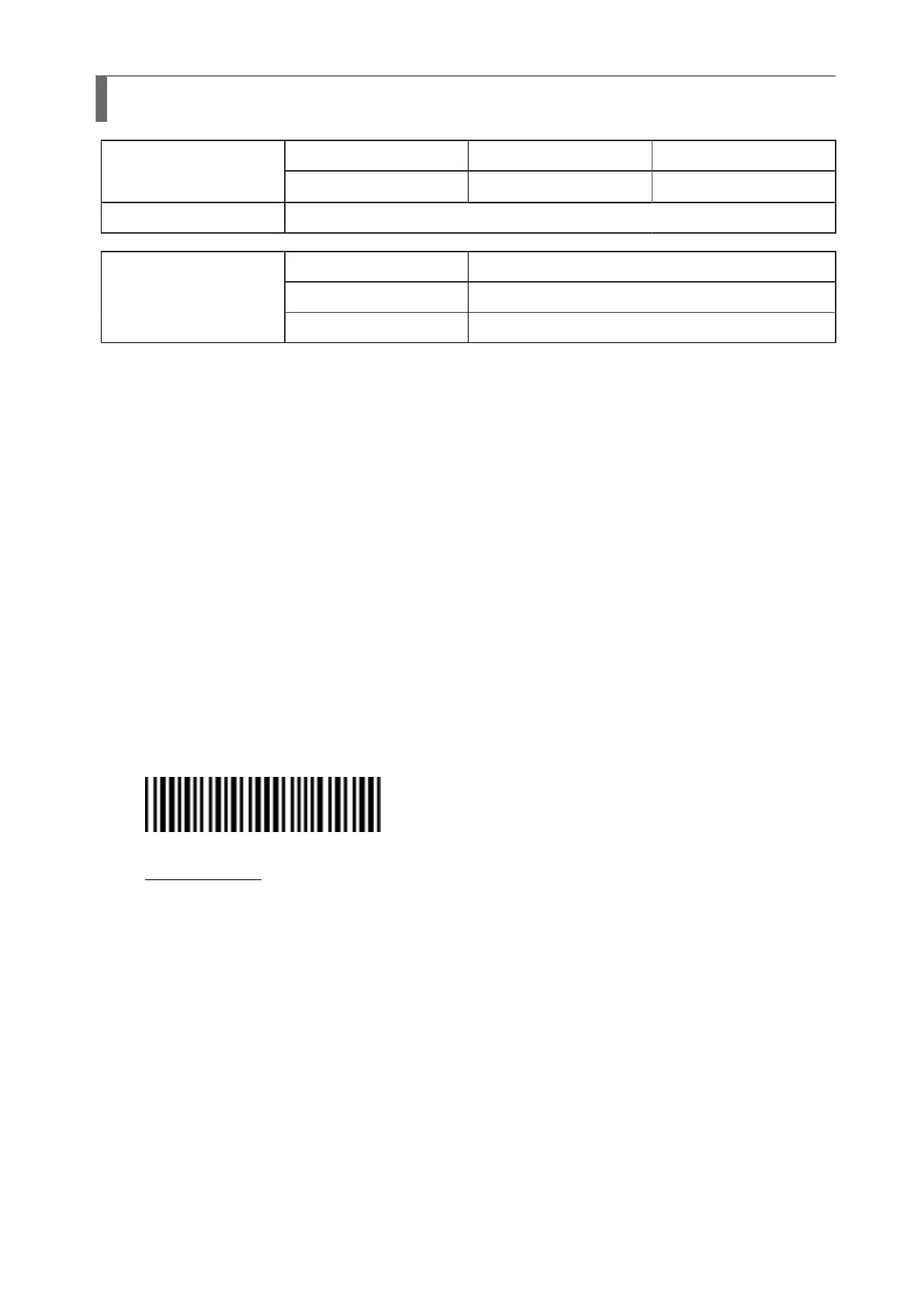

[ESC+BT] Barcode Ratio Registration
ESC BT ParameterHexadecimal code
<1B>
16
<42>
16
<54>
16
abbccddee
Initial value Nil
When the power is OFF The set parameter is not maintained.
Valid range within items The set parameter becomes invalid.
Valid range and term of
command
Valid range between items The set parameter becomes invalid.
[Function]
Specifies the ratio of the narrow bar in regard to the wide bar.
[Format]
<BD>abbccddee
• Parameter
a [Barcode type]
0:
CODABAR(NW-7)
1:
CODE39
2:
ITF
5:
Industrial 2of5
6:
Matrix 2of5 (Coop2of5, NEC2of5)
b [Narrow space] = Valid range : 01 to 99 dots
c [Wide space] = Valid range : 01 to 99 dots
d [Narrow bar] = Valid range : 01 to 99 dots
e [Wide bar] = Valid range : 01 to 99 dots
[Coding Example]
Barcode type: CODE39, Narrow space: 03, Wide space: 05, Narrow bar: 03, Wide bar: 05
<A>
<BT>103050305
<V>100<H>100<BW>01233*ABCD*
<Q>2
<Z>
[Supplementary Explanation]
• To print barcode with specified ratio, insert "Barcode print by specified ratio" command <BW>
after this command.
• When <BW> and the Print Quantity <Q> command are not specified, only the registration of bar
width ratio of narrow and wide bars will be performed.
• Only one ratio can be registered.
• If the data other than specified is set, this will not be registered due to command error.
• Matrix 2of5 is expressed as Coop2of5/NEC2of5.
