SATO CL6NX Programming Reference

642

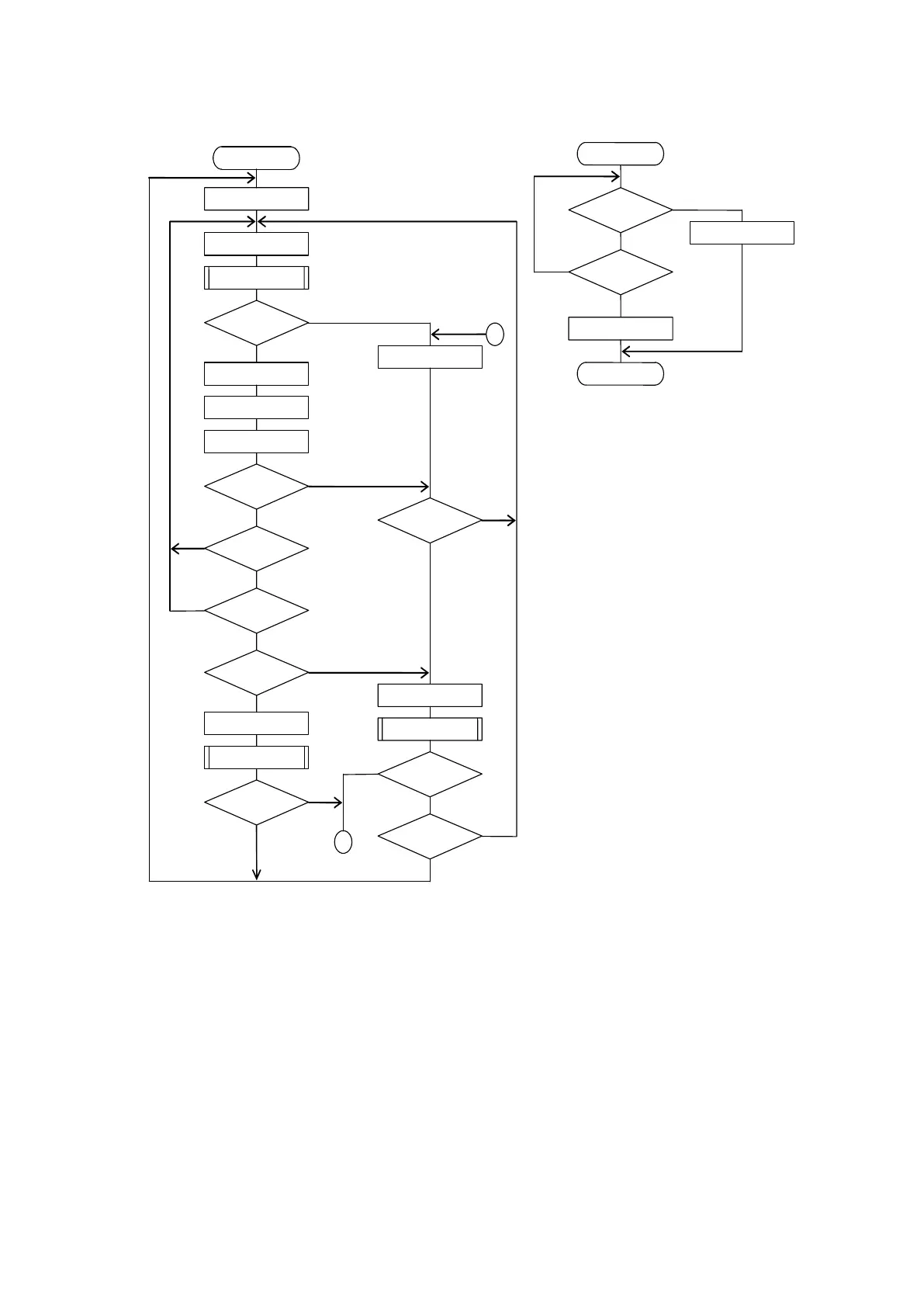

Reference flow chart
Please refer to the following flow chart for creating program at host with this protocol.
Power ON
Print data set
Send ENQ
Time out?
Offline?
Buffer near full?
Send print data
Send CAN
1
Yes
Yes
Yes
Yes
No
No
No
No
Display status
Error ?
Yes
Cancel?
Cancel?
Yes
Yes
No
No
No
1
Loop
Display ID number
Display print Qty
Loop
Time out?
Yes
No
Display status
Loop
Time out?
Yes
No
ACK?
Receive status?
Yes
No
No
Time out?
Yes
Loop
RETURN
Time out Set
Status Set
*
* Please make sure that error in this product has been cleared by ENQ then send print data when this product
detects an error by checking status.
Parent topic Status 3

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
