SATO CL6NX Programming Reference

741

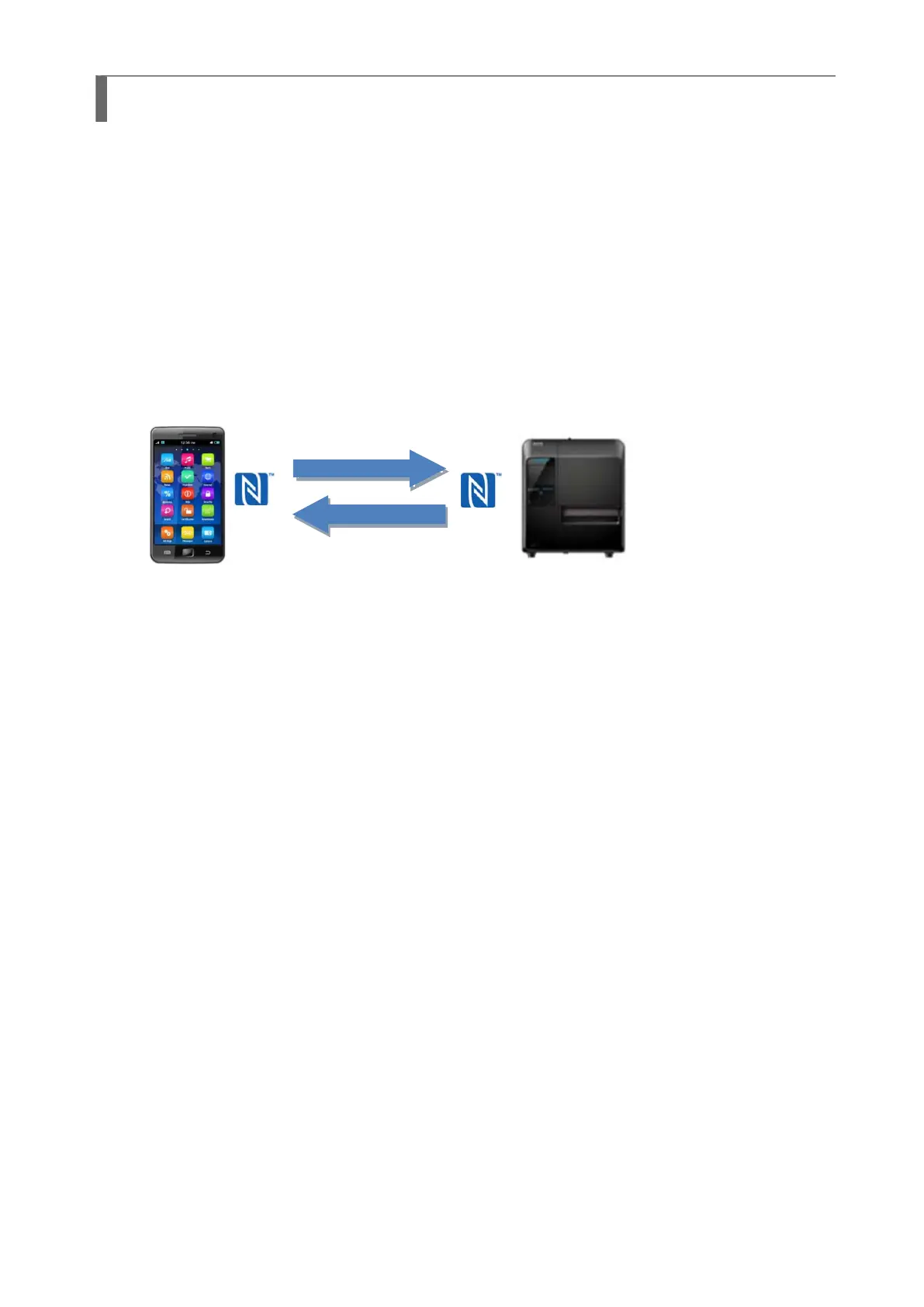

Tag mode
This tag mode works when the power of printer is turned off.
It performs read/write from/to NFC tag memory (888 bytes).
Information on printer is written to NFC tag memory when the power of printer is turned off so that
device can obtain the information.
When the information on printer is written to NFC tag memory, the content of NFC tag memory is
sent to printer after turning on the power of printer.
Purpose: Printer setting, Information acquisition
Note
It is necessary to read information on device before writing to acquire information on device because
area to be used for reading and writing is the same.
Valid range of NFC tag memory is 800 bytes.
Setting information
Information on device
Data format
Transmission sequence
Parent topic NFC

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
