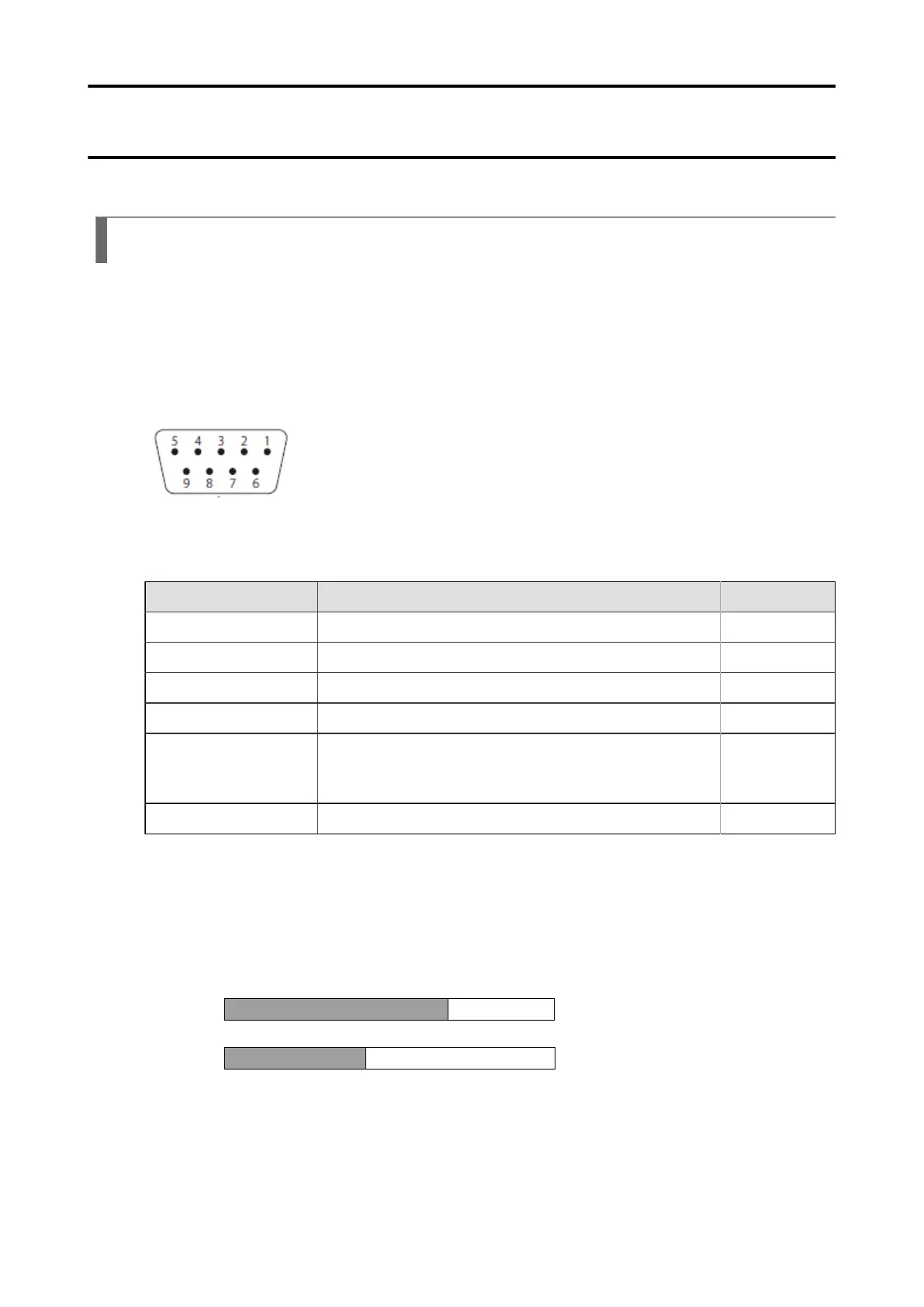

Basic specification
This interface complies with the RS-232C standard.
Various communication settings are available by the interface mode of the printer or the printer setup
tool.
Interface
D-sub 9pin Female
Communication settings
Setting range in the communication settings mode
Item Configuration Default
Data bit length 7, 8 (bit) 8 bit
Parity bit NONE, ODD, EVEN NONE
Stop bit 1, 2 (bit) 1 bit
Baud rate 2400, 4800, 9600, 19200, 38400, 57600, 115200 (bps) 115200 bps
Protocol READY/BUSY, XON/XOFF, Status 2, Status 3, Status 4, Status
5
Refer to Communication protocol for details.
Status 4
BCC check for Status 5 Enable / Disable Disable
Synchronization method
Asynchronous method
Maximum receive buffer capacity
2.95 MB
Near full occures
Near full release
0 M B
2.95 MB
0.95 MB rem ains
1. 95 M B re mai ns
Code
ASCII (7bit) Graphic (8 bit)
