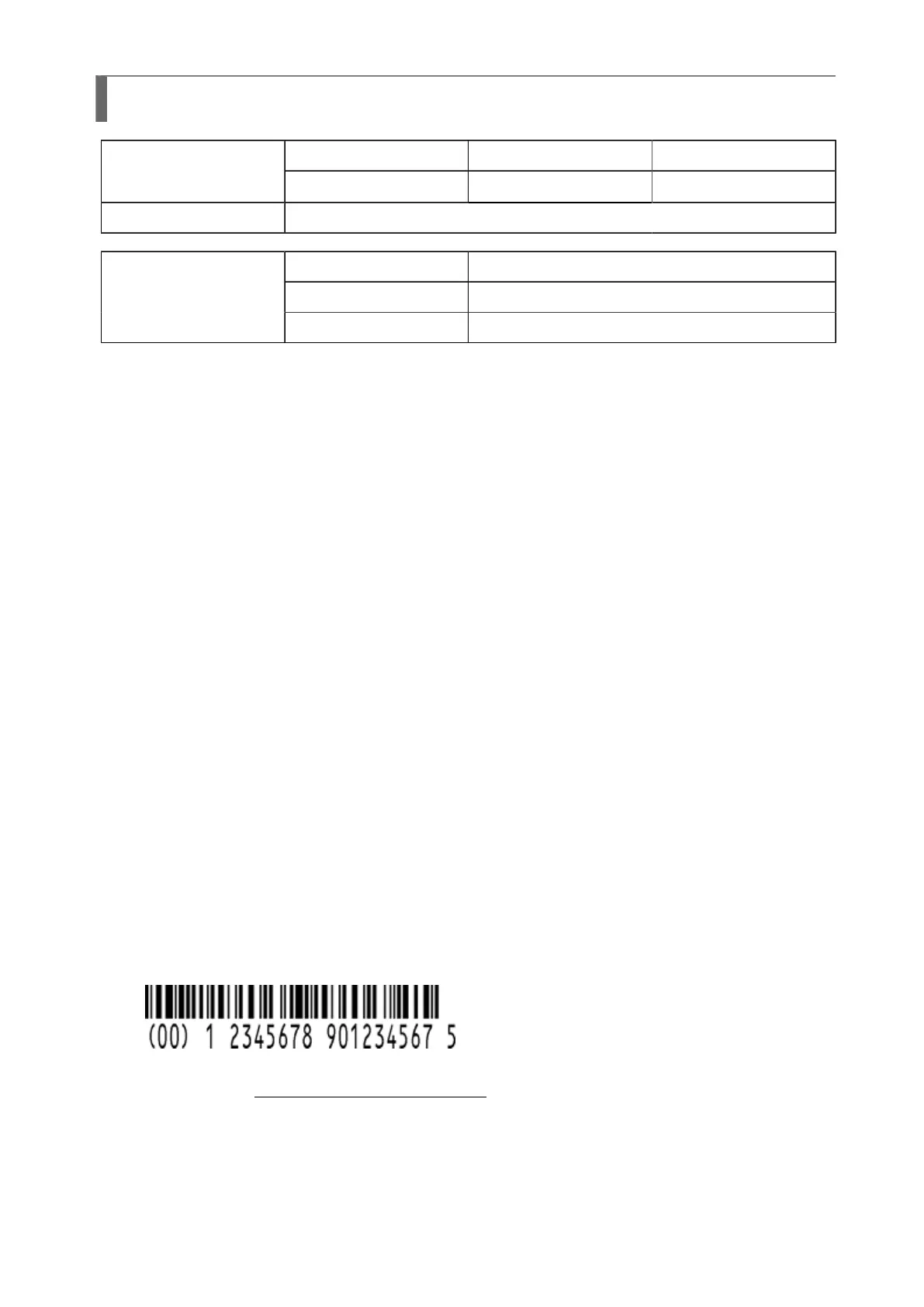

[ESC+BI] GS1-128 (UCC/EAN128) (Standard Carton ID Only)
ESC BI ParameterHexadecimal code
<1B>
16
<42>
16
<49>
16
aabbbcn...n
Initial value Nil
When the power is OFF The set parameter is not maintained.
Valid range within items The set parameter becomes invalid.
Valid range and term of
command
Valid range between items The set parameter becomes invalid.
[Function]
Specifying GS1-128 (UCC/EAN128) barcode for Standard Carton ID.
[Format]
<BI>aabbbcn...n
• Parameter
a [Narrow bar] = Valid Range : 01 to 36 dots
b [Height of Barcode] = Valid Range : 001 to 999 dots
c [Barcode expository font specification]
0: No HRI
1: HRI is available (Upper part of barcode)
2: HRI is available (Under part of barcode)
n [Print data] = Barcode data (Fixed 17 digits)
For barcode data, refer to the GS1-128 (UCC/EAN128) code table.
EAN128 (Barcode for Standard Carton ID)
◦ Identifier of a continuous code for freight packaging
◦ Type of packaging
◦ Country/manufacturer code
◦ Serial No. for shipping container
◦ Check digit
Note that check digit is automatically added; therefore, specify data in 17 digits excluding check
digit.
[Coding Example]
Narrow bar width:05, Height of barcode:080, HRI: Available (Under part of barcode), Print
data:12345678901234567
<A>
<V>100<H>200<BI>05080212345678901234567
<Q>2
<Z>
